How to set up OIDC authentication using ADFS

This guide walks you through the configuration of Microsoft ADFS as an OIDC authentication provider for Velociraptor.

This procedure has been tested with Windows Server 2022 and ADFS 4.0
Velociraptor has been deployed using self signed certificate

ADFS OpenID Configuration can be read with https://auth.domain.local/adfs/.well-known/openid-configuration SSL certificate on ADFS is provided by Let’s Encrypt. Velociraptor Server is on velociraptor.local

setup_adfs
setup_adfs

The high-level steps of this setup process are:

  1. Deploy Velociraptor using Self Signed Certificates.
  2. Create a new Application Group in ADFS.
  3. Add the authenticator settings to your Velociraptor config.
  4. Start Velociraptor
  5. Add test users to Velociraptor.
  6. Test the authentication process.

1. Deploy Velociraptor using Self Signed Certificates

Velociraptor quickstart > https://docs.velociraptor.app/docs/deployment/quickstart/

2. Create a new Application Group in ADFS

1. Open ADFS Management

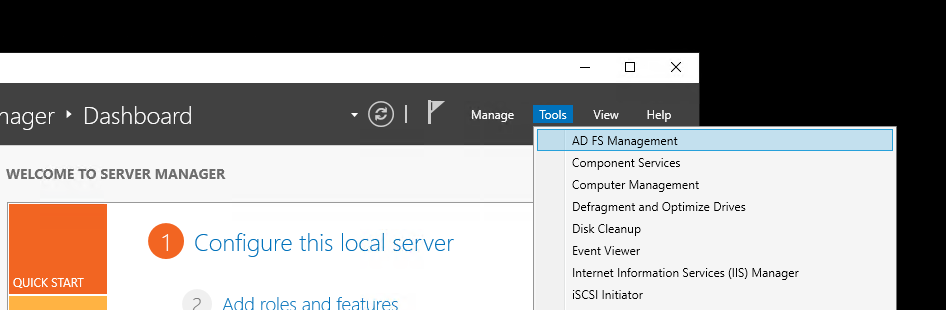

Open Server Manager > Tool > AD FS Management

2. Create a New Application Group

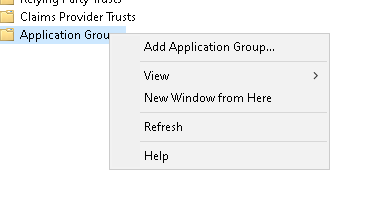

Select Application Groups and create a new one

3. Welcome

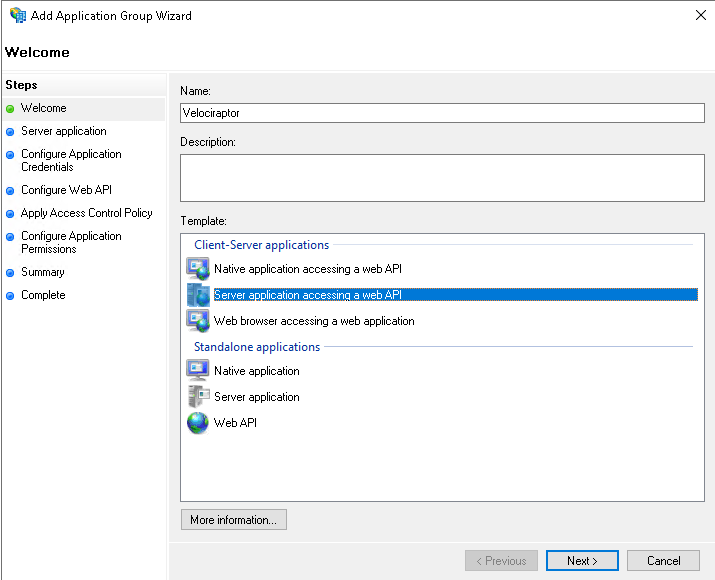

Enter a name and select Server Application accessing a web API

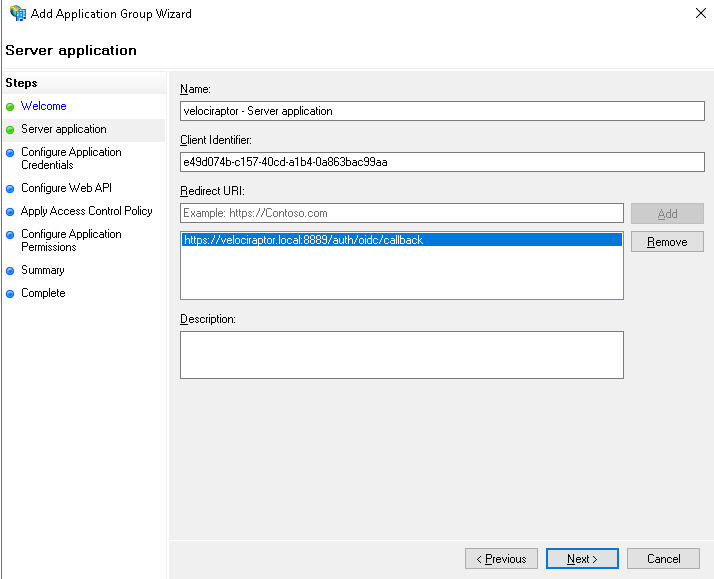

4. Server application Enter your Redirect URI : https://velociraptor.local:8889/auth/oidc/callback and add it
Save your client identifier, we will use it on velociraptor config file

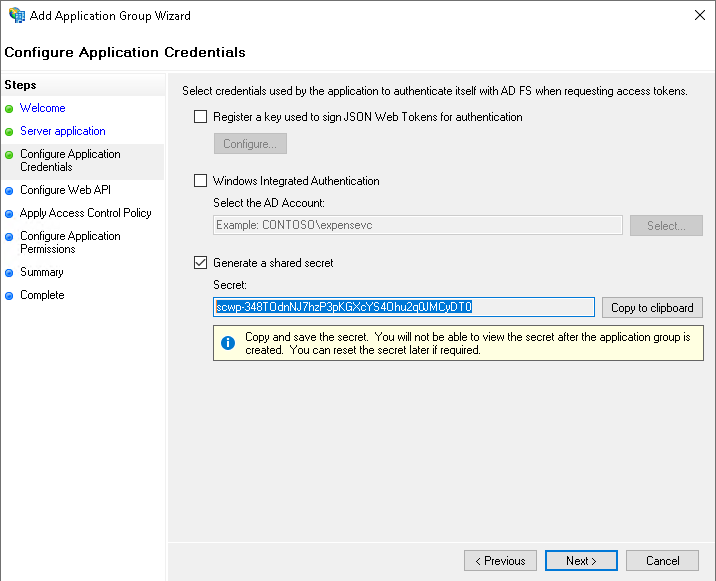

5. Configure Application Credentials Generate a shared secret and save it

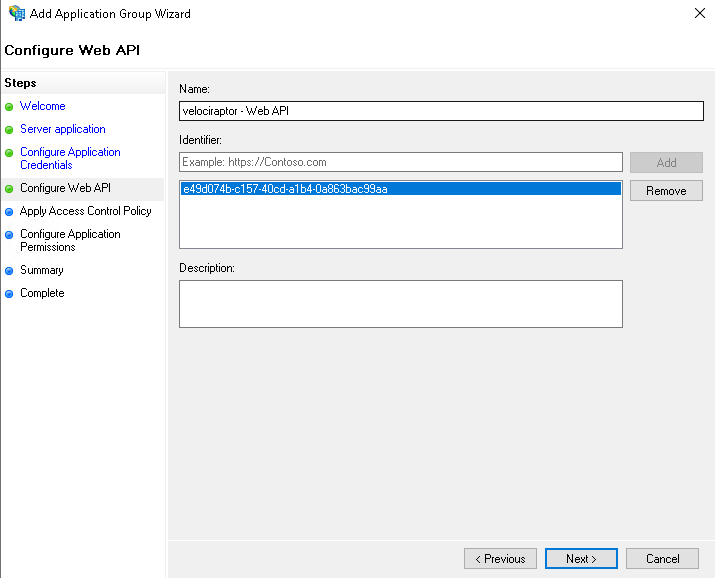

6. Configure WEB API
Enter your application identifier and add it

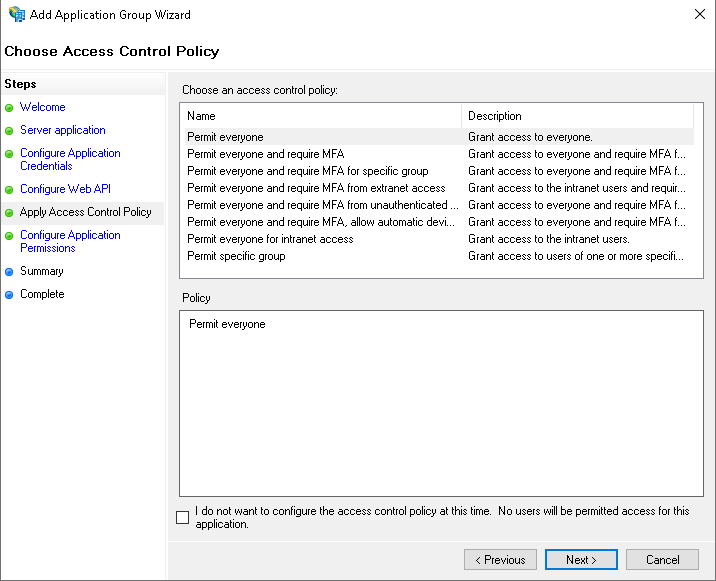

7. Access Control Policy
On next window, Choose Access Control Policy and filter as needed

8. Configure Application Permissions
Select email, openid, profile

9. Summary
Validate your summary and click Next, then complete.

3. Add the authenticator settings to your Velociraptor config

In the GUI section of your Velociraptor config you should have the following authenticator settings by default:

  authenticator:
    type: Basic

We no longer want Basic auth and instead want SSO, so replace that with these new settings to match our Keycloak configuration:

    type: oidc
    oidc_issuer: https://domain.local/adfs
    oidc_name: adfs
    oauth_client_id: e49d074b-c157-40cd-a1b4-0a863bac99aa
    oauth_client_secret: scwp-348TOdnNJ7hzP3pKGXcYS4Ohu2q0JMCyDT0
    # uncommment below if you want a full debug
    # oidc_debug: true

The oauth_client_secret is the value we obtained at the end of step 5. The oauth_client_id is the name we used for the OIDC Client ID in that same section in step 4.

4. Start Velociraptor

The server should now start cleanly and continue running. In the log messages you should see GUI will use the oidc authenticator. That means everything is OK with the authenticator config.

While configuring, testing and potentially troubleshooting problems, it’s easier if you can see Velociraptor’s log messages. You can stop the server service and then run the server manually on the command line by using the following commands:

sudo systemctl stop velociraptor_server
sudo -u velociraptor bash
velociraptor -c /etc/velociraptor/server.config.yaml frontend -v

This will display the log messages in the terminal.

5. Add Users

Even if you have added groups/users through Access Control Policy in step 7, you have to create users in Velociraptor. Users can be created using VQL in Velociraptor notebooks but since we have now switched authentication providers we no longer have access to the GUI. Of course we could have added the users before we switched but let’s pretend we didn’t and instead do it from the command line.

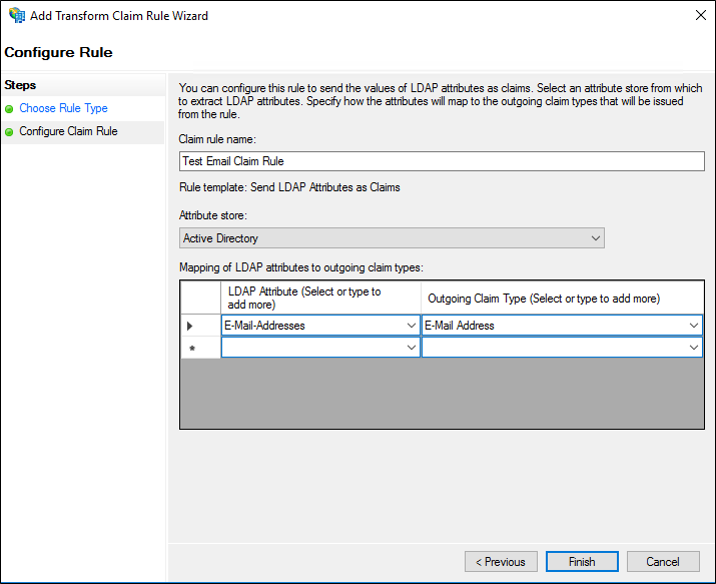

We will make bob@domain.local a server admin and grant fred@domain.local the “reader” role, which provides minimal access to Velociraptor’s GUI. Note that you have to use the user email field in Active Directory. The following two commands will create these users:

velociraptor --config server.config.yaml user add --role administrator bob@domain.local
velociraptor --config server.config.yaml user add --role reader fred@domain.local

NOTE: We provide the --config flag so that this invocation of the velociraptor binary knows which datastore to add the new users to. This can be done while the server service is running or not running, but either way the service will need to be restarted to update itself with the datastore changes.

Because of our OIDC authenticator config, when adding each user we will receive an acknowledgement message saying "Authentication will occur via oidc - therefore no password needs to be set."

6. Test authentication process

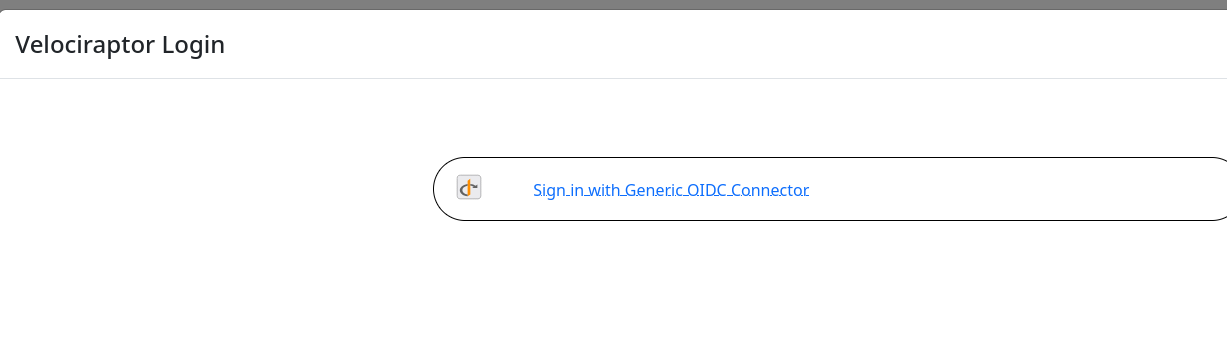

Test the authentication process by going to https://velociraptor.local:8889/

You will be presented with the choice to log in with Keycloak (multiple authentication providers are supported but we only have one configured).

Enter initial credentials using DOMAIN\bob or bob@domain.local
