How to automatically post process flows with an external program.

Sometimes we want to automatically post process a collection using an external program - for example a Python script. This short article will illustrate how to launch a python program automatically to post process a collection.

For our example we will write a Python program to post process the Generic.Client.Info artifact. As soon as the artifact is collected we want to extract the Hostname field from the BasicInformation source and greet the host with a welcome message.

1. Finding the result files in a flow.

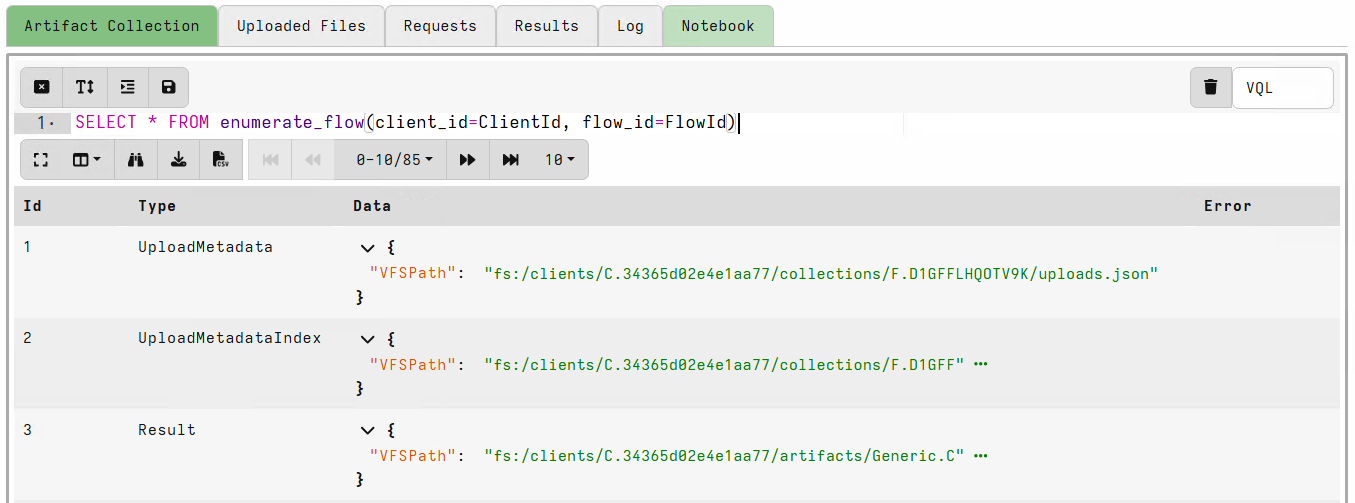

Velociraptor collects artifacts in Flows which are stored as a collection of files within the VFS. You can see all the files in a particular flow using the enumerate_flow() plugin:

SELECT * FROM enumerate_flow(client_id=ClientId, flow_id=FlowId)

You will notice that each file has a Type field and the path to the file is given using the file store path. This allows the file to be opened using the fs accessor in VQL.

However to receive the full file on disk, the file_store() function can be used.

When collecting an artifact, each source query in the artifact is stored in a single file on disk. In our case we want to know the file that contains the BasicInformation source:

SELECT file_store(path=Data.VFSPath) AS Path
FROM enumerate_flow(client_id=ClientId, flow_id=FlowId)
WHERE Type = "Result" AND Path =~ "BasicInformation"

2. Launching the Python program

Now that we can find the path to the correct file, we need to launch an external program to receive this path.

Let’s encapsulate the logic in a VQL function:

LET _GetPath(ClientId, FlowId) =
  SELECT file_store(path=Data.VFSPath) AS Path
  FROM enumerate_flow(client_id=ClientId, flow_id=FlowId)
  WHERE Type = "Result" AND Path =~ "BasicInformation"

LET GetPath(ClientId, FlowId) = _GetPath(ClientId=ClientId, FlowId=FlowId)[0].Path

SELECT *
FROM execve(argv=["python.exe", "C:/MyScript.py", GetPath(ClientId=ClientId, FlowId=FlowId)])

This query will extract the path to the BasicInformation source and launch my python script, while passing it the path to the result set.

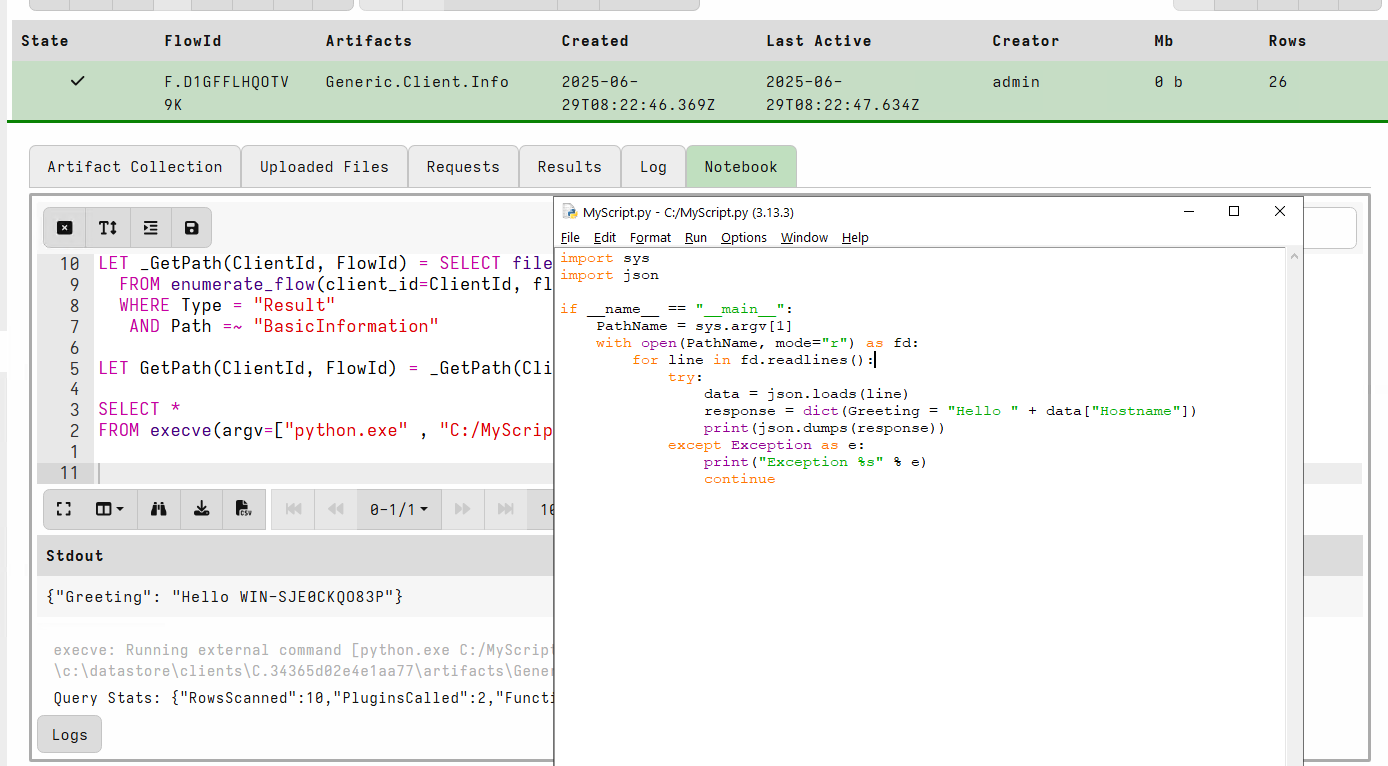

While working in a notebook I can iterate on developing my python script by recalculating the cell all the time.

My goal is to write a python script which reads the result set from disk (which is just a line separated JSON file), then extracts the Hostname column. Finally the python program will emit a JSON object per line into Stdout

import sys
import json

if __name__ == "__main__":
    PathName = sys.argv[1]
    with open(PathName, mode="r") as fd:
        for line in fd.readlines():
            try:
                data = json.loads(line)
                response = dict(Greeting = "Hello " + data["Hostname"])
                print(json.dumps(response))
            except Exception as e:
                print("Exception %s" % e)
                continue

Now that I have a python program which generates a JSON object per line, I can expand the JSON object into a row using the foreach() plugin:

LET _GetPath(ClientId, FlowId) =
  SELECT file_store(path=Data.VFSPath) AS Path
  FROM enumerate_flow(client_id=ClientId, flow_id=FlowId)
  WHERE Type = "Result" AND Path =~ "BasicInformation"

LET GetPath(ClientId, FlowId) = _GetPath(ClientId=ClientId, FlowId=FlowId)[0].Path

SELECT *
FROM foreach(row={
    SELECT parse_json(data=Stdout) AS Row
    FROM execve(argv=["python.exe", "C:/MyScript.py",
                  GetPath(ClientId=ClientId, FlowId=FlowId)])
  },
  column="Row")

3. Automating post processing.

So far I was working in a notebook, but now I want to write the artifact that will trigger it automatically. I want the server itself to monitor when a new Generic.Client.Info collection is made and automatically post process it - So I need a Server Event Monitor artifact.

When a collection is complete, the server emits a System.Flow.Completion event, which I can watch using watch_monitoring(). I can then filter collection by the artifacts they found to obtain the ClientId and FlowId.

Putting it all together:

LET Completions = SELECT FlowId, ClientId
   FROM watch_monitoring(artifact='System.Flow.Completion')
   WHERE Flow.artifacts_with_results =~ "Generic.Client.Info/BasicInformation"

LET PostProcess(ClientId, FlowId) = SELECT *
   FROM foreach(row={
      SELECT parse_json(data=Stdout) AS Row
      FROM execve(argv=["python.exe", "C:/MyScript.py",
                  GetPath(ClientId=ClientId, FlowId=FlowId)])
    },
    column="Row")

LET _GetPath(ClientId, FlowId) =
  SELECT file_store(path=Data.VFSPath) AS Path
  FROM enumerate_flow(client_id=ClientId, flow_id=FlowId)
  WHERE Type = "Result" AND Path =~ "BasicInformation"

LET GetPath(ClientId, FlowId) = _GetPath(ClientId=ClientId, FlowId=FlowId)[0].Path

SELECT * FROM foreach(row=Completions, query={
  SELECT * FROM PostProcess(ClientId=ClientId, FlowId=FlowId)
})

I can test this in a notebook and see it works!

4. Convert to an artifact and install

My Final artifact looks like this

name: Custom.BasicInformation.EnrichPython
type: SERVER_EVENT
sources:
  - query: |
        LET Completions = SELECT FlowId,
                                 ClientId
          FROM watch_monitoring(artifact='System.Flow.Completion')
          WHERE Flow.artifacts_with_results =~ "Generic.Client.Info/BasicInformation"

        LET PostProcess(ClientId, FlowId) = SELECT *
          FROM foreach(row={
            SELECT parse_json(data=Stdout) AS Row
            FROM execve(argv=["python.exe", "C:/MyScript.py",
                          GetPath(ClientId=ClientId, FlowId=FlowId)])
          },
                       column="Row")

        LET _GetPath(ClientId, FlowId) = SELECT file_store(path=Data.VFSPath) AS Path
          FROM enumerate_flow(client_id=ClientId, flow_id=FlowId)
          WHERE Type = "Result"
           AND Path =~ "BasicInformation"

        LET GetPath(ClientId, FlowId) = _GetPath(ClientId=ClientId, FlowId=FlowId)[0].Path

        SELECT *
        FROM foreach(row=Completions,
                     query={
            SELECT *
            FROM PostProcess(ClientId=ClientId, FlowId=FlowId)
          })

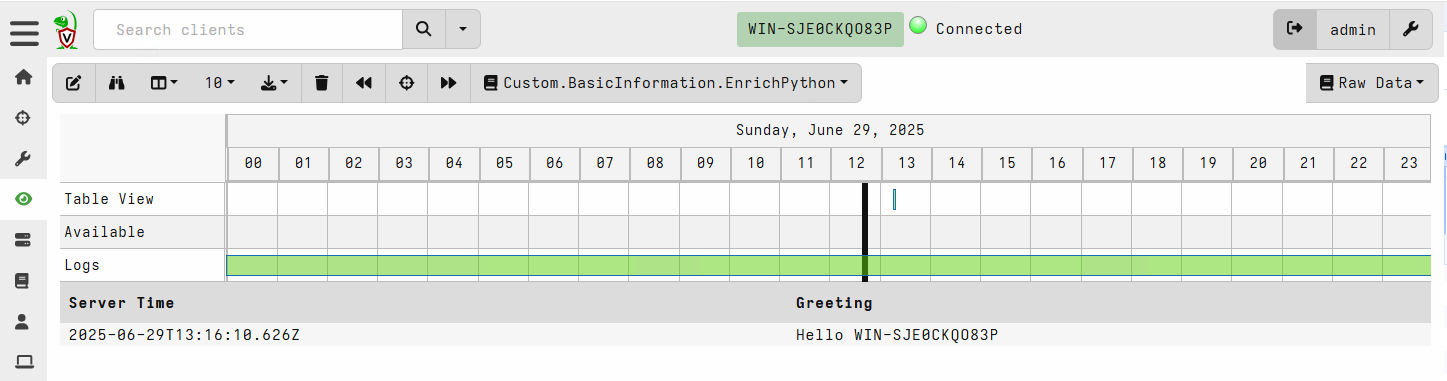

I can add it and install it as a server event monitor. Then each time I collect Generic.Client.Info the artifact will automatically post process the results.

This quick example shows how to automatically post process collections with external programs. You need to be able to shell out to the external program which will run on the server. We used Python in this example just for illustration purposes but you can use any language to write the external program.

You can also use watch_monitoring() with the name of the new artifact to watch for post processed results as well! … We need to go deeper! - for example use Elastic.Events.Upload to upload those to Elastic.
