Manipulating VQL columns and rows

VQL has a very simple syntax inspired by SQL. At the heart of the language is a SELECT query which returns a set of Rows. A VQL Row consists of Columns and Cell Values.

You can think of the result of a query is simply a list of Dicts - where a dict contains key/value pairs. This is easiest to see in the GUI’s Raw JSON view:

SELECT * FROM info()

This returns a JSON result containing a list of JSON objects, each representing a single row (in this case only one row is returned):

[
  {
    "Hostname": "WIN-SJE0CKQO83P",
    "Uptime": 776266,
    "BootTime": 1758078331,
    "OS": "windows",
    "Platform": "Microsoft Windows Server 2022 Standard Evaluation",
    "PlatformFamily": "Server",
    "PlatformVersion": "21H2",
    "KernelVersion": "10.0.20348.4052 Build 20348.4052",
    "VirtualizationSystem": "",
    "VirtualizationRole": "",
    "CompilerVersion": "go1.24.7",
    "HostID": "6b65a0af-a752-429a-a65c-83367f882ebe",
    "Exe": "c:\\velociraptor.exe",
    "CWD": "C:\\Users\\Administrator",
    "IsAdmin": true,
    "ClientStart": "2025-09-23T04:12:06.2778472Z",
    "LocalTZ": "PDT",
    "LocalTZOffset": -25200,
    "Fqdn": "WIN-SJE0CKQO83P",
    "Architecture": "amd64"
  }
]

We can select specific columns in this using the Column Specifiers following the SELECT clause:

SELECT Hostname FROM info()

However, what if we wanted to automatically manipulate the columns in a more sophisticated way? This is often needed when we dont know the names of all the columns in advance.

Some use cases are:

  1. If we do not know the names of the columns in advance but wanted to select only some columns by e.g. a Regular Expression?

  2. We want to generate a hash based on a selection of columns?

This post shows how to convert any VQL query into a list of dicts, thereby providing access to the Columns in a more convenient way. We then show how to deconstruct the dict back into a row.

For the following examples, we use the query SELECT * FROM info() as a substitute for any other query. Typically these techniques are more useful for generic queries for which we dont know the types of columns returned. For example SELECT * FROM source(), SELECT * FROM parse_csv() etc.

Step 1: Convert rows into dicts

In order to deal with a row as a dict we need to use the items() plugin:

SELECT * FROM items(item={ SELECT * FROM info() })

[
  {
      "_key": 0,
      "_value": {
          "Hostname": "WIN-SJE0CKQO83P",
              ...
          "Architecture": "amd64"
      }
  }
]

When the items() plugin operates on another query, it emits two columns:

  • _key is a counter of row number
  • _value is the entire row given as a dict.

Once we have the row as a dict, we can manipulate it easily using a number of dict manipulation tools.

Step 2: Perform operations on the row dict.

Now that we have the row as a dict we can perform any operations on it. In the following we see two methods for manipulating dicts:

  1. Set operations: allow us to add, remove and merge dicts based on their keys. See Set operations .

  2. Dict reconstruction: is a more powerful technique for tearing the dict apart and reconstructing it again.

Example: Select only columns that match a regular expression.

For this example, assume we dont know all the exact columns in advance but want to match columns based on some regular expression.

The key for this is to transform a dict’s columns based on a regular expression: We need to iterate over all the keys in the dict , only including some keys based on their name, and then put it back together into a dict:

LET FilterKeys(Dict) = to_dict(item={
  SELECT * FROM items(item=Dict)
    WHERE _key =~ "Host|Arch"
})

SELECT _key, FilterKeys(Dict=_value) AS _value
FROM items(item={ SELECT * FROM info() })

To make the filtering operation simpler to understand and reuse, I extracted it into a VQL function. The FilterKeys function builds a new dict using the to_dict() function based on a query. The query we use uses the items() plugin again. But this time, since it is operating on a dict, the plugin iterates over the dict’s keys and values as the _key and _value columns.

For this example, we just remove the keys that do not match the regular expression Host|Arch. This results in a smaller dict with only keys matching the regular expression:

[
  {
    "_key": 0,
    "_value": {
        "Hostname": "WIN-SJE0CKQO83P",
        "HostID": "6b65a0af-a752-429a-a65c-83367f882ebe",
        "Architecture": "amd64"
    }
  }
]

Example: Hash a subset of columns

For this example, suppose we have a set of columns that we consider to be a representative of the row and we want to generate a hash based on those. This technique allows us to tag similar rows with a unique representative ID.

For our example we want to create another dict with the columns Hostname, Exe and Architecture. We consider those columns to be fully representative of the row. I.e. we accept that other columns may vary but as long as those fields are the same, we consider the rows to be duplicates.

We can quickly extract only those fields by use of Set intersection (In VQL this is implemented by dict multiplication):

LET FingerPrint <= dict(Hostname=TRUE, Exe=TRUE, Architecture=TRUE)

SELECT _key, _value * FingerPrint AS _value
FROM items(item={
    SELECT * FROM info()
})

[
  {
    "_key": 0,
    "_value": {
        "Hostname": "WIN-SJE0CKQO83P",
        "Exe": "c:\\velociraptor.exe",
        "Architecture": "amd64"
    }
  }
]

Now we produce a hash of these fields by serializing the dict into a JSON object. This hash will be the same for every row with the same set of values for these specific fields:

SELECT _key,
    hash(accessor="data", path=serialize(item=_value * FingerPrint) ).MD5 AS _value
FROM items(item={
    SELECT * FROM info()
})

Similarly we can use dict subtraction to remove fields from the dict (e.g. a timestamp field may change all the time so we may want to remove it).

Now in this example, I will add the new hash into the row dict as an additional field:

SELECT _key,
       _value + dict(
         _HashID=hash(accessor="data",
                      path=serialize(item=_value * FingerPrint)).MD5) AS _value
FROM items(item={
    SELECT * FROM info()
})

This works using dict addition. I create a new dict with a single key of _HashID containing the hash I got earlier. By adding this new dict to the original row dict, I get a new dict with an additional key.

[
  {
    "_key": 0,
    "_value": {
        "Hostname": "WIN-SJE0CKQO83P",
        "Architecture": "amd64",
            ....
        "_HashID": "ae7b6e78e5fce4b5e18d371be5916472"
    }
  }
]

Step 3: Turn a dict back into a row

The final step is to turn our dict back into a regular VQL Row. This will allow it to be viewed nicely in the GUI as a regular table. The dict keys will turn back into column headers, and the values will be table cells.

This operation is done using the foreach() plugin with the parameter column:

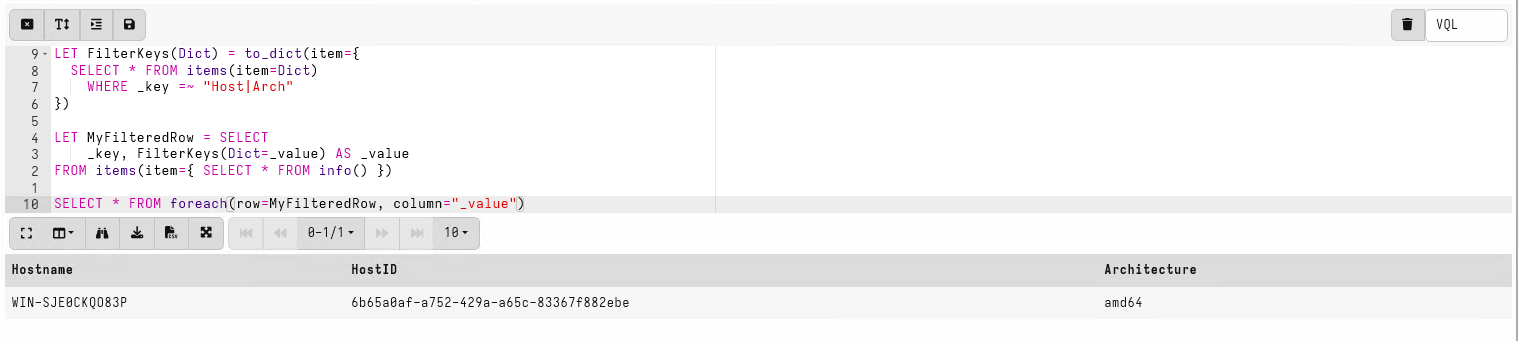

LET MyFilteredRow = SELECT
    _key, FilterKeys(Dict=_value) AS _value
FROM items(item={ SELECT * FROM info() })

SELECT * FROM foreach(row=MyFilteredRow, column="_value")

To enhance readability, I converted the previous query into a stored query by naming it MyFilteredRow, then I can just use it as an argument to the foreach() plugin. The column parameter tells the foreach() plugin to extract the dict found in the column _value into the row itself (with other columns ignored).
