Managing artifacts from VQL

The Velociraptor server maintains an internal artifact repository that includes both built-in and custom artifacts.

On server startup, all compiled-in artifacts are loaded from the binary and additional artifacts are loaded from several possible locations . Artifacts loaded from these locations are deemed “built-in” and cannot be modified or deleted during runtime. Only custom artifacts loaded from the datastore can be modified or deleted.

Working with the internal artifact repository in VQL

Most often artifacts are viewed and managed in the GUI’s “View Artifact” screen , however artifacts can also be managed from VQL using the plugins and functions described in this section. Since the artifacts repository is maintained on the server, these VQL functions and plugins can only be used on the server - that is, in server artifacts or notebooks.

LET OtherOrgId <= "OCDC0"
LET OtherUser <= "fred"
SELECT name
FROM query(query={ SELECT * FROM artifact_definitions()
                   WHERE built_in = FALSE },
           org_id=OtherOrgId,
           runas=OtherUser)

Viewing and Listing Artifacts

You can view all known artifacts in the current org using the artifact_definitions plugin. This plugin returns artifacts in their parsed form, which means you can easily filter the results using WHERE clauses against the many available artifact fields.

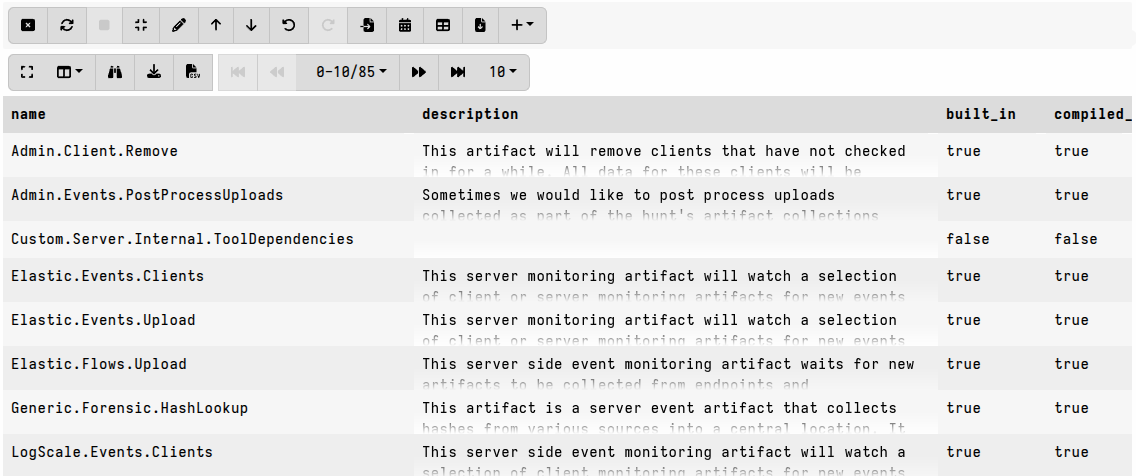

For example, with this query we can see all SERVER type artifacts, and also see whether or not they are considered built-in :

SELECT name, description, built_in, compiled_in
FROM artifact_definitions() WHERE type =~ "server"

If an artifact is dependent on other artifacts then you can include those in your results by using the deps=TRUE arg.

For example:

SELECT * FROM artifact_definitions(names="Windows.Sysinternals.Autoruns", deps=TRUE)

will also show the Generic.Utils.FetchBinary artifact.

Artifacts are available in their original YAML form in the raw field, for example:

LET ColumnTypes<=dict(`raw`='nobreak')
SELECT name, raw FROM artifact_definitions(names="Windows.Sysinternals.Autoruns")

Creating and Modifying Custom Artifacts

The artifact_set function is used to create a custom artifact in the artifact repository.

While the artifact YAML can be read from a file using the read_file function, it is preferable to add artifacts from the filesystem using one of the supported loading mechanisms . These allow you to add artifacts in bulk from specified locations.

It is therefore more common to see the artifact_set function used with artifacts added from network locations, typically using the http_client plugin. For example:

SELECT artifact_set(prefix="Custom.", definition=Content) FROM http_client(url=...

It is also commonly used to add multiple artifacts from a zip file that has been downloaded to the server using http_client. The artifact Server.Import.ArtifactExchange provides a good example utilizing this approach.

When you add custom artifacts using artifact_set they are written to the server’s datastore. See How artifact names translate to file and folder structure on disk for more information.

If a custom artifact with the same name exists in the datastore then artifact_set will overwrite it without warning. This allows you to update custom artifacts via VQL.

Artifact Metadata

Artifacts in the repository have a metadata field, which currently supports 2 special boolean attributes: hidden and basic. By default all artifacts, including those created during runtime, have these attributes set to false That is they are not hidden and not “basic”, by default.

The hidden attribute controls the artifact’s visibility in the GUI. This is explained in detail here .

The basic attribute is used to designate artifacts that can be collected by users who have only the COLLECT_BASIC (Collect Basic Client) permission. Such low-privilege users can only collect these specially designated artifacts. This is explained in more detail here .

These attributes are set using the artifact_set_metadata function.

For example:

SELECT name, metadata AS OldMetadata, artifact_set_metadata(name=name, hidden=TRUE)
FROM artifact_definitions() WHERE type =~ "internal" OR name =~ "internal"

will hide all “internal” type artifacts from the GUI.

The hidden artifacts are of course still there, and you can verify this by querying the metadata across all artifacts:

SELECT name, metadata FROM artifact_definitions() WHERE metadata.hidden

Deleting Artifacts

The artifact_delete function is used to delete artifacts. Only custom artifacts in the server’s datastore can be deleted.

Artifacts loaded during startup, from locations other than the artifact_definitions folder in the server’s datastore, are considered “built-in” and cannot be deleted. If you need to delete such artifacts then you should manually remove the corresponding YAML documents from their source locations, and then restart the server.
