Network Communications Issues

Debugging client communications

If the client does not appear to properly connect to the server, the first thing is to run it manually (using the velociraptor --config client.config.yaml client -v command):

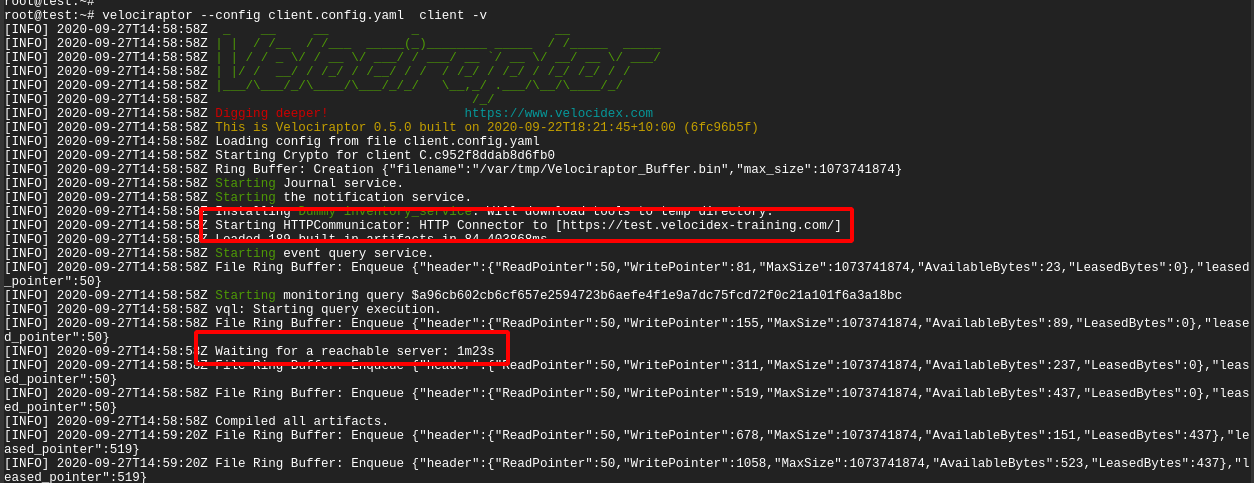

Running the client manually
Running the client manually

In the above example, I ran the client manually with the -v switch. I see the client starting up and immediately trying to connect to its URL (in this case https://test.velocidex-training.com/) However this fails and the client will wait for a short time before retrying to connect again.

A common problem here is network filtering making it impossible to reach the server. You can test this by simply running curl with the server’s URL.

Once you enable connectivity, you might encounter another problem

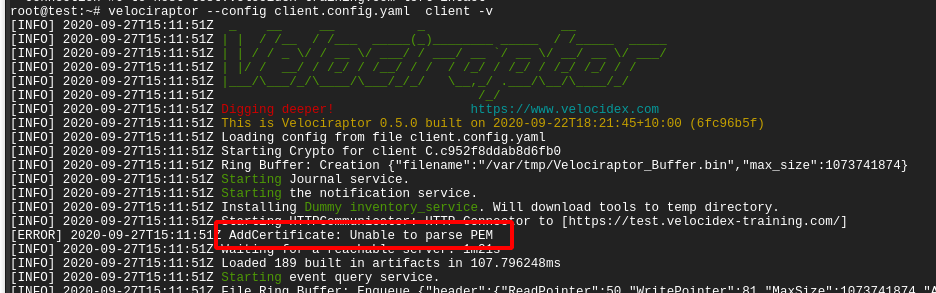

Captive portal interception
Captive portal interception

The Unable to parse PEM message indicates that the client is trying to fetch the server.pem file but it is not able to validate it. This often happens with captive portal type of proxies which interfere with the data transferred. It can also happen if your DNS setting point to a completely different server.

We can verify the server.pem manually by using curl (note that when using self-signed mode you might need to provide curl with the -k flag to ignore the certificate errors):

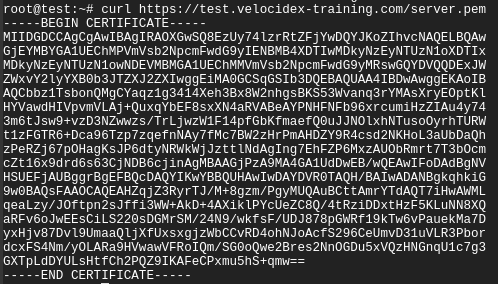

Fetching the server certificate
Fetching the server certificate

Note that the server.pem is always signed by the velociraptor internal CA in all deployment modes (even with lets encrypt). You can view the certificate details by using openssl:

curl https://test.velocidex-training.com/server.pem | openssl x509 -text

If your server certificate has expired, the client will refuse to connect to it. To reissue the server certificate simply recreate the server configuration file (after suitably backing up the previous config file):

velociraptor config reissue_certs --validity 365 --config server.config.yaml > new_server.config.yaml

Depending on which user invoked the Velociraptor binary, you may need to alter the permissions of the new server configuration file.

For example:

chmod 600 new_server.config.yaml
chown velociraptor:velociraptor new_server.config.yaml

From here, you will need to move the updated server configuration into the appropriate location.

The above step was able to use the internal Velociraptor CA to reissue the server certificate (which is normally issued for 1 year), allowing us to rotate the certificate.

Currently there is no way to update the CA certificate without redeploying new clients (the CA certificate is embedded in the client config file). When generating the config file initially, the CA certificate is created with a 10 year validity.
