Client Deployment Issues

Client fails to connect to server

Velociraptor clients will start even if there are issues with the configuration. This is by design since a new or updated configuration may be delivered via separate management tools after the client is installed. For example, the official MSI does not contain a valid configuration but users may want to nevertheless use it to install the client and then supply the configuration as a second step.

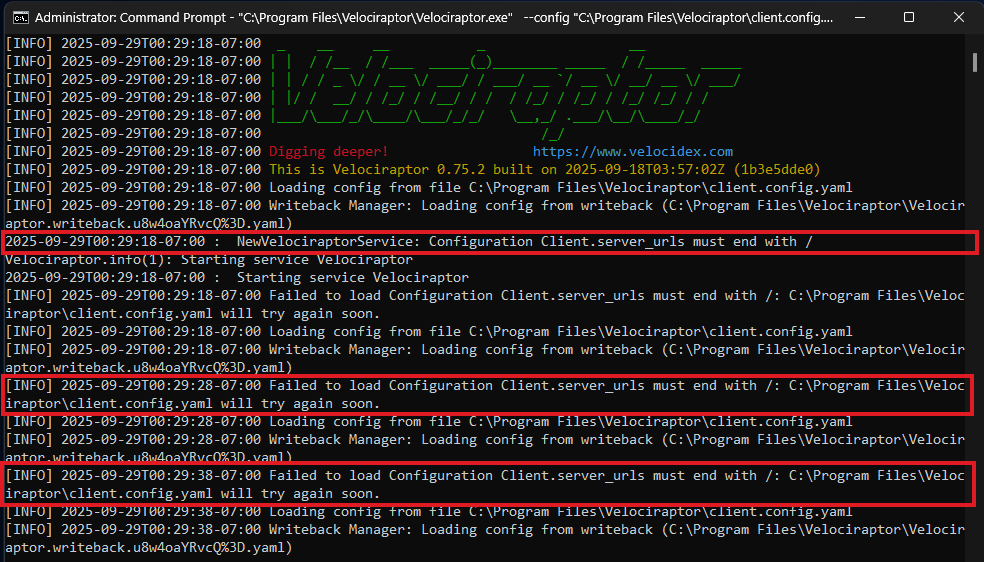

If there are configuration problems then the client will log error messages to Stderr and will continue to re-read the config file periodically in case it changes. However when installed as a service these messages are not visible to the user, and service status commands (e.g. sc query velociraptor) will report the service as “running” even though the client is not fully started and not connecting to the server.

Running the client in a terminal

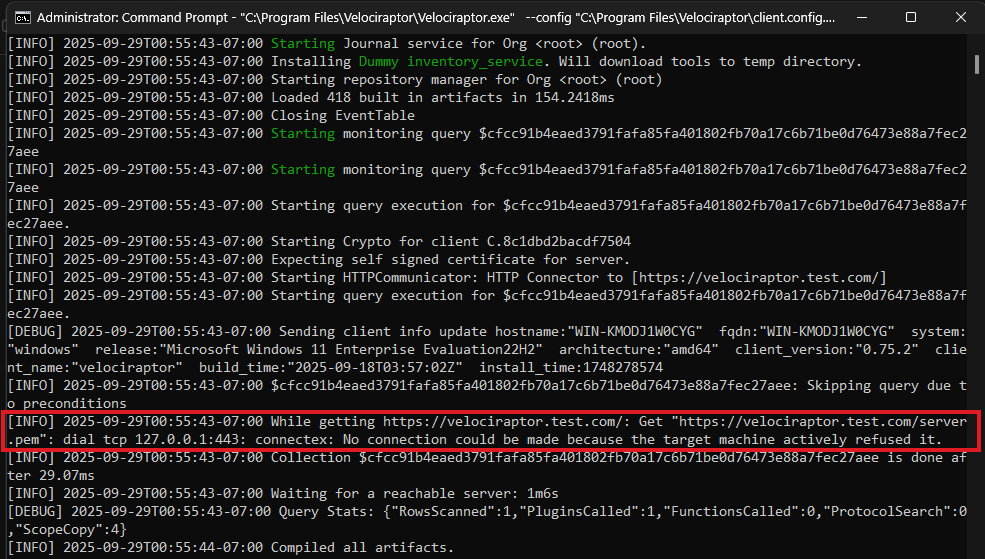

You can try to start the client manually in a terminal with the -v (verbose) flag to see if it reports any errors or issues.

If installed as a service you should stop the service before starting the client manually.

sc.exe stop velociraptor
"C:\Program Files\Velociraptor\Velociraptor.exe"  --config "C:\Program Files\Velociraptor\client.config.yaml" service run -v

sudo launchctl unload /Library/LaunchDaemons/com.velocidex.velociraptor.plist
sudo /usr/local/sbin/velociraptor client --config /usr/local/sbin/velociraptor.config.yaml -v

sudo systemctl stop velociraptor_client.service
/usr/local/bin/velociraptor_client --config /etc/velociraptor/client.config.yaml client -v

Test that the server is reachable on the expected port

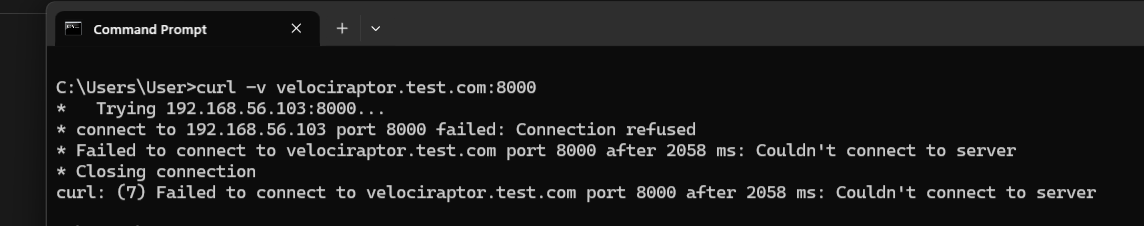

If running the client in a terminal indicates a problem connecting to the server then you can test the connection using curl:

Note that it is important that you specify the server’s Frontend port, as this is the port that the client connects to.

If you encounter client-server connectivity issues when deploying your first client then it’s possible that there’s a misconfiguration on the server. In that case it’s best to confirm that the Frontend port is reachable locally on the server before testing from remote hosts. The testing steps would be similar to those described here for testing access to the server GUI.

Certificate retrieval and validation issues

If connectivity succeeds, you might still encounter other problems related to certificate retrieval or validation.

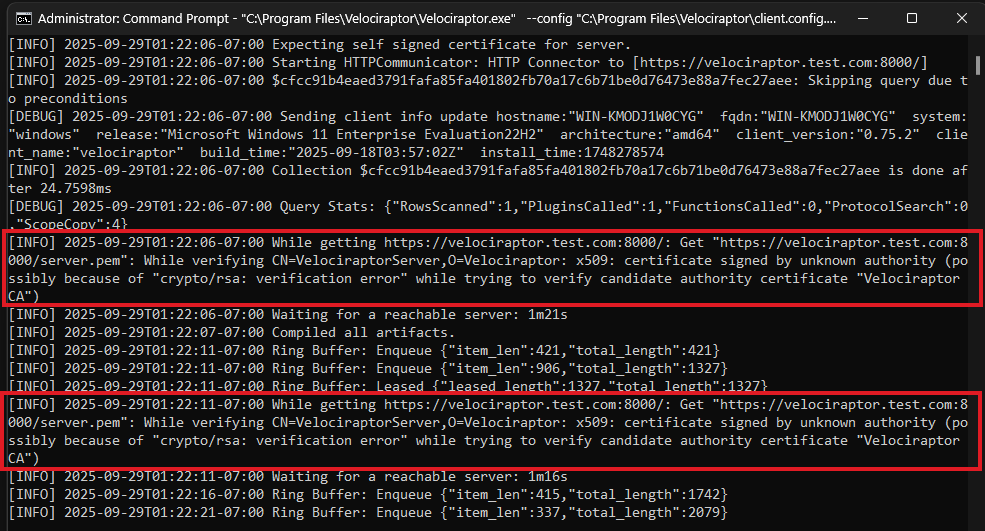

The error message above indicates that the client is able to fetch the server.pem file but that it is not able to validate it. This often happens with captive portal type of proxies which interfere with the data transferred. It can also happen if your DNS settings point to a completely different server.

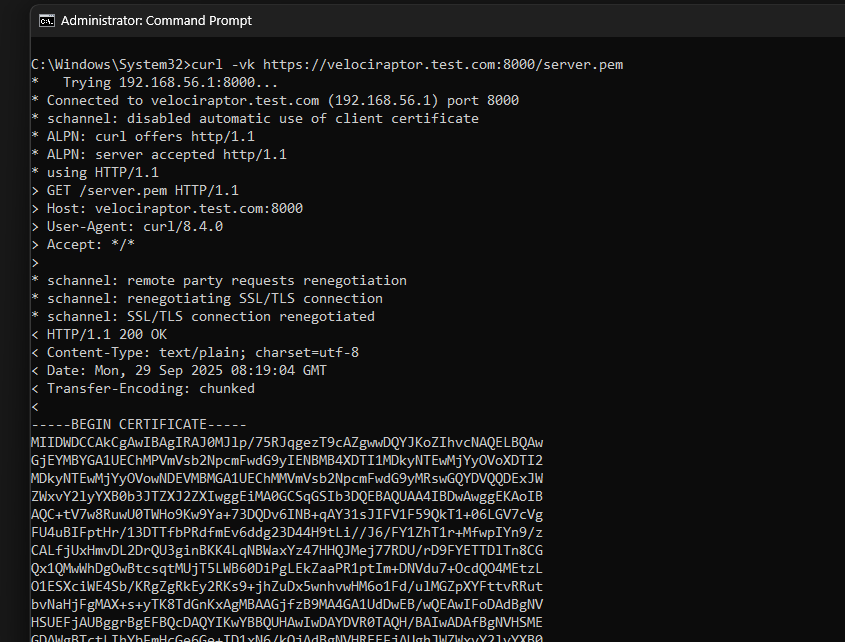

We can verify the server.pem manually by using curl (note that when using self-signed mode you might need to provide curl with the -k flag to ignore the certificate errors):

Note that the server.pem is always signed by the velociraptor internal CA in all deployment modes (even with Let’s Encrypt).

You can view the certificate details by using openssl, for example:

curl -k https://velociraptor.test.com:8000/server.pem | openssl x509 -text

If your server certificate has expired, the client will refuse to connect to it. To reissue the server certificate simply recreate the server configuration file (after suitably backing up the previous config file):

velociraptor config reissue_certs --validity 365 --config server.config.yaml > new_server.config.yaml

Depending on which user invoked the Velociraptor binary, you may need to alter the permissions of the new server configuration file.

For example:

chmod 600 new_server.config.yaml
chown velociraptor:velociraptor new_server.config.yaml

From here, you will need to move the updated server configuration into the appropriate location.

Debugging

For debugging more advanced issues the client provides a Debug Console, which is a local web-based UI that exposes many aspects of the clients internal operations. The Debug Console is not enabled by default on clients.

To learn how to enable and access it please see Starting the Debug Console on clients .
