VFS Uploads

In Velociraptor, the Virtual File System (VFS) browser provides a server-side cached view of an endpoint’s filesystem. Unlike a traditional network mount, the VFS is actually a server-side cache that presents a snapshot of the files and directories collected from the client. Because it is a cache, you can browse previously collected directory structures and files even when the endpoint is offline.

In the VFS browser there are two main operations:

• Generating directory listings of the client’s filesystem.
• Uploading files from the client, individually or in bulk.

The VFS browser also supports Windows registry access, but here we are only discussing operations on the conventional filesystem. Registry access is functionally identical to filesystem access and we essentially treat the registry as just another filesystem (which it arguably is), with registry values being treated as files. This means that all the filesystem operations discussed here can also be applied to the Windows registry.

Uploading a single file

Before you can upload a file, you need to navigate to its directory in the VFS tree. To do this, you enumerate the filesystem contents using the Refresh this directory button in the VFS browser. You can repeat this step to incrementally navigate deeper into the filesystem tree. There is also a button to enumerate the filesystem recursively, but that will take longer and could be unnecessary if you are only interested in a specific directory’s contents.

To upload a file from an endpoint into the VFS cache, you click the Collect from the client button within the VFS interface.

• Clicking this button initiates a collection on the endpoint using the System.VFS.DownloadFile artifact. This artifact uses the upload() VQL function to transfer files from the client to the server.

• The client divides large files into chunks and pushes them to the server via HTTP POST messages over a persistent communication channel.

• Once successfully received, the server stores the file in its filestore, and a floppy disk icon appears next to the filename in the VFS view to indicate a local copy is now available for inspection. Files that have been successfully cached on the server are marked with a floppy disk icon in the GUI.

• Files are stored (compressed by default since v0.75) in the server’s filestore, but can be exported for external analysis. When exporting files, the native compression is removed.

In addition to collecting individual files, you can also upload an entire directory, including subdirectories, to the server in a single System.VFS.DownloadFile collection, as explained in the next section.

Recursively collecting directories

You can recursively sync (that is, upload) an entire directory to the VFS cache, although this may result in transferring large volumes of data. Use this feature sparingly, and only after carefully considering the potential impact of this action.

1. To do this, you first enumerate the filesystem contents using the Refresh this directory button in the VFS browser. You can repeat this step to incrementally navigate deeper into the filesystem tree. There is also a button to enumerate the filesystem recursively, but that will take longer and could be unnecessary if you are only interested in a specific directory’s contents.

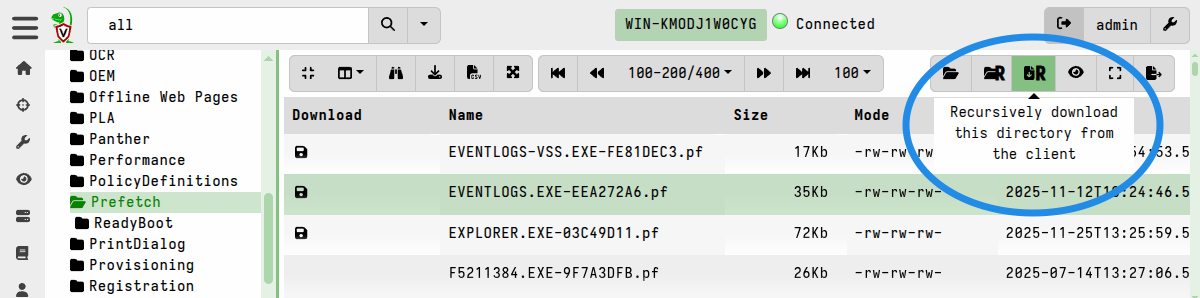

2. Once you have navigated to a point in the directory structure where you want to start the recursive collection, click the “Recursively download this directory from the client” button.



   Initiating this action will display a warning message to confirm the action that it will take.



Re-collecting files

It’s possible that the directories or files might have changed on the endpoint since you last enumerated the directories or uploaded the files. When you are using the VFS browser you are actually working with data that the server already has, that is you are working with the server’s VFS cache. Although it presents a view of the endpoint’s filesystem, it is not a live view.

If the file is likely to have changed since you collected it, for example in the case of log files, then you can fetch the file again using the Re-collect from the client button.

Similarly, you may need to refresh the directories if you have reason to suspect that they might have changed since your last collection.

You can also perform another recursive sync to re-collect all files in a directory, but be aware that this results in duplicate files being stored on the server. Although the VFS browser always presents you with the latest collected copy of any file, the filestore also retains all previously collected copies. This may be useful if your intention is to capture point-in-time copies of certain files, but if used carelessly it can result in a lot of wasted disk space on the server.

Inspecting collected files in the GUI

Once cached, you can inspect collected files directly in the GUI using its built-in File Inspector viewer, which allows you to view the file contents as hex or plaintext, view file metadata, and perform basic operation such as search on the file data.

To open the File Inspector, select a file and then click the Preview link which you’ll find under its Properties tab.

Because you are inspecting a server-side copy of the file, you can do this regardless of whether the client is online or not. Similarly for exporting these files, as we’ll explain next, the client’s online status is irrelevant.

Exporting collected files

In the VFS browser, you can download the collected files from the server’s filestore to your local workstation. You might want to do this for external analysis or other purposes.

You can download files individually or export them in bulk.

Password-protecting downloads

For additional safety during file-handling, and to prevent your local antivirus from accidentally quarantining potential malware, you can set a downloads password in your user preferences . This ensures that any files exported from the VFS or anywhere else in the GUI are encrypted and thereby made safe for transit to your analysis environment.

When a download password is set, all prepared downloads (i.e. bulk exports) and single-file downloads will be zipped and password-protected. To unset this behavior, clear the download password in your user preferences.

Downloading files individually

A single file can be downloaded using the button that’s located alongside Last Collected, or by right-clicking on any table row that has a floppy disk icon.

The timestamp displayed on the download button serves as a reminder that you will be downloading the file as it was at the time it was collected. If you have reason to think that the file might have changed then you may decide to re-collect it so that you have an up to date copy in the VFS cache.

Exporting files in bulk

The process of exporting files in bulk always involves two steps, and optionally a third step if you want to download all the files at once.

1. Prepare the download by clicking the Prepare Download button.

   This copies all files in the target folder (by default, the currently selected directory in the VFS tree, and its subdirectories) into a single flow using the System.VFS.Export server artifact. You can specify your own glob pattern if you want the export to only include certain files, or if you don’t want to include subdirectories (in which case the glob pattern should be /*). Only files which are cached in the server’s filestore will be included - it does not initiate any new file uploads from the client.

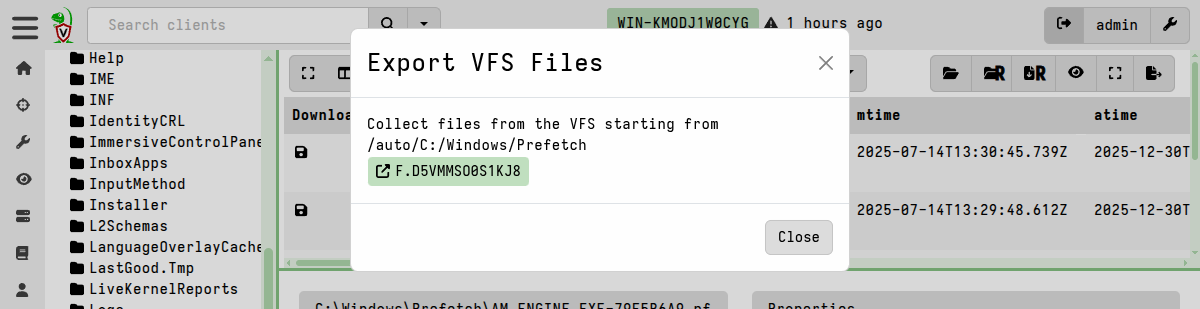

2. The “Prepare Download” action creates a new server collection which copies the targeted files. It then displays a link to the flow. Click on it to view the flow.

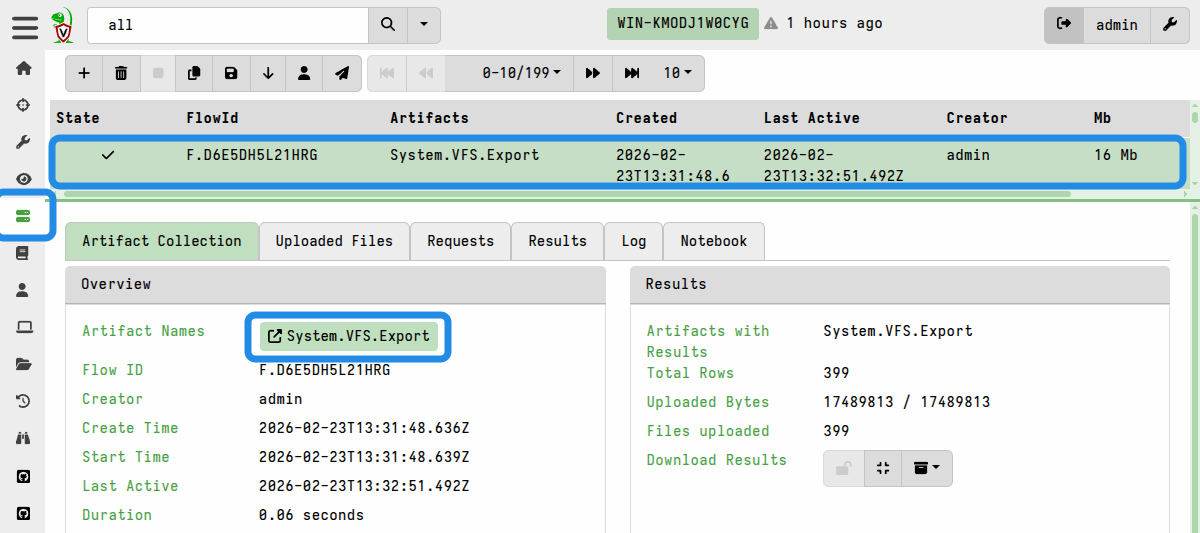

   Since the export creation process is implemented as a server collection, you can also find it by navigating to the collection listings on the Server Artifacts screen. This is useful if you decide to navigate away to do something else in the GUI and come back to the prepared download later.



   There are two ways to download the files from this newly-created collection:

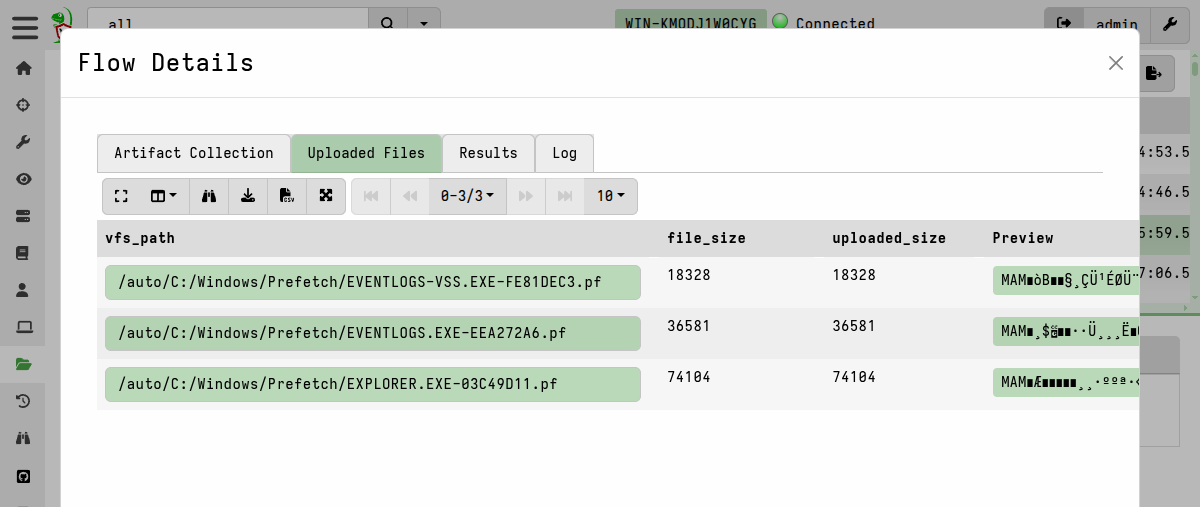

   • Files can be individually downloaded from the flow’s Uploaded Files tab.

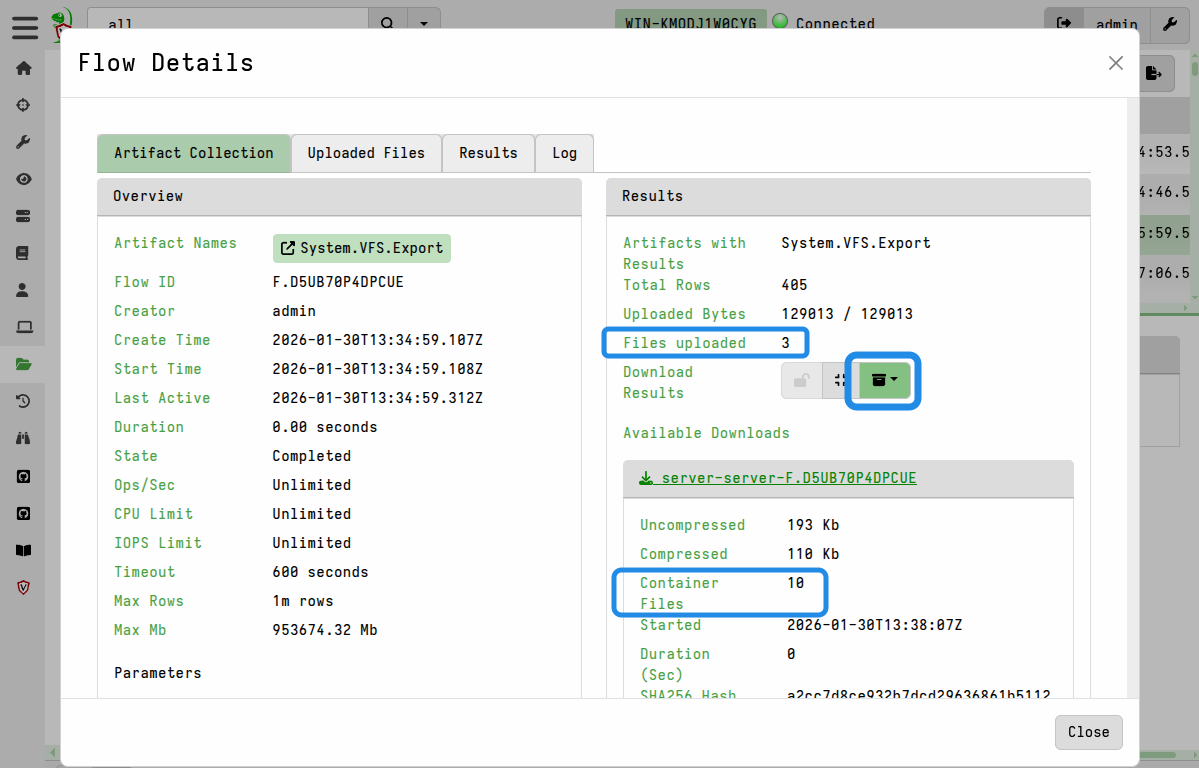

   • or they can all be packaged into a single downloadable zip container using the Download Results button on the flow’s Artifact Collection tab. This option is explained in more detail in Exporting Files



Advanced Options

Setting resource limits

Since the VFS file upload actions are implemented as artifact collections under the hood, they are subject to the default collection limits - the most relevant to VFS uploads being a 1 GB size limit and a 10 minute timeout.

If a VFS collection times out or fails due to reaching the default limits, you can re-run the collection with increased limits: navigate to the client’s collections list and copy the failed collection, but increase the resource limits before launching it.

Resource limits are explained in more detail here and here .

Enabling resumable uploads for VFS collections

By default, this resumable uploads are not enabled for the System.VFS.DownloadFile artifact which is the underlying file collection artifact used in the VFS browser interface.

If a VFS file transfer fails, you can retry it with the resumable upload option enabled. To do this:

1. go to the client’s collections list
2. copy the failed collection
3. enable the UPLOAD_IS_RESUMABLE parameter on the Configure Parameters screen
4. (re)launch the collection.

As discussed here , resumable uploads are only suited to certain situations which is why the feature is not enabled by default.
