Running Offline Collectors

Offline collectors can be deployed by automated means, for example via Windows Group Policy - similar to the agentless deployment method - or by other deployment tools (such as PsExec or WinRM), or even other EDR solutions. It’s also quite common to have local personnel run the collector manually on the endpoints, especially during incidents where network access is restricted.

When the collector is run without command line arguments, the collection will automatically start. If any command line arguments are provided then it behaves as any ordinary Velociraptor binary would, with the collector behaviour being bypassed.

Collectors built using the GUI-based collector builder will require admin-level privileges on all platforms (this check gets added by the inclusion of the --require_admin flag in the collector config), so they are usually launched from an elevated command shell.

On Windows they can also be launched by right-clicking and choosing “Run as administrator”, although the collector is a console application so it will still run in the default terminal. In certain circumstances it is possible to use the runas command on Windows, or sudo in very recent versions of Windows, to launch the collector from an unprivileged command shell.

On macOS and Linux you can launch the collector in an elevated terminal, but it’s more often done in a non-elevated terminal using the sudo command. On macOS or Linux you should also remember to mark the collector file as executable using the chmod command.

If you use another management solution to deploy your offline collectors then it also needs to ensure that they are launched with admin-level privileges.

The collector creates a zip (collection container) file containing the collection results, and optionally also files that you may have requested to be copied from the filesystem. It also creates a log file alongside the collection container, using the same file basename, which contains a copy of the collector activity as displayed in the terminal.

Collector behaviour when admin is required

As mentioned above, this requirement is the default for offline collectors. When the collector is launched on the endpoint, it first checks if the user running it has admin-level privileges.

• Insufficient privilege scenarios

  If the user doesn’t have admin privilege and tries to launch a collector that requires it, the following outcomes should be expected:

  • Windows

    • When opened using Explorer via mouse actions it will briefly opens in a terminal and then close. This is likely to occur too quickly for the user to be able to read the error message.

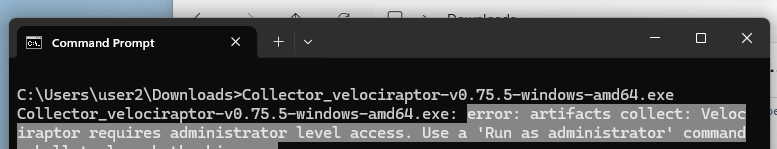

    • When run in a terminal (Command Prompt or PowerShell), it will display an error message telling the user to “Run as administrator”.

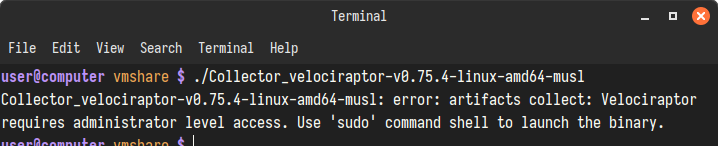

  • Linux and macOS

    • Most Linux file managers will prevent execution via mouse clicks, but if it does allow it then a terminal windows is likely to open and close too quickly for the user to be able read the error message.

      If the user runs it in a terminal (e.g. bash or zsh), they will be able to see the error message advising them to run it with sudo.



• Sufficient privilege scenarios

  If the user does have admin privilege and launches a collector that requires it, then :

  • Windows

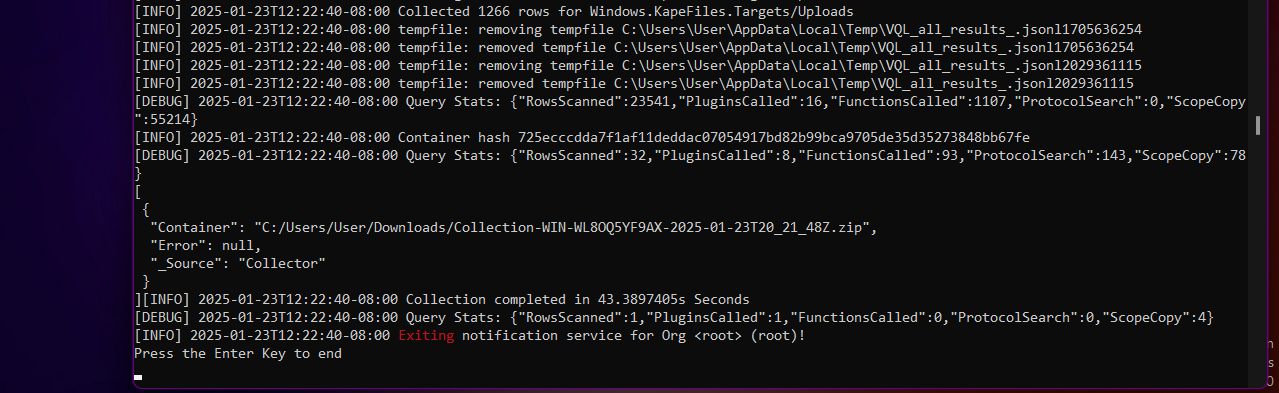

    • The collector is a console application, so in the Windows desktop environments it will open in a new terminal window if run by right-clicking. Even if the Pause For Prompt option was not selected in the collector builder, the collector will detect that it was launched outside of a terminal and will therefore present a prompt upon completion of the collection. This is intended to give the local person a chance to confirm that the collection did actually complete.

    • If launched in an elevated terminal, then it will run within the same terminal. In that case the terminal will remain open when the collection completes, although the application itself will exit. If run this way then the Pause For Prompt option isn’t really necessary since the collector completion status will still be visible.

  • Linux and macOS

    If launched in an elevated terminal or run with the sudo command, then the application will run within the same terminal. In that case the terminal will remain open when the collection completes, although the application itself will exit. If run this way then the Pause For Prompt option isn’t really necessary since the collector completion status will still be visible.

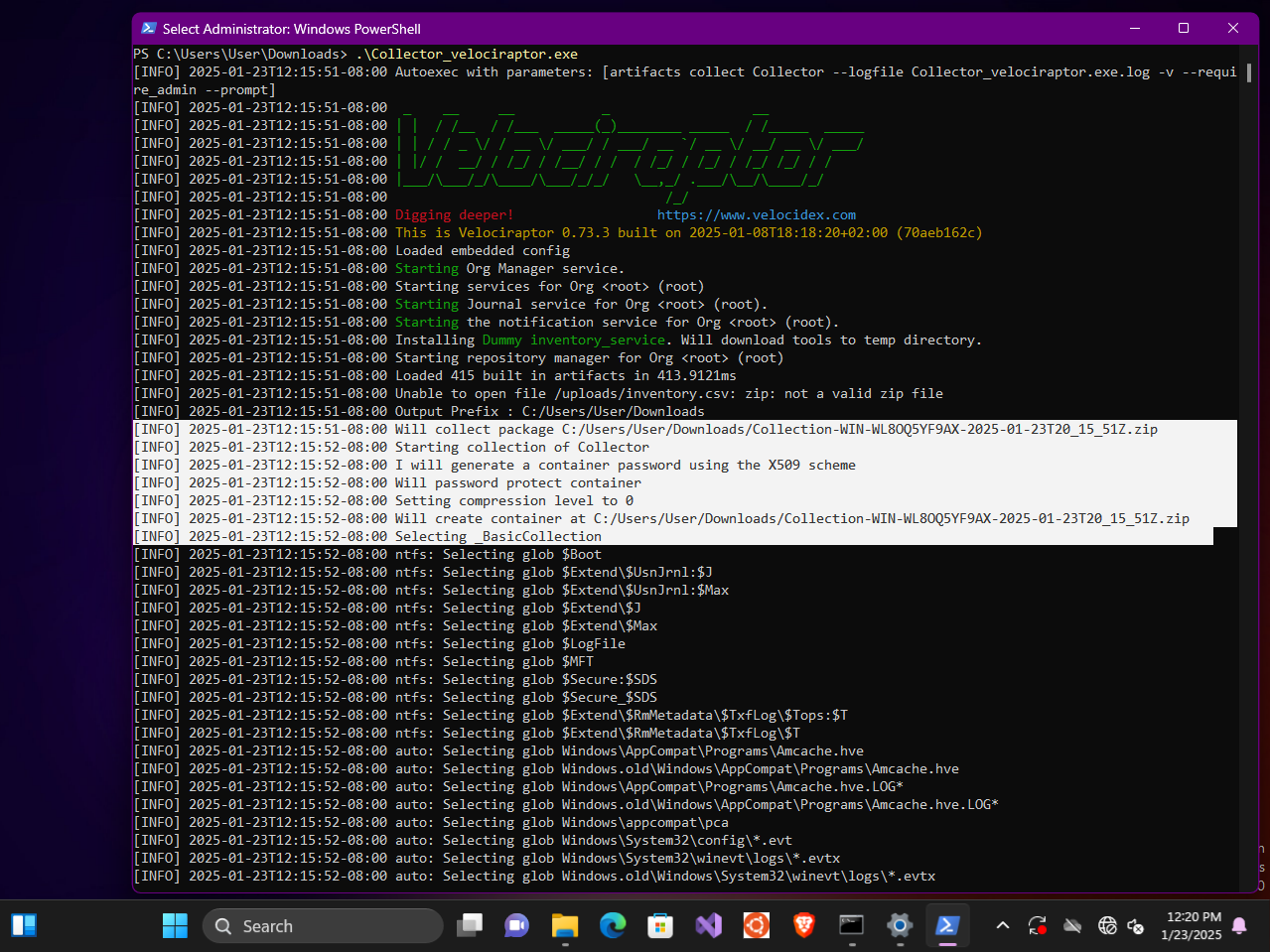

  When the collector runs it will look something like this:





Running the Generic Collector

The Generic Collector is run by specifying the --embedded_config flag. Normally the Velociraptor binary always expects a command , but in this case we want to use the flag on the command line without specifying any command.

To make Velociraptor accept the --embedded_config flag without a command, we use the “post args” pseudo-flag : --. This tells Velociraptor to act as if no arguments were specified and to pass the subsequent flag(s) to the autoexec function, which is contained in the generic collector file.

The Generic collector uses any unmodified standard Velociraptor binary, so in the following example the same Collector_velociraptor-collector could be used on all platforms. However, the artifacts that you selected to pack in the generic collector may be targeted to a specific platform, and therefore might not be equally applicable to all. You could build a generic collector that includes artifacts for all your target platforms with the artifacts themselves being conditionally run based on preconditions .

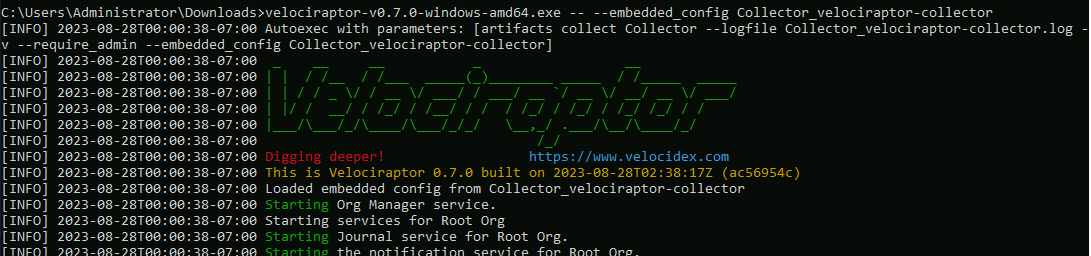

Example

./velociraptor-darwin-amd64 -- --embedded_config Collector_velociraptor-collector

./velociraptor-linux-amd64 -- --embedded_config Collector_velociraptor-collector

velociraptor-windows-amd64.exe -- --embedded_config Collector_velociraptor-collector

Because the generic collector is a data file (not an executable), on Linux or macOS it does not need to be marked as executable. However the associated Velociraptor binary does need to be executable, as would be required if using it any other way.

Providing console feedback to the local user

If you decide to have local personnel manually run the offline collector then the feedback that they receive via the default console output might be sufficient for them to observe the progress or note errors. By default offline collectors have console output set to verbose via the -v command line flag. This shows all log messages emitted by the artifacts being collected, which is usually sufficient.

However if you are designing custom artifacts for use with your offline collectors then you should keep in mind what you want your users to see (or not see).

Your artifacts can emit meaningful human-friendly messages to the console using the log function. Also keep in mind that the log() function deduplicates message by default, limiting the messages to 1 per minute per log function message template. In some cases you may want to disable this duplication for a specific log function instance.

In the other hand if you want the local personnel to see less output - for whatever reason - then you can rebuild the collector on the command line using the spec file that the GUI generated and set the OptVerbose option to false. The GUI-based collector builder currently does not offer this option and it enables verbose output by default.

Running from a network share or remote management solution

In the case of a single-file embedded collector, it’s easy to run it remotely. For the generic collector it’s potentially somewhat more complicated because two files are required (the Velociraptor executable plus the generic collector file) but usually it’s still possible.

As mentioned in the introduction above, we can use another EDR solution that allows remote execution if available. Alternatively, we can use Window’s own remote management mechanisms (such as Group Policy, PsExec or WinRM) to deploy our collector binary across the network.

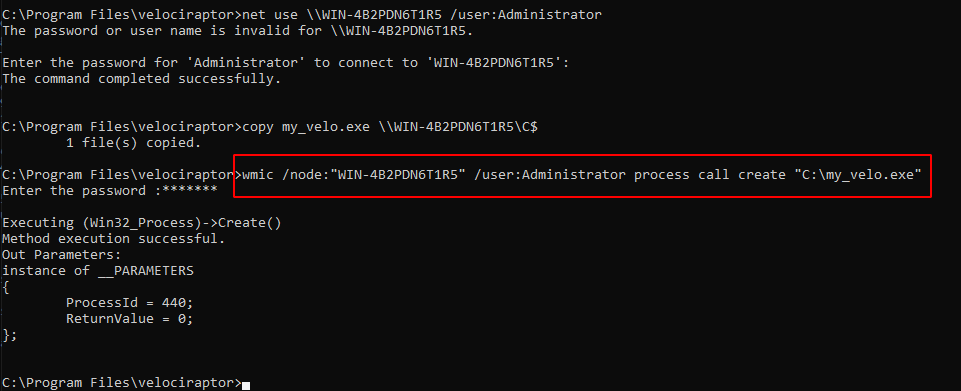

Example: using wmic

1. We authenticate to a network share with net use.
2. We copy our collector binary over the network to the C$ share on the remote system.
3. We use wmic to execute the binary on the remote host.
