Offline Collections
In this section we look at a less conventional method of collecting data from endpoints. One of Velociraptor’s many strengths is its ability to deal with the variety of challenging environments that realworld DFIR throws our way.
How do offline collections work?
At it’s core, the Velociraptor is just a VQL engine! We give it VQL to run, in the form of artifacts , and it gives us back data (which may or may not include files ). Normally the Velociraptor server gives the client the VQL to run, the client runs (“collects”) it, and the server receives the results from the client. Note that the collection step occurs independently of the server, with the server only being involved before and after the collection.
So for situations where the a server can’t be deployed or can’t be reached from the endpoints, we essentially need a special type of client that can do it’s collection work without receiving it’s instructions from the server, and without needing to send the results directly back to the server. We need an independent Velociraptor binary that acts like a client in terms of running (pre-defined) VQL artifacts, and that stores the results in a standalone/portable archive. We can then transport that archive file via alternative channels back to the server for import and analysis.
To support offline collections, Velociraptor is capable of creating special binaries that are pre-configured to automatically collect a selected set of artifacts. We call these binaries offline collectors.
They can do anything that a normal client can do, but they have their instructions “baked in” rather than receiving instructions interactively from the Velociraptor server.
Instead of sending their data back to the server they write it to a local collection container file, which they can optionally upload to a cloud storage service or network location. Because the collection container may contain sensitive data, offline collectors can encrypt or password-protect this file so that it’s secure while in transit.
The term “offline” in this context refers to the fact that the collection is done without the use of an online client - that is, without the client-server network connectivity that is required for normal collections. The endpoint needs to have a running operating system, just as it would if an installed or non-installed client was used. Do not confuse the term with deaddisk analysis , which deals with data from computers that don’t have a running operating system.
It may be better to think of offline collections as out-of-band collections, since the main difference is that the VQL and collected results are not sent over a network-based client-server communication channel.
Why do we need offline collections?
Under ideal circumstances we’d have our Velociraptor clients deployed and communicating with their Velociraptor server, and we’d be having an easy time hunting down the cyber threats. But sometimes some of us are thrown into difficult situations where we don’t have clients deployed and where a conventional client-server deployment is just not possible - we may have to perform investigations in situations where a conventional client-server deployment is either forbidden, or just not possible due to technical reasons such as lack of network access. This may even be your everyday “normal” if you, for example, provide IR services to other organizations.
In some situations, deploying Velociraptor in the usual client-server architecture might be impossible, impractical, or just inconvenient. For example:
You may not be permitted to deploy a Velociraptor server or clients in an environment that you are tasked with investigating. During a security incident there may be strong resistance to deploying any new software or infrastructure.
Internet access may be shut down during an incident so that clients, if deployed, could not connect to your cloud-based server. And in that case you may need to rely on external assistance (such as a local admin) to perform the collections when you have no remote access to the site. However, these assistants are typically not Velociraptor or even DFIR experts, so we need to be able to provide them with a solution that performs the required collections with minimal technical knowledge.
What is an offline collector?
The offline collector is a full-featured Velociraptor binary that has a custom configuration and selected artifacts embedded in it. If the embedded artifacts require any 3rd-party tools then these will also be repackaged into the offline collector binary.
The process of embedding the config - and optionally bundling other tools - does not require compiling a new binary from source. It uses the standard Velociraptor binary and produces a modified version of it. So you can still use the collector binary to perform any operations that an unmodified Velociraptor binary is capable of. The offline collector behaviour is only invoked when the binary is launched without any command line arguments .
Because offline collectors are based on standard Velociraptor binaries they can be created for any platform or architecture that Velociraptor supports.
When run without any command line arguments the embedded config is loaded. The config defines the offline collector’s behaviour which is:
collect the specified artifacts which are included in the config.
store the collection results, logs and metadata in a structured zip archive, which is typically encrypted or password-protected (but doesn’t have to be).
upload the collection container to a cloud storage service or other network destination, if configured to do so.
delete the collection container from disk (optional and only used when the collection container is uploaded to a network destination).
During the collection the offline collector displays progress in a terminal. No user interaction is needed, but you can choose the option to pause at the end of the collection process so that if there’s a person running it locally then they can observe whether or not it has completed successfully.
Offline collection considerations
Although offline collectors provide a powerful capability to address difficult situations, they are not without some drawbacks. Here are a few that you should think about.
You really need to plan ahead about what you want to collect. An offline collection is often a one-shot opportunity to collect what you need. Iteration would require creating a new collector each time. By contrast a network-connected “online” client makes it easy to quickly pivot and dig deeper in response to findings. For this reason offline collections tend to err on the side of collecting more data than is really necessary rather than being more targeted and focused on answering specific investigative questions.
Offline collectors need to be packaged with the artifacts and tools that they need. This means that you can’t quickly create a new artifact and add it to your offline collector without rebuilding and redistributing a new binary. If your artifacts need tools then bundling them into a collector binary can significantly increase the file size.
The release versions of the Velociraptor binaries for Windows and macOS are digitally signed. Repacking the binary invalidates those digital signatures. For Windows this is rarely an issue, but macOS will refuse to execute binaries with invalid signatures. So on macOS we use the Generic collector option, which is the offline collector config plus tools packaged into a separate file.
Because offline collectors do not provide progress updates and resource telemetry to the server, we cannot get feedback on how the collection is going or on the resource usage. However, since offline collectors are typically used under emergency conditions the resource utilization aspect may not be of much concern.
In general, don’t use offline collectors:
To only collect files: Many new users make the mistake of only collecting files with the intention of analyzing them later on the server. Velociraptor is not designed for centralized parsing of files - it can be done but it’s relatively complicated, loaded with caveats, and can add significant delays to an investigation.
If you want to parse files and analyze their contents and also collect copies of the files, then that’s easily done: just add the relevant parsing artifacts to your offline collector spec. Parsing of most file types is very fast and can therefore be done on the endpoint at the same time that the files themselves are collected. This approach makes use of the combined computing resources of all endpoints rather than centralizing the workload on the server. When you import a collection container on the server it’s far better to have data that you can immediately begin working with, and not just a dump of files.
Ideally you should use the same artifacts in an offline collector as you would use if you had a client running on the endpoint. Although, as mentioned previously, this does require some planning.
There are certainly some situations where you might only need to collect certain files, but those are typically rare. With Velociraptor it usually only makes sense to copy a file if you’ve looked through it and found something of interest.
To avoid using clients: If the endpoint can communicate with the server then there really is no reason to use an offline collector rather than an interactive online client.
Velociraptor clients can operate without being installed .
Clients can immediately join hunts upon enrollment, which allows them to immediately begin collecting exactly the same pre-defined set of artifacts that an offline collector would have.
Clients allow you to iterate and pivot as you investigate. Having the results returned directly and almost immediately to the server allows you to get answers without delays.
The client config can be repacked into the binary, and made to auto execute in
clientmode. That is, the convenience of a single autoexec binary can be replicated for non-installable clients using the same embedding mechanism that offline collectors use. In certain scenarios this may be preferable to offline collectors, as is explained here .
The Generic Collector
Normally the Velociraptor offline collector builder creates a preset configuration file and embeds it inside the regular Velociraptor binary for ease of use. Because it uses a binary for a specific platform and architecture, you would need a separate collector for each target platform/architecture in your environment.

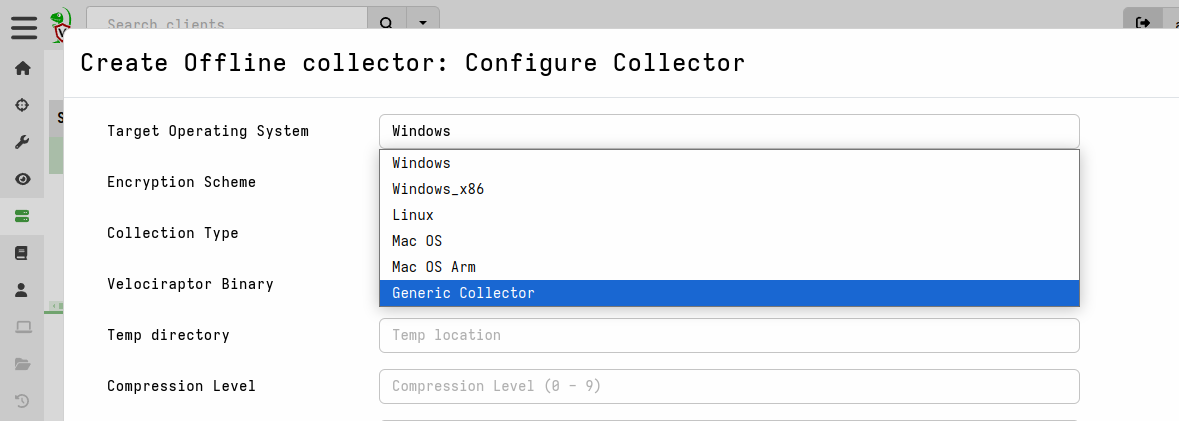

In recent versions of Velociraptor we now offer a new type of collector called the Generic collector. The Generic collector is functionally the same as the offline collectors that use an embedded config, however it is a file that is separate from, and therefore independent of the binary. It’s essentially a standalone collector config, optionally combined with a tools bundle, written into a single file. This allows it to be used on the command line with any Velociraptor binary.
There are two reasons to use a Generic Collector instead of one that’s embedded in a platform-specific binary:
Embedded configs are limited to approximately 80KB, regardless of which platform the binary is compiled for. This is usually sufficient for a large number of average sized artifacts, since compression is applied to the config before it’s embedded and artifacts are highly compressible. However we have a few artifacts that are relatively large and contain already-compressed data that can’t be compressed much more. Some of these large artifacts are larger than the ~80KB embed limit, or else a selection of artifacts that includes 2 or 3 of the large ones will be beyond the limit.
The macOS binaries that we create are code-signed. Embedding a collector config into the binary invalidates this digital signature. Recent versions of macOS will prevent execution of binaries with invalid signatures. So on macOS the Generic Collector approach is absolutely necessary and the only supported option. Microsoft is increasingly starting to care about signed binaries too but currently less so than Apple, so in some Windows environments the generic collector might be the best option.
While the Generic collector is required for macOS, it can also be used for Windows, Linux, etc. to accommodate very large artifacts or combinations of large artifacts that exceed the embedding size limit. An additional benefit is that you then only need to create one collector which can be used cross-platform, although your selection of artifacts would need to take that into account.
Learn how to run generic offline collectors here .
Note that tools are not embedded in the binary and therefore do not need to be factored into the ~80KB limit. With both the generic collector and the offline collectors based on Velociraptor binaries that use config embedding, the tools are bundled and appended to the file.
Collection containers
An offline collector is essentially a preprogrammed out-of-band client. Instead of connecting to the server and delivering data over a client-server communication channel, the data is delivered via sneakernet or a cloud storage provider or some other means.
To make the data portable and thus enable delivery via arbitrary means, the offline collector writes the collection results and other data to a local zip file. Inside the zip we used a well-defined file structure that allows these collection containers to be imported into a Velociraptor server while also conveying the necessary collection context that lets the server treat the data as if it was collected by a normal (online) client.
As explained below, we provide several ways to secure the collection data in transit.
Typically the collection data is then imported into the server which creates a normal client record and associated collections. The data can then be queried on the server as with any other client collections.
See the section Working With Offline Collection Data for more information about importing collection containers, as well as other ways to work with the data without importing it.
Collection security
All Velociraptor collections - whether online of offline - can potentially contain sensitive data. With client-server (online) collections the data transfer is secured with TLS. However an offline collector creates a portable collection container, which is assumed to then be transported via insecure networks/systems outside the control of Velociraptor. So it is essential to properly secure this data.
Offline collector archives can be encrypted. We provide the following schemes for encrypting the data:
Password-secured: specifies a fixed password in the collector configuration. This password is passed directly to the ZIP library to encrypt the file.
If using a fixed password to encrypt the collection zip, the password needs to be embedded within the collector itself. It is easy for anyone with access to the collector binary to extract the collector configuration and view the fixed password.
We therefore recommend that one of the certificate-based schemes be used in practice.
X509-secured: a long random password is generated and encrypted with the server’s certificate, or another X509 certificate that you provide.
It’s the most secure and comes with practical benefit of the server being able to automatically decrypt the collection archives when they are imported into the server’s datastore.
This scheme embeds the Velociraptor server’s public certificate in the offline collector. During collection, a long random password is generated which is used to encrypt the container. The password itself is also encrypted using the embedded Velociraptor certificate and stored in the container inside the container metadata.
After use, the unencrypted password is discarded. The only way to then recover the password is by decrypting the encrypted copy using the server’s private key. This decryption can therefore only be done by the server (or someone in possession of the server config containing the server’s private key). If either the collector binary or the collection container zip fall into the malicious hands, it is impossible to recover the password.
If the X509 method is used with the server’s certificate, then the collection archives will be decrypted automatically and transparently when they are imported into the server that produced the offline collector.
PGP-secured: a random password generated and encrypted with the PGP public key.
Not recommended but available for certain uses cases where PGP/GPG keys are mandated. Technically it’s equivalent to the X509 scheme in terms of security, but does not allow for automatic decryption upon import.
With all the above options, the archive is protected by a password. However for the certificate-based options that password is randomly generated by the collector and used to secure the collection archive. Then the password itself is encrypted using either the server’s X509 certificate or a cert that you provide.
If you use either of the certificate-based options, the zip password is essentially a strong symmetric key, which is secured in transit using asymmetric cryptography. This allows Velociraptor to create and extract collection containers with high speed and efficiency - which is very important as collection containers can sometimes be extremely large - while also benefiting from the strength of asymmetric encryption.
Even though the ZIP format uses AES to encrypt the contents of files, the file
names, sizes and other metadata can still be seen without providing a password.
This is an unfortunate limitation of the ZIP file format, especially since the
file names alone can reveal much information about the collection. We definitely
want to prevent that, so to overcome this limitation, Velociraptor first zips
the collection data into a zip named data.zip and then places that into a
second zip container. It then applies the protection to the data.zip on the
outer zip container, which means that anyone without access to the password can
only see data.zip in a zip file listing and nothing more. In addition we add a
file named metadata.json which contains the encrypted randomly-generated
password and information about the protection scheme being used. The collector
does not apply protection to this file since we need to read it to obtain the
encrypted password which we can then decrypt (which we can only do if we have
the corresponding private key!).
In addition to the encrypted options we do also allow the option of None (no encryption) for the collection zip, but you should avoid using this except perhaps in special circumstances such as for practical reasons while testing in a lab or training environment.
Concurrency and order of artifact collection
The offline collector collects the selected artifacts in an effectively random order. You cannot change the order of artifact collection.
By default the offline collector will collect 2 artifacts at the same time
(concurrency = 2). This can be overridden in the GUI collector builder or by
specifying the OptConcurrency setting in the spec file if building the
collector
on the command line
.
Because offline collectors run without resource limits (by default), increasing the collection concurrency will not necessarily lead to faster collections, and may even achieve the opposite due to resource contention. If you are considering performance tuning your offline collectors then testing will help you establish an optimal concurrency setting. Different artifacts use different resources, and can shift their demands at different times during a collection. So the default setting provides a good balance since there’s a reasonable chance that 2 artifacts will be demanding different resources at any moment in time.
