Collecting Artifacts
Velociraptor’s superpower is a powerful query language termed VQL. You might be surprised to learn that you have already been using VQL all this time. When clicking in the VFS interface to sync a directory listing or download files, the GUI was collecting artifacts behind the scenes.
Click on the Collected Artifacts sidebar screen to view the artifacts that have been collected so far.
This screen consists of two panes - the top pane shows a list of all the Artifacts collected so far from this endpoint, while the bottom pane shows information about the selected artifact.
All artifacts have a Name. In our example, you can see that we
have been collecting System.VFS.DownloadFile and
System.VFS.ListDirectory in order to populate the VFS screen.
Each artifact collection has a unique Flow ID, which is how
Velociraptor refers to a collection. The collection is created at a
certain time and starts some time later. If the client is offline, the
collection will start when it comes back online.
Collections also take parameters. In the previous example, the
System.VFS.ListDirectory artifact was used to list the directory
“C:\Users\test”.
A collection of artifacts can return rows or upload files. This is because an artifact is simply a VQL query and all queries return a sequence of rows.
Example: collect scheduled tasks from endpoint.
To illustrate how artifacts can be used, let’s collect a common
forensic artifact from our Windows endpoint. Windows allows commands
to be scheduled in the future. These tasks are typically stored in the
C:\Windows\System32\Tasks directory as XML files.
While it is nice to know the details behind where the scheduled tasks are stored and how to parse them - this is completely unnecessary with Velociraptor, since we have a built-in artifact ready to collect and parse these tasks!
In the following I will walk through the steps for scheduling a new
Windows.System.TaskScheduler collection.
Initiating a new collection
Start a new collection by clicking the New Collection button . This will open the new collection wizard as show below.
The Wizard contains a number of steps but you can skip them if they are not needed. For this exercise we will examine each step in turn
Searching for artifacts to collect
In the first step, search for an artifact to collect the type of
information you are after. In this case we will search for “task” to
see our Windows.System.TaskScheduler artifact.
The next step allows us to modify artifact parameters.
Setting artifact parameters
Artifacts may accept parameters from the user which change the way the
artifact works. The detail of how artifact parameters work is
described in Artifact Parameters
but for the moment we just update
the parameters needed for the Windows.System.TaskScheduler artifact.
This artifact does not require much updating. Artifacts have default
values for their parameter such that they mostly do the right thing
without needing to change them. In this case, the TasksPath
parameter specifies where to find the task XML files and is already
set to the default location.
For the purposes of our example, we will also upload the raw XML
files, so set the AlsoUpload parameter.

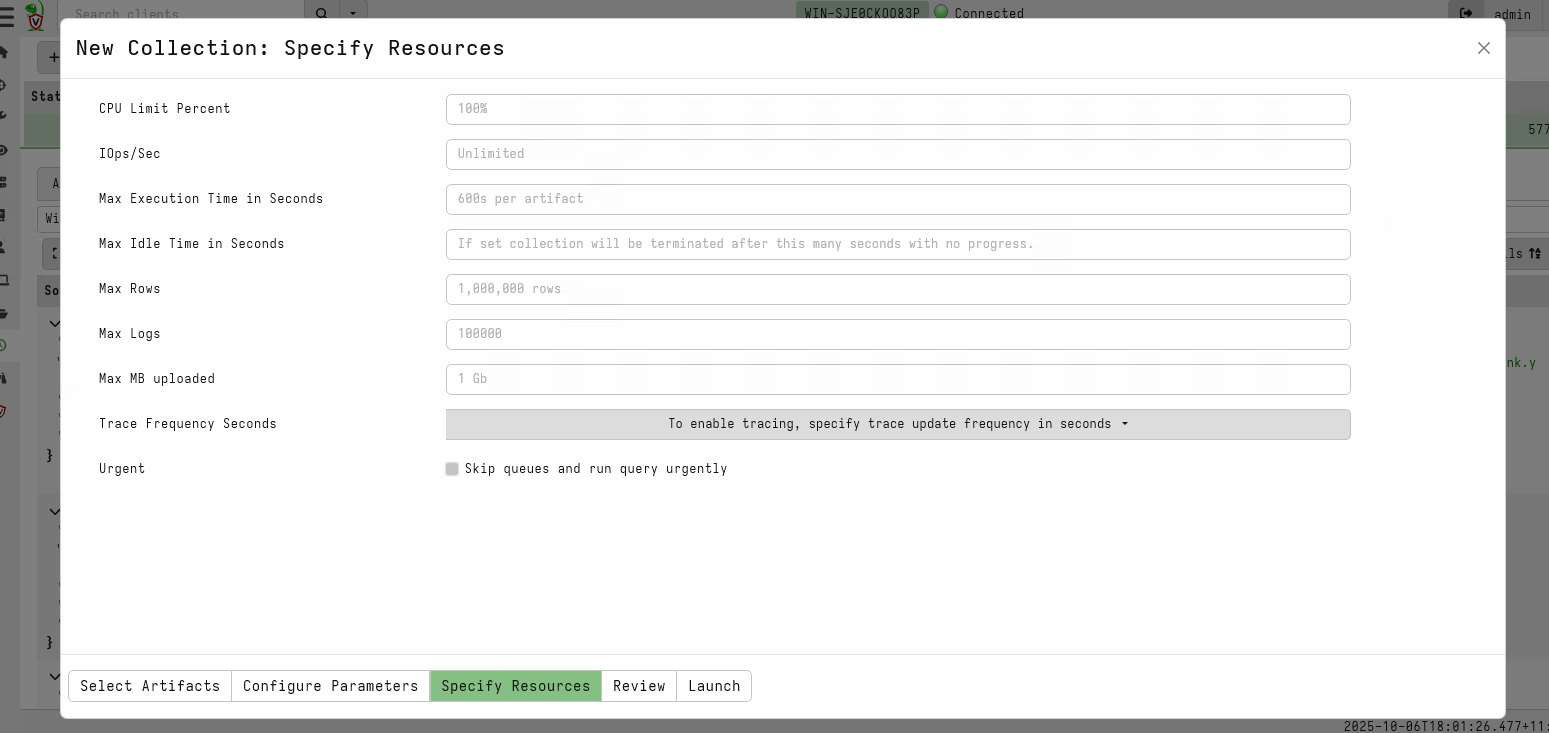

Specify Resources
Velociraptor often runs on performance sensitive endpoints, like servers and laptops, as well as low resource machines like cloud virtual machines. It is critical to ensure that Velociraptor does not generate undue load on the endpoint, leading to performance degradation.
Velociraptor contains a number of mechanism to limit resource usage, as a “fail safe” and to prevent accidentally overloading the endpoint. You can read more details on Resource Limits here , but for now notice that Velociraptor’s default resources are pretty reasonable
Collections by default run for 600 seconds before being cancelled - odds are that collecting the scheduled tasks files should not take that long. It should also not transfer more than a Gigabyte (which is the default upload limit).

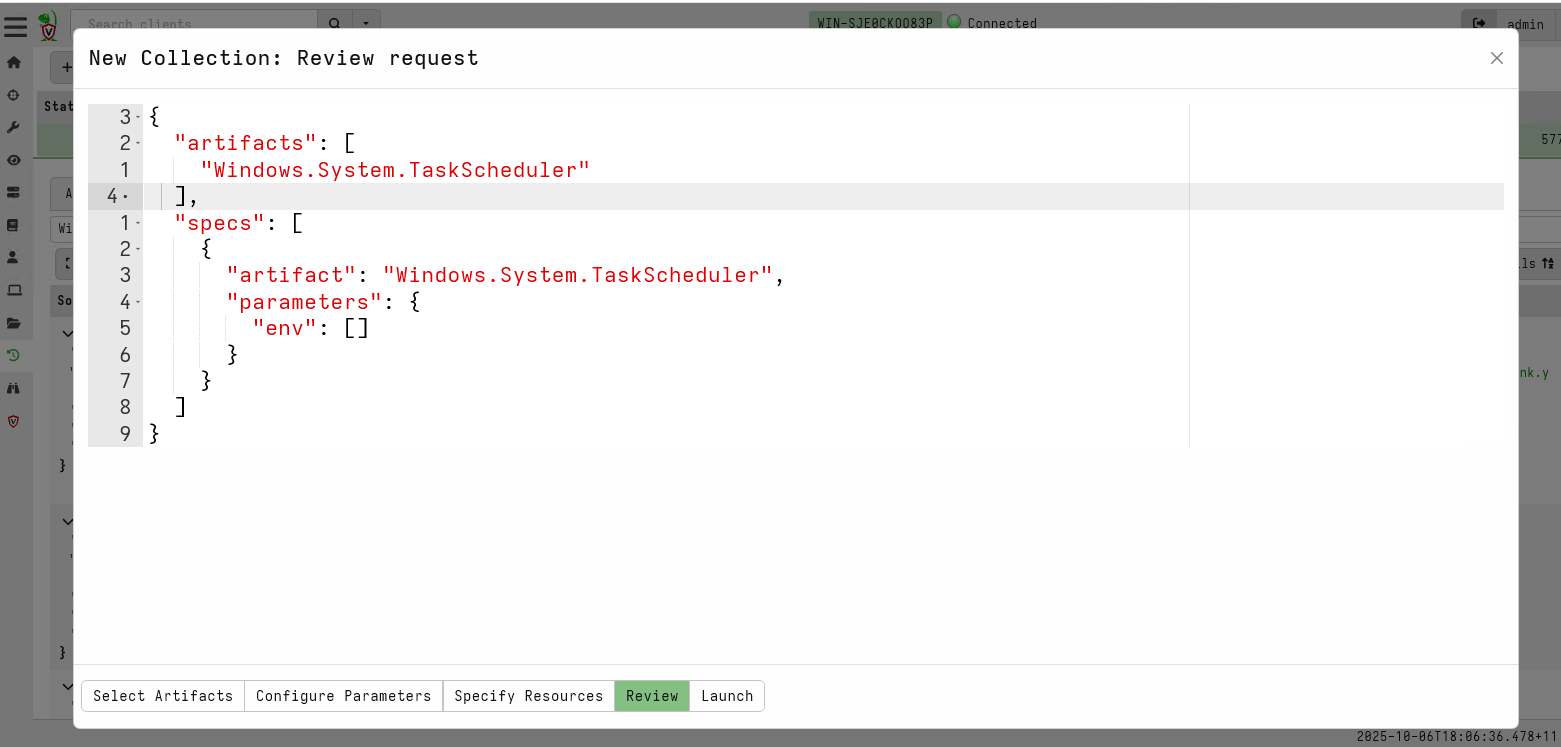

Inspecting the collection request
Just prior to collecting, you can view the collection request in the
GUI. This is probably mostly useful for automating the collection
using collect_client() but gives a final view on what exactly will
be collected.
Launching the collection
Finally, click Launch to start the collection. After a short time, the collection will complete.
We can see that this collection uploaded 195 files and added 195 rows. The VQL query parses each XML file in turn and uploads it.
Inspecting collection results
We can see more information about this collection in the tabs in the bottom pane:
- Logs - As the VQL query is executing on the endpoint, the query may produce log messages. This is called the Query Log and it is forwarded to the server. We are able to see how the query is progressing based on the query log.

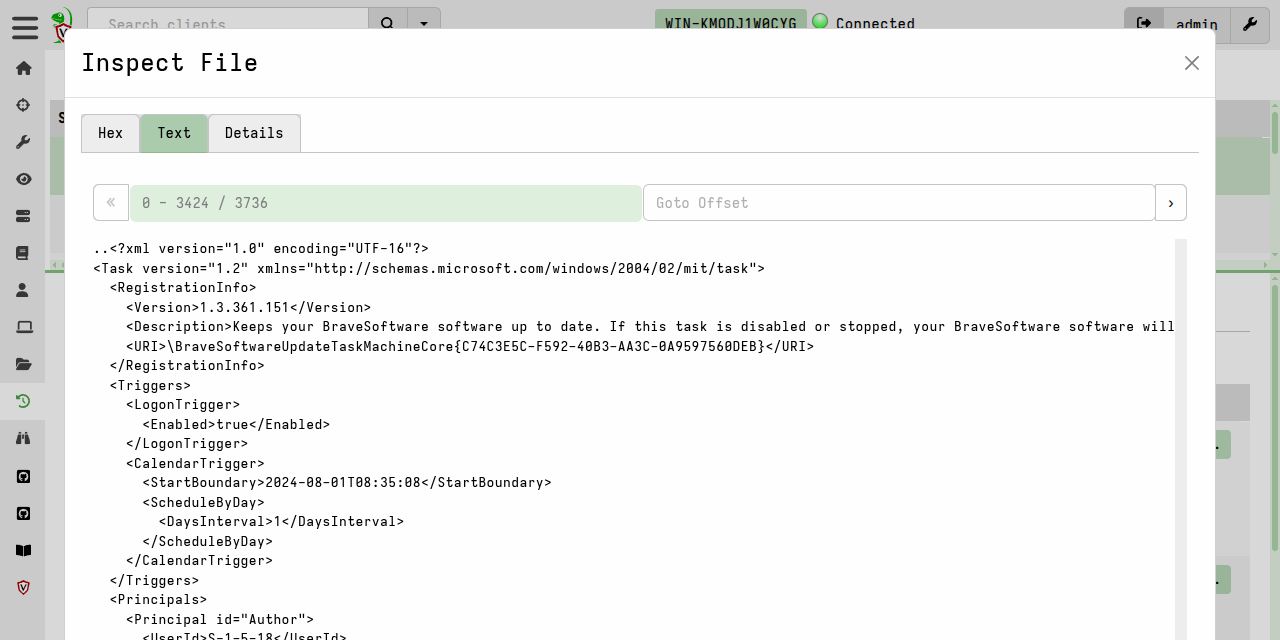

- Uploaded Files - This tab shows all the files uploaded by this query. You can download any of these files individually from the server by simply clicking the link, or click the preview button to examine the file in the GUI.
- Result Tab - This shows each result set in a table. A single collection may collect several artifacts. In this case you can choose which artifact to view by clicking the pull down menu.
Inspecting and modifying artifacts
The View Artifacts screen allows you to search and find all artifacts loaded into Velociraptor. Search for an artifact in the search screen and select an artifact to view.
The left pane shows the name of the artifact, a description and any parameters the artifact may take. Finally we can inspect the VQL source of the artifact.
You can edit any artifact by clicking the “Edit an Artifact” button
User artifacts must have the prefix “Custom.” in order to ensure that user artifacts do not override built in artifacts. When editing an existing artifact, Velociraptor will automatically add the Custom prefix to the artifact name and will produce a new artifact. Therefore both the custom and built in artifact exist in Velociraptor at the same time. This allows you to collect either the original or the customized version as you please.

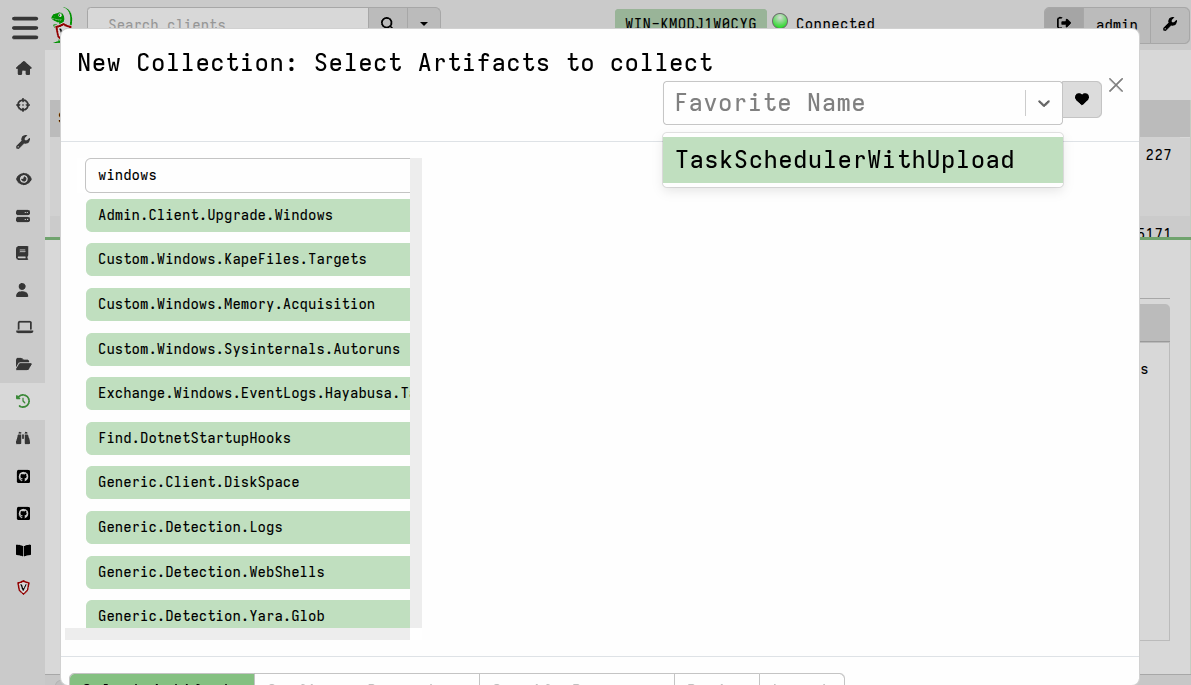

Saving collections to a favorite list
Many users find that they tend to collect some artifacts more commonly than others. In that case you can save your favorite collections by name and just recall them by clicking in the favorites list button.
Learn more
To learn more about how to write your own artifacts click here
