Artifact Parameters

Parameters allow us to customize the collection of artifacts in a controlled way, without needing to edit the VQL.

When the queries contained in artifacts are sent to the endpoint, the Velociraptor server populates the VQL scope with the parameters. This allows the VQL queries running on the client to directly access those parameters as variables. The VQL data type of each such variable will correspond to the parameter’s type specification.

For hunts and individual collections, the GUI presents a Configure Parameters form that allows the user to update the parameters for all selected artifacts prior to launching the collection. The parameter type also determines which form element should be used to appropriately render the parameter in the GUI.

We have a built-in artifact named Demo.Plugins.GUI which demonstrates all the parameter UI types. You can use this artifact to familiarize yourself with the look and feel of each type.

The Demo.Plugins.GUI artifact demonstrates parameter UI components
The Demo.Plugins.GUI artifact demonstrates parameter UI components

While the GUI provides a user-friendly UI component for each parameter type, all artifact parameters are sent to the client as strings. The client automatically parses them into a VQL data type according to the parameter’s type.

You can see how the parameters are provided to clients by examining the Review tab for any collection or hunt, prior to launching it, or the Requests tab, after launching it.

Parameter definitions

Each parameter can optionally have additional attributes that specify the parameter’s data type and additional information which is used by the GUI for displaying and editing the parameter.

  • name: The parameter’s name is the only required field. This is the variable name that will be used in VQL queries to access the value of the parameter.

  • friendly_name: An alternative human-friendly display name for the parameter when it is presented to users in the GUI. If this field exists then it is used in the GUI instead of the name field. This is useful in cases where the parameter’s name might not be easily understood by the user.

  • description: A description that is either displayed alongside the form control for certain GUI form controls, or displayed as a popup when the user’s cursor hovers over the form control. This can be a multi-line text string if you need to provide a detailed explanation to the user.

  • default: The default value of the parameter. This is always specified as a string, although the GUI provides user-friendly form components that make entering values for each type easier.

  • type: The data type of the parameter. See Parameter types for more information. If type is not specified then it defaults to being a text field; that is a simple text string.

  • validating_regex: For string type parameters, this is used to indicate to the user that their entered value is not valid. However this is just a visual indicator - it will not prevent users from running the artifact with invalid values. There is no way to make a parameter require a value. You should ensure that your parameters either have a sensible default value, or else design your artifact in such a way that it fails gracefully (for example, by providing a helpful log message) if no value or an invalid value is provided. You can also implement additional validation in your VQL and have it provide a default value if an acceptable value is not found.

With certain parameter types – namely choices, multichoice, and artifactset – additional fields become available that are necessary to support the specific behaviour of those parameter types.

Parameter types

How parameter types are processed

All parameter values are defined as strings. These string values are then converted to the corresponding VQL data type according to the parameter’s type specification when the collection request is compiled.

For example, consider the following trivial artifact:

name: Custom.ParameterTypeDemo

parameters:
  - name: AnInt
    type: int64
    default: "10"

sources:
  - query: SELECT AnInt, typeof(a=AnInt) FROM scope()

Note that the default value for the parameter is defined as a string, not a YAML integer. While this is not strictly necessary, as Velociraptor knows that values should be interpreted as strings and will silently convert them for certain YAML scalar types, it is good to be aware of this. It is especially important when dealing with compound data types such as JSON dicts, JSON arrays, and other types of data blobs, which must be enclosed in quotes.

When sending the artifact to a client, we can see in the Requests tab that a conversion function is added to the compiled VQL queries, assigning the result to a variable named by the parameter.

"env": [
  {
    "key": "AnInt",
    "value": "10"
  }
],
"Query": [
  {
    "VQL": "LET AnInt <= int(int=AnInt)"
  },
  {
    "VQL": "LET Custom_ParametersTest_0_0 = SELECT AnInt, typeof(a=AnInt) FROM scope()"
  },
  {
    "Name": "Custom.ParametersTest",
    "VQL": "SELECT * FROM Custom_ParametersTest_0_0"
  }
],

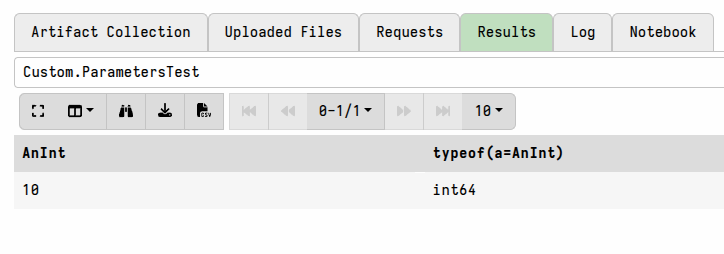

As expected, the variable’s type in the results corresponds to the parameter’s type specification, and we can confirm this by using the typeof function.

Parameter validation

As mentioned previously, the validating_regex parameter field provides a way to give the user visual feedback when they are entering an invalid value for the parameter. However this does not prevent the user from proceeding with an invalid value.

Because parameters are ultimately just variables, you can perform additional validation on the variable’s value in your VQL and potentially override the parameter’s value using VQL variable assignment, if the user-supplied value is unacceptable.

For example, consider the following artifact which uses the server_metadata parameter type:

name: GetServerMetadata

parameters:
  - name: NameOfMetadataKey
    type: server_metadata
    default: "600"
    validating_regex: ^\d{1,5}$

sources:
  - query: |
     LET NameOfMetadataKey <= if(condition=NOT NameOfMetadataKey =~ '''^\d{1,5}$''', // recheck the validating regex
                              then=600, // re-apply the default value
                              else=int(int=NameOfMetadataKey)) // otherwise just convert it to an int
     SELECT NameOfMetadataKey, typeof(a=NameOfMetadataKey) FROM scope()

In this artifact we can’t be sure that the metadata key actually exists, nor that it contains a valid value (we want it to only be a 1-5 digit integer). It’s also possible for the user to set a different value in the Configure Parameters screen of the collection wizard. To guard against invalid or missing values in this situation we can implement a few measures including additional validation in VQL:

  • the validating_regex parameter field will help guide the user towards entering a valid value, however this is not enforceable.
  • although a default_value is defined for the parameter, this is only used if the value stored in the server metadata key is undefined (i.e. the metadata key does not exist).
  • if the user enters a valid value in the Configure Parameters screen, or if the server metadata key exists and contains a valid value, then the VQL converts this to an integer. The user-entered value takes precedence over the metadata-defined value.
  • if the user enters an invalid value in the Configure Parameters screen, or if the value defined in the server metadata key is invalid, then the VQL will re-apply the default value as an int (no type conversion is necessary because it’s unquoted and therefore interpreted as an integer).

While it’s rarely necessary to be as guarded about parameter values as the above example is, it shows how you might implement stronger validation in your VQL, if your artifact requires it.

Types

The following parameter types are currently supported.

[ string ]

  • Description: The parameter is a string (the default type).

  • VQL conversion function: not converted

  • UI form component:

[ int / integer / int64 ]

  • Description: The parameter is an integer (int64 data type).

    When specifying the type, int, integer, and int64 are all equivalent.

    Note that a YAML integer as a parameter default, without the int type, will be interpreted as a string.

    parameters:
- name: AnInt
  default: 80 # <- will be interpreted as a string!

  • VQL conversion function: LET X <= int(int=X)

  • UI form component: same as string type

[ float ]

  • Description: The parameter is a float (float64 data type).

  • VQL conversion function: LET X <= parse_float(string=X)

  • UI form component: same as string type

[ bool ]

  • Description: The parameter is a boolean (TRUE/YES/Y/OK).

    A default value of true or yes or y or ok (case-insensitive) will evaluate as TRUE. Any other value, including but not limited to false, will evaluate as FALSE.

  • VQL conversion function: LET X <= X =~ '^(Y|TRUE|YES|OK)$'

  • UI form component:

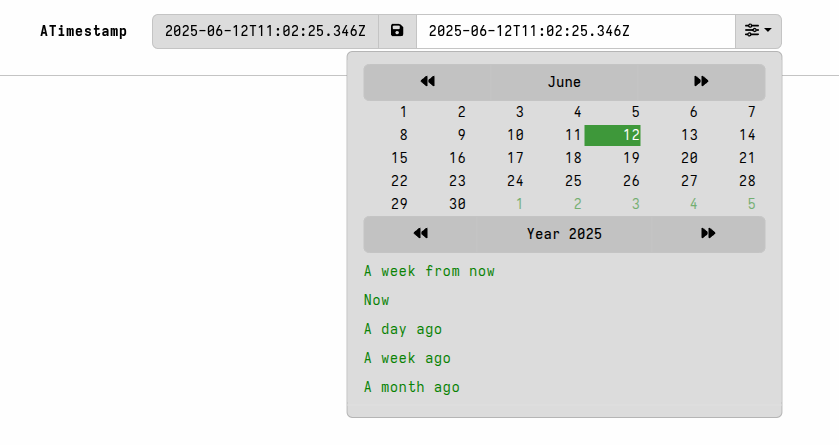

[ timestamp ]

  • Description: The parameter is a timestamp ( Golang time.Time object ).

  • VQL conversion function: LET X <= timestamp(epoch=X)

  • UI form component:

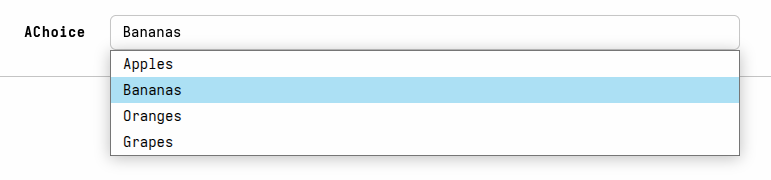

[ choices ]

  • Description: Allows a single selection from a list of choices.

    When using this type, the choices field should also be used as it contains the list of items that can be chosen from.

  • VQL conversion function: not converted - the selected item is passed as a string.

  • UI form component:

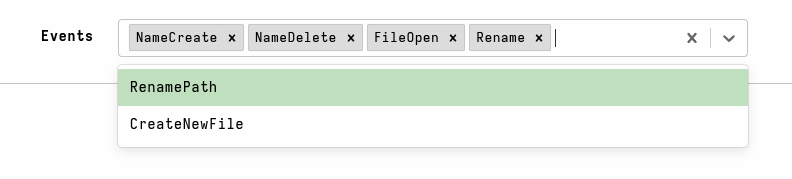

[ multichoice ]

  • Description: A selection list allowing multiple selections. This returns an array of the selected items.

    When using this type, the choices field should also be used as it contains the list of items that can be chosen from.

    The default choices are specified as a list of items, which should be a subset of the items in choices. These items will then be pre-selected in the multichoice UI component.

    Example:

    parameters:
  - name: Events
    type: multichoice
    description: Events to view
    default: '["NameCreate", "NameDelete", "FileOpen", "Rename"]'
    choices:
      - NameCreate
      - NameDelete
      - FileOpen
      - Rename
      - RenamePath
      - CreateNewFile

  • VQL conversion function: LET X <= parse_json_array(data=X)

  • UI form component:

[ server_metadata ]

  • Description: The server will populate this parameter from the server metadata service prior to launching the artifact. It can therefore be used in both client and server artifacts.

    Metadata values are always strings, but you can store string representations of other data types in metadata fields and then convert them to the required data type in your VQL.

  • VQL conversion function: LET X <= server_metadata().X or LET X <= get(item=server_metadata(), member="X")

  • UI form component: same as string type

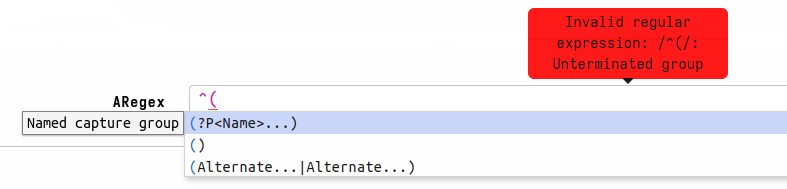

[ regex ]

  • Description: The parameter is a Regular Expression. The GUI will present a regular expression editor with regex autosuggestions to help you write it.

  • VQL conversion function: not converted - passed as a string

  • UI form component:

[ regex_array ]

  • Description: Allows for entry of a list of regular expressions, and returns an array containing these expressions.

  • VQL conversion function: LET X <= parse_json_array(data=X)

  • UI form component:

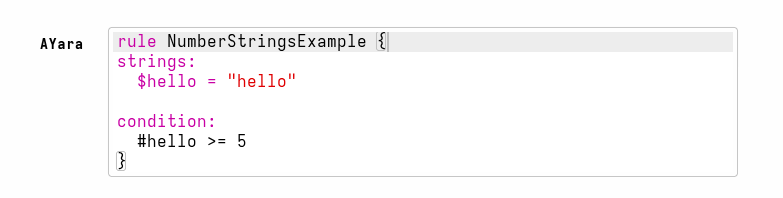

[ yara ]

  • Description: The parameter is a multiline string consisting of one or more Yara rules. The GUI will present an editor with Yara syntax highlighting.

  • VQL conversion function: not converted - passed as a string

  • UI form component:

[ json ]

  • Description: Parameter is a JSON encoded dict and returns an ordereddict.Dict object.

  • VQL conversion function: LET X <= parse_json(data=X)

  • UI form component: same as string type

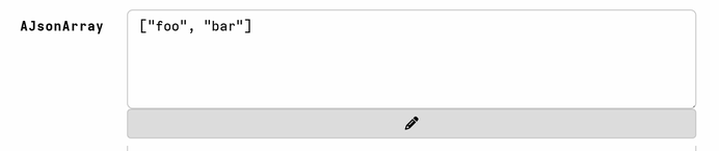

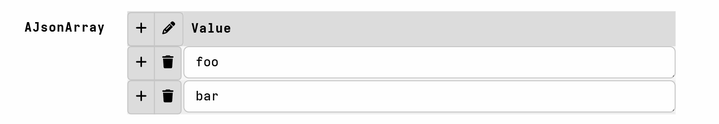

[ json_array ]

  • Description: The parameter accepts a list of items encoded as a JSON blob (similar to csv) and returns an array object.

  • VQL conversion function: LET X <= parse_json_array(data=X)

  • UI form component: same as string type

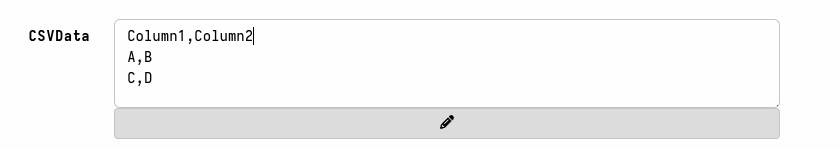

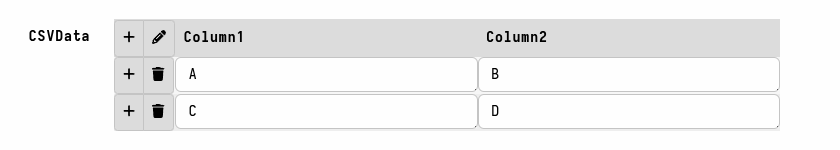

[ csv ]

  • Description: Parameter accepts CSV-formatted data, and returns an array of dicts.

    The GUI will present a table-based CSV editor, which you can also switch to a raw editing mode where you can paste in CSV-formatted data.

  • VQL conversion function: LET X <= SELECT * FROM parse_csv(filename=X, accessor='data')

  • UI form component:

[ hidden ]

  • Description: String type that is not displayed in the GUI.

    Although this parameter type is hidden, you can still pass values to it from other artifacts.

  • VQL conversion function: not converted - passed as a string

  • UI form component: not displayed

[ redacted ]

  • Description: The value of this parameter is redacted in the request or other places where it may be logged.

    This should not be considered a security mechanism. For securely passing sensitive parameters to client you should use Velociraptor’s secret management feature.

  • VQL conversion function: not converted

  • UI form component: same as string type

[ upload ]

  • Description: Allows you to upload content from a file. The upload content will be available in this variable (as a string) on the client. The GUI will present a file upload widget to allow you to upload a file.

    The file is delivered to the client from the server’s public directory, with the client retrieving it using the http_client plugin. The file content is not written to disk on the endpoint.

    Notes:

    • The uploaded content is valid for this request only!
    • The upload content is limited to 4MB - if you need larger files to the endpoint use upload_file instead.
    • You cannot set a default value for this type.

  • VQL conversion function: LET X <= SELECT Content FROM http_client(url=X)

  • UI form component:

[ upload_file ]

  • Description: The parameter will be the name of a temporary file on the endpoint containing a copy of the uploaded file.

    This differs from the upload parameter type in that the file is written to disk as a temp file, and the parameter then contains the path to this file. This avoids the size limitation, but by writing the file to disk it’s slightly slower and the file is also susceptible to endpoint anti-malware scanning.

    When using this parameter type your VQL will need to read the contents of the file, typically using read_file() or similar functions.

    Notes:

    • The uploaded content is valid for this request only, as the temp file is removed on the endpoint when the collection completes.
    • You cannot set a default value for this type.

  • VQL conversion function:

    LET X_ <= SELECT Content FROM http_client(url=X, tempfile_extension='.tmp')
LET X <= X_.Content[0]

  • UI form component:

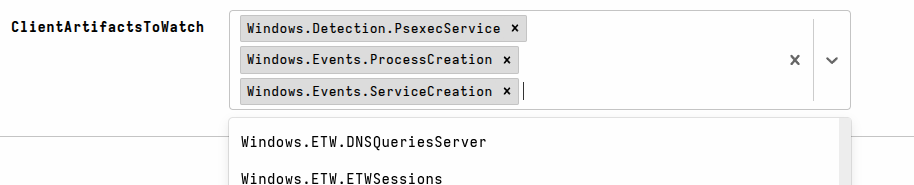

[ artifactset ]

  • Description: Allows selection of one or more artifacts from a set of artifacts. Returns an array of artifact names, optionally including named sources.

    This parameter type is generally only useful on server artifacts as clients do not have access to arbitrary artifacts.

    When using this parameter type you must also include the artifact_type field which can be one of CLIENT, SERVER, CLIENT_EVENT, SERVER_EVENT, NOTEBOOK. This determines the type of artifacts that the user can select from.

    You can optionally include the sources parameter field (a boolean) which determines whether or not to include artifact source names in the artifact selection list. By default source names are not shown (i.e. sources: False).

  • Example:

    parameters:
  - name: ClientArtifactsToWatch
    type: artifactset
    artifact_type: CLIENT_EVENT
    sources: TRUE
    default: |
      Artifact
      Windows.Detection.PsexecService
      Windows.Events.ProcessCreation
      Windows.Events.ServiceCreation

  • VQL conversion function: LET X <= SELECT * FROM parse_csv(filename=X, accessor='data')

  • UI form component:

[ xml ]

  • Description: Accepts an XML document and parses it.

  • VQL conversion function: LET X <= parse_xml(file=X, accessor="data")

  • UI form component: same as string type

[ yaml ]

  • Description: Accepts an YAML document and parses it.

  • VQL conversion function: LET X <= parse_yaml(filename=X, accessor="data")

  • UI form component: same as string type

[ starlark ]

  • Description: Compile a starlark code block. Returns the *tools.StarlModule data type.

  • VQL conversion function: LET X <= starl(code=X)

  • UI form component: same as string type
