Export & Imports

export (notice the singular) and imports (notice the plural) work together to allow artifacts to share VQL with each other. This allows us to write more concise and more consistent artifacts with reusable VQL.

Artifacts can import the export section from other artifacts using the imports field’s specification, which is a list of artifact names.

The VQL compiler automatically inserts all VQL statements in the export section of each imported artifact before each source . This allows any functions or variables defined in the export sections to be visible to importing VQL queries. This makes it ideal to define reusable VQL code that can be shared by multiple artifacts.

name: Artifact1description: ...imports:- Artifact2- Artifact3export: |LET x <= SELECT ...sources:...name: Artifact2description: ...imports:- Artifact3export: |LET foo <= SELECT ...sources:...name: Artifact3description: ...imports:- Artifact1export: |LET bar <= SELECT ...sources:...
VQL reuse with export/imports

Any type of artifact can import the export section from any other type of artifact - it’s not constrained by artifact type. So a notebook template (artifact type:NOTEBOOK) can simultaneously import the exports from a CLIENT type artifact and a SERVER_EVENT type artifact. Any export field in any artifact in the artifact repository is available to be imported by any other artifact.

As you will see below, you can imagine this as artifacts implicitly “importing” their own export section. That is, the VQL stored in export can (and usually is) used by the artifact itself, which makes the export section a very useful place to put VQL utility queries, even if you don’t intend other artifacts to import them. For example, if your new artifact has multiple sources and each one repeats the same queries –perhaps as custom VQL functions– then it might be better to move those to the export section where a single instance of the queries produce results that can be shared by all the sources.

How export is processed

To illustrate how export is processed, let’s create the following trivial artifact:

name: RandomNumberGenerator
description:
parameters:
  - name: RangeLimit
    type: int
    default: 100
export: |
  LET RandomNumber <= rand(range=RangeLimit)
  SELECT "Will this print?" AS Message FROM scope() WHERE log(message="%v", args=Message)
sources:
  - name: FirstSource
    query: SELECT RandomNumber, RangeLimit FROM scope()
  - name: SecondSource
    query: SELECT RandomNumber, RangeLimit FROM scope()

If you then collect the artifact (remember, it’s a CLIENT type artifact by default) you should see results similar to this:

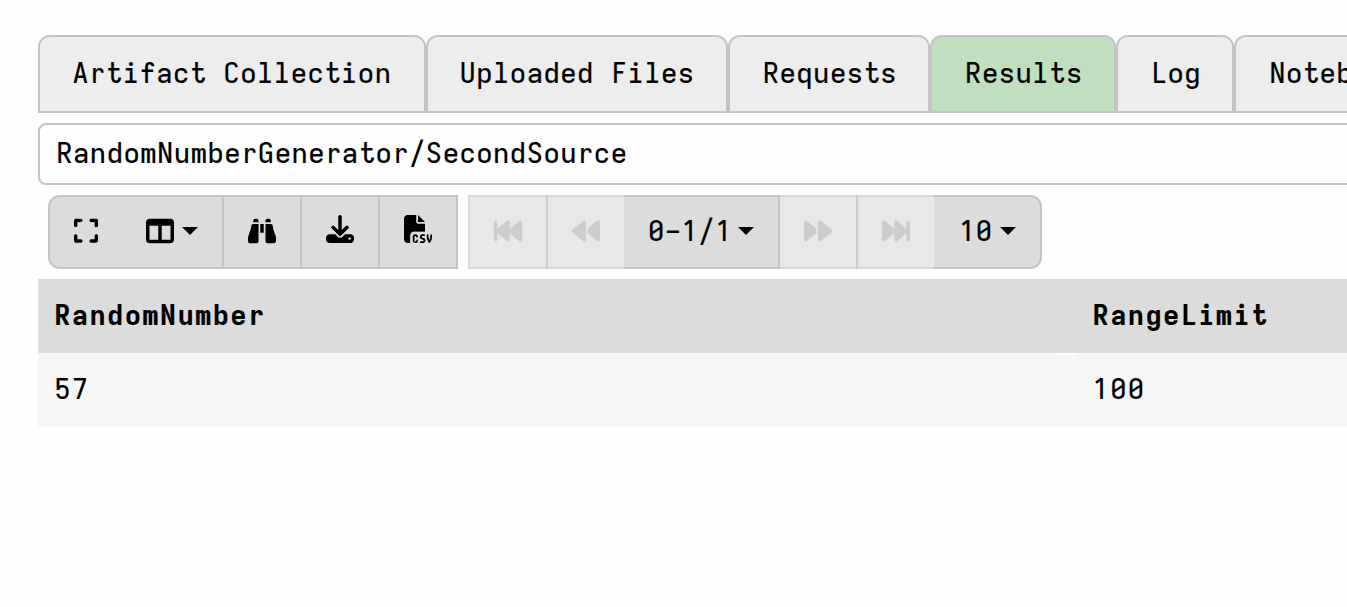

RandomNumberGenerator Results
RandomNumberGenerator Results

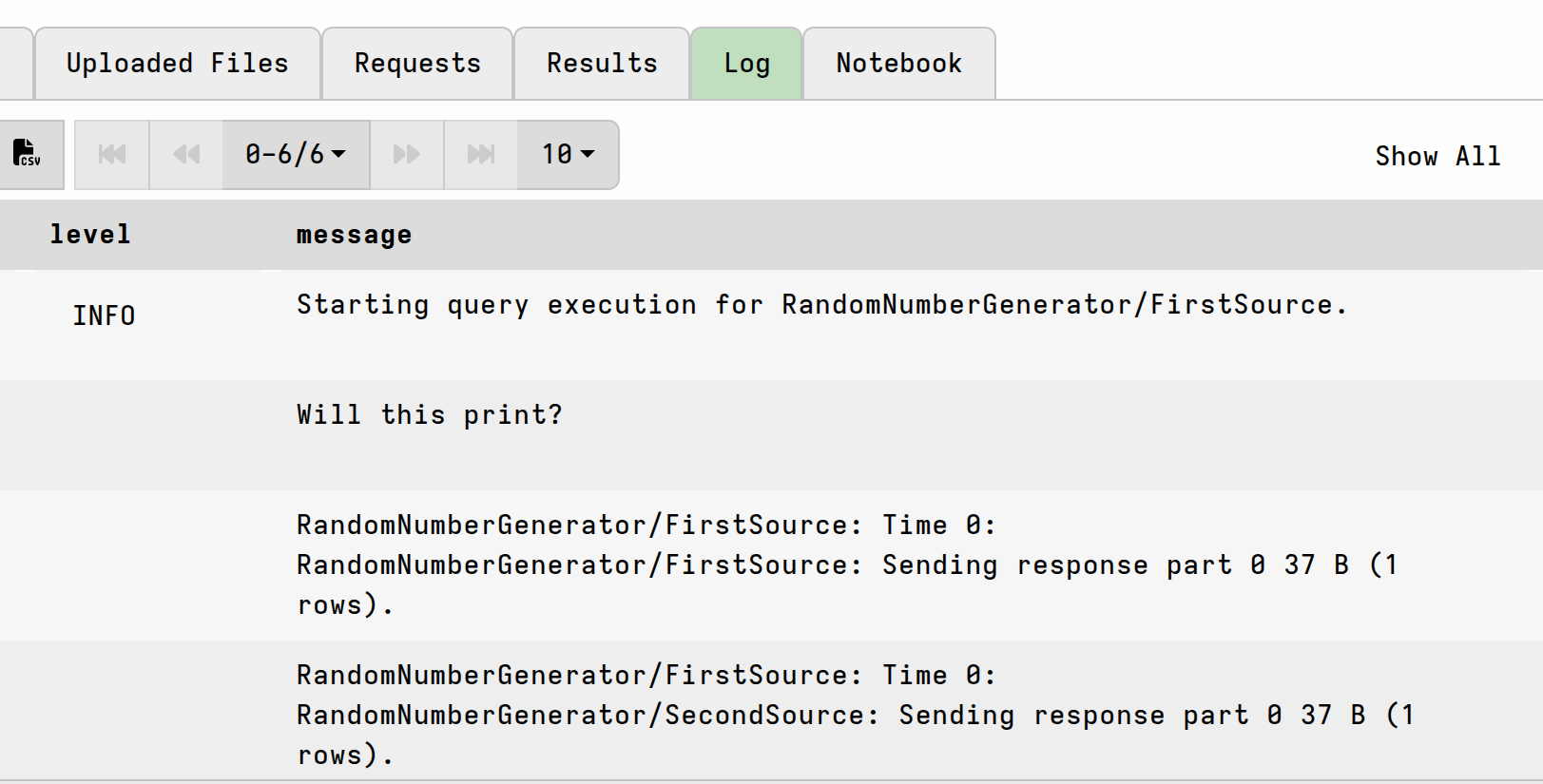

RandomNumberGenerator Log
RandomNumberGenerator Log

So what does that tell us?

  • RandomNumber was generated in the export section. This tells us that the VQL in export was executed first, before the VQL in sources.

  • RandomNumber used the value from the parameter RangeLimit. This tells us that VQL in the export section had access to the artifact’s parameters.

  • The value of RandomNumber in both sources is the same. Therefore we can deduce that the export section only ran once (and this is actually related to the sources running in series, due to the absence of source preconditions ) since both sources got the same value for RandomNumber.

  • The Message field defined in the export section does not show up in the results, but due to to the log() function it does appear in the collection logs. This is because results of VQL queries (i.e. SELECT statements) in the export section do run, but are only useful if they are assigned to a variable. The log message also appears only once, confirming that our export section only ran once.

To summarize:

  • VQL in the export section is always run (at least once) when the artifact is collected. If any of the sources have preconditions then the export section’s VQL will execute once for each source (parallel execution ). In the absence of any source-level preconditions, the VQL executes once and all sources have access to the same results.

  • Unlike sources, the export section’s VQL doesn’t directly produce results. The results need to be made available to the sources as variables if you want sources to be able to work with the results. There’s not much point to bare queries (SELECT statements) in export unless they are assigned to variables, however they are not disallowed.

  • VQL in the export section has access to the artifact’s parameters.

In the example above, the export VQL refers to an artifact parameter, RangeLimit. While this demonstrated that parameters are available to queries in export it’s really a bad idea in practice because any other artifact importing from this one would fail since it would know nothing about that parameter. In real life, if you needed to reference a parameter, you would need to ensure that your queries in export had a conditional fallback value so that other artifacts could make use of your VQL. Alternatively, the artifacts importing the VQL would need to ensure that they also provided the referenced parameter themselves.

How imports are processed

To examine how imports operate, let’s now create 3 new trivial artifacts: two that export and one that imports.

name: RandomGreeting1
export: |
  LET Greeting <= "hello!"
  LET LogIt <= log(message="%v", args=Greeting, dedup=-1)

name: RandomGreeting2
export: |
  LET Greeting <= "goodbye!"
  LET LogIt <= log(message="%v", args=Greeting, dedup=-1)

name: RandomGreeting3
imports:
  - RandomGreeting1
  - RandomGreeting2
export: |
  LET Greeting <= "sayonara!"
  LET LogIt <= log(message="%v", args=Greeting, dedup=-1)
sources:
  - query: SELECT Greeting FROM scope()

Notice that the first 2 artifacts have no sources. They could have sources but here we don’t actually care what they do. But it’s also interesting because it means that those first 2 artifacts can’t be collected (at least not via the GUI) and it raises an interesting use case for such artifacts: sourceless artifacts , which can be useful containers for storing reusable VQL snippets.

If you collect the artifact RandomGreeting3 you should see results similar to this:

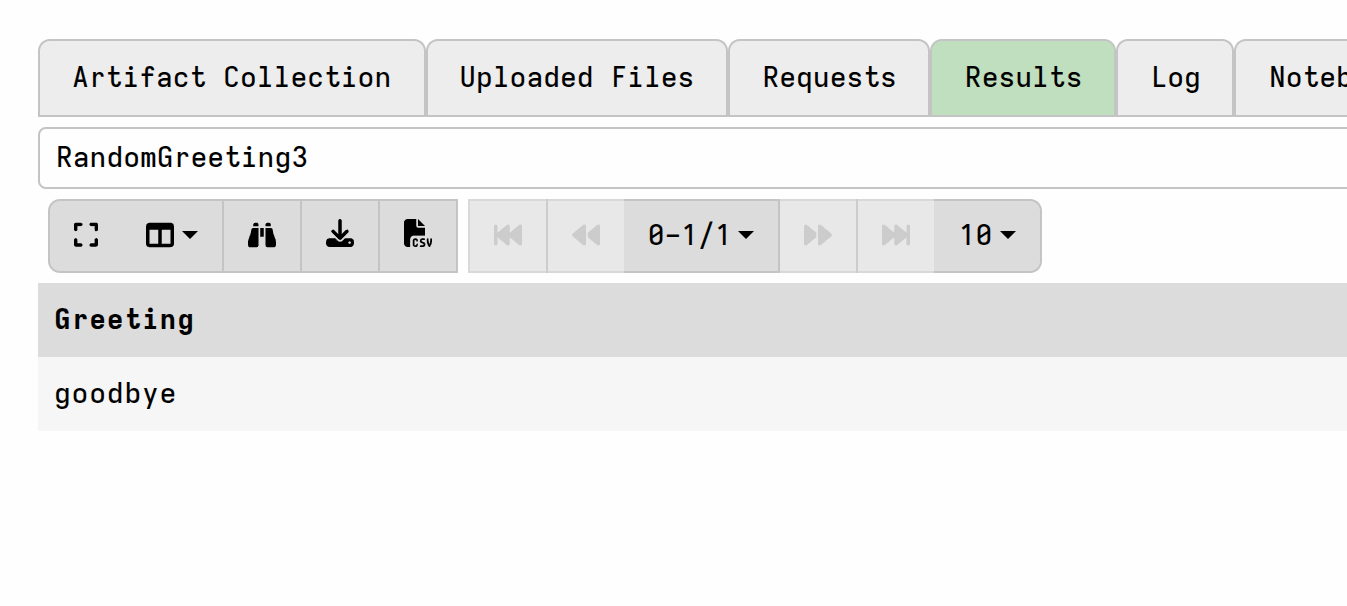

RandomGreeting3 Results
RandomGreeting3 Results

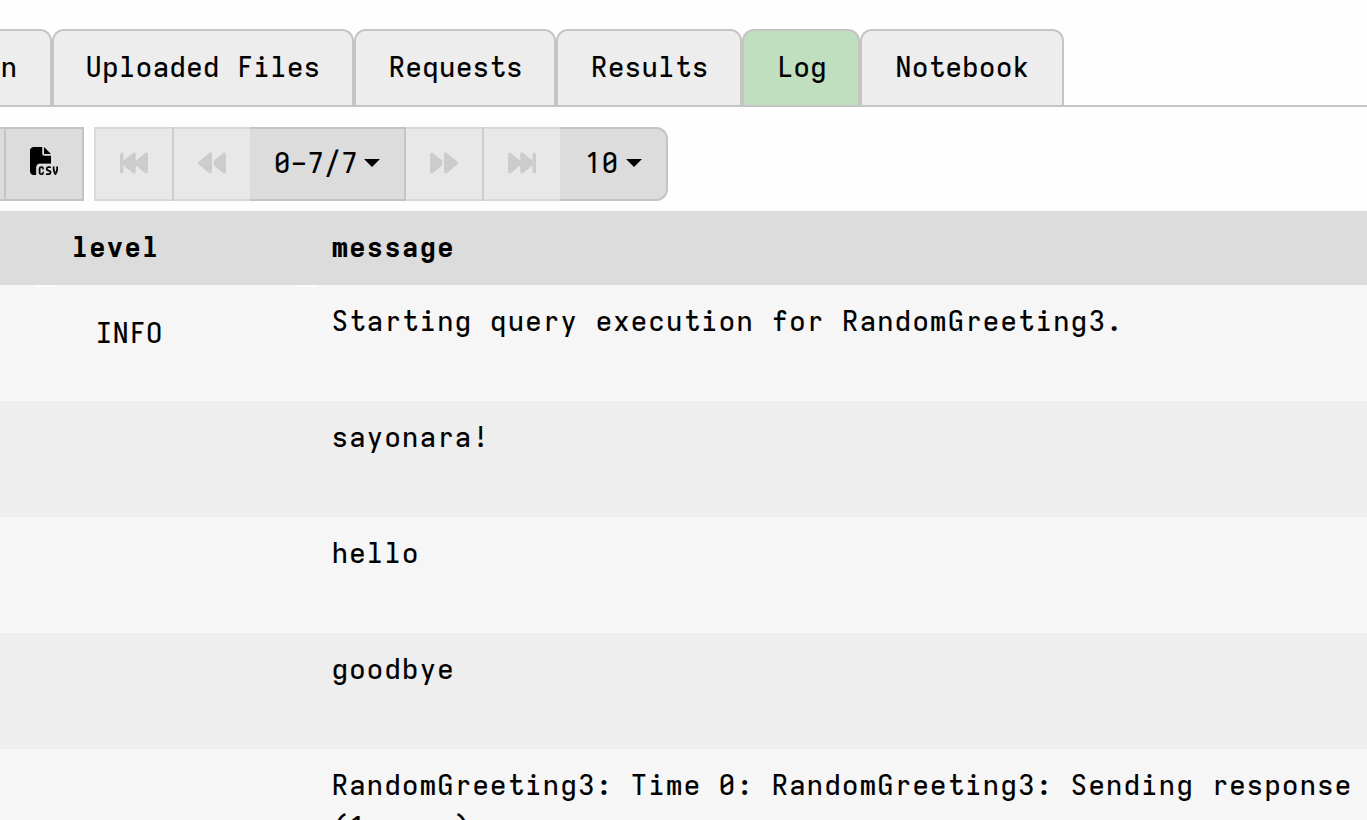

RandomGreeting3 Log
RandomGreeting3 Log

So what does that tell us?

  • The artifact imported the export sections from the first 2 artifact before running.

  • The artifact also ran it’s own export section’s VQL.

  • The Greeting variable was updated with each LET statement, ending up having the value goodbye.

Basically, the export section and the imports from the other 2 artifacts were concatenated like this:

-- from RandomGreeting3
LET Greeting <= "sayonara!"
LET LogIt <= log(message="%v", args=Greeting, dedup=-1)
-- from RandomGreeting1
LET Greeting <= "hello!"
LET LogIt <= log(message="%v", args=Greeting, dedup=-1)
-- from RandomGreeting2
LET Greeting <= "goodbye!"
LET LogIt <= log(message="%v", args=Greeting, dedup=-1)

The 3 log messages were emitted (once) as it ran and the final value of Greeting was goodbye, which is what was passed to the single source in the RandomGreeting3 artifact.

Note that the ordering is preserved:

  • export
    • RandomGreeting3
  • imports
    • RandomGreeting1
    • RandomGreeting2

If our artifact had 2 sources, and if at least one of them had a precondition, then the above VQL would have executed twice due to parallel execution mode being triggered by the presence of the precondition.
