Basic Artifact Fields

Understanding the most commonly used artifact fields is crucial for working with artifacts. These are the ones you really need to know about. This page outlines the most commonly used top-level artifact fields and explains how to use them.

Less frequently used fields that deal with more advanced functionality are described separately here .

Summary

These fields are the basic building blocks of most artifacts.

Artifact Identity Fields

These fields identify and characterize the artifact.

[ name ]

The only field that is required for an artifact is its name. Of course we will usually want our artifacts to have more than just a name, although there are special cases where not much else is required.

Artifact names must be unique within the org’s artifact namespace .

Naming rules

1. The artifact’s name can only consist of alphabetic characters (upper or lowercase), digits, and the characters _ (underscore) and . (dot).

2. The name cannot contain -, spaces, or any other special characters.

3. In addition, the artifact name and the parts of an artifacts name (which are separated by a .) must start with an alphabetic character.

Naming conventions

As you’ll see, most of the current artifacts tend to use CamelCase, although this is just a convention that has developed organically. You are free to use your own naming convention for your own artifacts.

By default when you create a new artifact in the artifact editor , it will add the prefix Custom. to the name. This convention is usually helpful, but if you choose not to use it then that’s fine too. If you filter for custom artifacts on the Artifacts screen, then you will still see all the custom ones regardless of their name.

Artifacts imported from the Artifact Exchange or other sources may, by default, have a prefix added to their names. But again this is completely optional (it’s implemented through the import artifact’s VQL actually and configurable by an artifact parameter), and all imported artifacts are internally marked as being custom artifacts anyway.

How artifact names translate to file and folder structure on disk

Each artifact is stored as a YAML file on disk in the datastore folder. The root org’s custom artifacts are stored in the folder artifact_definitions in the root of the datastore. Custom artifacts for orgs are stored in their own artifact_definitions folder, which exists for each org that you create.

For example, with the following 3 artifacts…

Custom.Artifact.Name
Custom.Windows.LastUser
Lab01.MyArtifact

we will have the following file and folders in the artifact_definitions directory on disk:

artifact_definitions
├── Custom
│   ├── Artifact
│   │   └── Name.yaml
│   └── Windows
│       └── LastUser.yaml
└── Lab01
    └── MyArtifact.yaml

When reading artifact YAML files from disk, for example when using the --definitions CLI flag or when using artifact_definitions_directory in the config, then the folder structure and file names don’t matter - Velociraptor will read all *.yaml (or .yml) files, parse them, and get the artifact name from the name field. However if you edit such artifacts in the GUI and then save them, then the saved copy will be stored in the datastore using the structure as described above.

The name is case-sensitive. That is Custom.MyArtifact and custom.myartifact will be saved as 2 distinct artifacts on disk and will appear separately in the GUI.

The name field is searched when using the search filter on the Artifacts screen.

[ aliases ]

Aliases are other names by which the same artifact is known.

For example, if we have an artifact named Generic.Detection.Yara.Glob which can be used on any platform, then we might like to have an alias for each platform so that this artifact will be included in the results when anyone does a search for “Windows.Detection.*”.

Aliases occupy the same artifact namespace as the name field. This means that aliases cannot conflict with names of existing artifacts or other aliases. Each alias must be a unique name.

name: Generic.Detection.Yara.Glob

aliases:
  - Windows.Detection.Yara.Glob
  - Linux.Detection.Yara.Glob
  - MacOS.Detection.Yara.Glob

The above example will show as 4 separate artifacts in the Artifacts screen. Selecting one of the aliases and editing it will edit the single underlying artifact. Only the original named artifact is saved on disk.

This field is a YAML sequence (list) because an artifact can have several aliases.

The aliases field is searched when using the search filter on the Artifacts screen.

[ type ]

The artifact type field is mainly used to determine where the artifact can be used in the GUI, with the exception of the INTERNAL type.

This field categorizes the artifact into one of the six available types:

• The CLIENT type is the most commonly used. This is also the default type if the field is not specified. Artifacts of this type can be collected on clients.

• The CLIENT_EVENT type establishes client event queues on the server, and then also includes VQL which is sent to the client to generate data that will be sent to the associated client event queue.

• The SERVER type is mainly used for server-side administrative tasks, for example:

  • creating new orgs
  • importing artifacts from external sources
  • pruning old clients and cleaning up associated data that’s taking up space on disk.

• The SERVER_EVENT type establishes server event queues Typically artifacts of this type also contain VQL to process and act upon events arriving in the associated event queue.

• The INTERNAL type is generally only used for system event queues (for example, for master/minion communications), and is rarely used for custom artifacts. This type of artifact is similar to the SERVER_EVENT type but the data not written to disk to ensure maximum performance at the cost of data permanence. This artifact type is still visible to users since there are some situations where there’s a need to monitor the associated queues and the visibility of the associated artifacts advertises their existence. Most such artifacts have the word “Internal” in their name .

• The NOTEBOOK type is a relatively recent development. Artifacts of this type are also called Notebook Templates , and are used when creating new global notebooks. As with the other artifact types these also support parameter, imports, exports, tools, etc.

Although the value of the type field is not case-sensitive, for historical reasons most artifacts use uppercase for the field’s value, but this is not a requirement.

All artifact types (with the exception of the INTERNAL type) are available as search filters on the Artifacts screen.

Artifacts are hidden from the artifact selection lists in the GUI if they have no sources . This is to prevent users from running artifacts that will not return any data, and avoid the confusion which might arise if these were selectable in the artifact selection lists.

Informational fields

There are a few informational fields that are used to hold descriptive “metadata” about the artifact. Because these fields are purely for human consumption they are all optional, but still highly recommended as they allow other users to understand the purpose, usage, and origin of the artifact. For artifacts shared with the community it is helpful to be able to contact an artifact’s author to report bugs or discuss issues.

[ description ]

The description field is used to include prose describing the purpose of the artifact and any other usage information that might need to be brought to the attention of users.

This field supports most CommonMark Markdown formatting, for example headings, bold/italic text, lists, tables, etc. However when rendering the markdown some sanitization is applied for security reasons, so it’s possible that not all markdown elements will be rendered in the GUI.

The description field is searched when using the search filter on the Artifacts screen.

See Artifact Writing Tips for some suggestions on writing good descriptions for your artifacts.

[ author ]

The author field allows for a single string in which you can put your name, company name, social media handle, email address, etc. If you decide to share your artifact publicly then you should carefully consider what information you want to include in this field.

The author field is not searched when using the search filter on the Artifacts screen.

[ reference ]

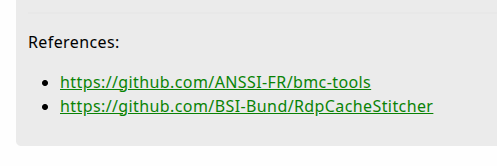

The reference field accepts a sequence (list) of one or more strings. These strings are parsed and displayed as markdown in the GUI, so if you add a raw URI it will be rendered as a clickable hyperlink.

Since the strings are rendered as markdown, you can also use markdown’s link syntax - [My Example](https://example.com) - to make your links prettier.

This field is typically used for links to websites that the artifact author thinks are helpful or relevant further reading. However you could use the reference field to store other data such as additional contextual information for each item, or data such as MITRE ATT&CK® ID tags, or more complex markdown which can include headings, paragraphs, tables. But the most common use case for this field is just simple links to internet resources.

Since the field is a YAML sequence, this is how you would specify it for simple or complex items:

reference:
  - https://golearn.here
  - https://nowgohere.2learn.com - with some **extra** info
  - |
    Items can contain \
    multiline strings \
    too.

We also accept the field name references (with an ’s’ on the end) which is an alias for this field, however reference is preferred.

The reference field is not searched when using the search filter on the Artifacts screen.

Parameters and Sources

Parameters and sources (and less frequently also imports & exports ), are the main components in most artifacts, since these contain the VQL that produces the data we’re interested in.

[ parameters ]

Parameters are essentially VQL variables. That is they are accessible in VQL as variables, and their data type will correspond to the parameter’s type. When creating a collection against a client or a hunt targeting many clients, users have the option of customizing the parameters for each artifact.

The parameters field is not searched when using the search filter on the Artifacts screen.

Since parameters are a relatively large topic, we cover them separately in more detail here .

[ sources ]

An artifact may contain one source, several sources, or no sources .

Each source represents a single SELECT statement and potentially multiple LET statements. Ultimately each source returns a single table of results. If an artifact wishes to return multiple tables, it should define multiple sources.

The sources field is not searched when using the search filter on the Artifacts screen.

For a more detailed discussion of sources see the Sources section.
