Advanced Artifact Fields

These are less frequently used fields which deal with more advanced artifact functionality.

Summary

Fields

[ column_types ]

The column_types field allows you to customize how specific columns (i.e. fields returned by a queries in an artifact) are displayed in the artifact’s results tables in the GUI. That is, this field allows you to define formatting for specific columns that are returned by the artifact.

This is not mandatory but helps the GUI understand the data better, allowing it to render types like timestamps appropriately or display binary data with a hex viewer if the column type is specified as binary.

If the column type is not specified for a particular field then Velociraptor will try to infer or guess the appropriate display format based on the data in the first row of the query results.

It is particularly important to specify the column types if your artifact might produce rows with varying fields, because the GUI could potentially omit or incorrectly display columns if they don’t appear in the initial rows returned.

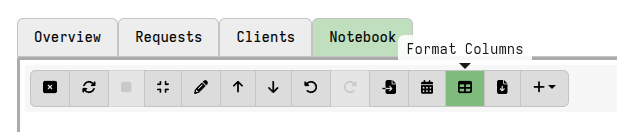

In the GUI you can override the column types using the “Format Columns” button in a notebook. This is also a good way to test column types while you are developing your artifact.

column_types is a YAML sequence (list) and supports the following subfields:

• name: the column name to apply the formatting to.
• type: one of the allowed formatting types (see below).
• description (optional): freeform text description.

Example:

column_types:
  - name: ChildrenTree
    type: tree

Formatting types

These are the types currently supported:

• string
• number
• mb
• timestamp
• nobreak
• tree
• url
• url_internal
• safe_url
• flow
• preview_upload
• download
• client
• hex
• base64
• collapsed

[ precondition ]

A VQL query to be evaluated prior to using this artifact. If the query returns no rows then the artifact is skipped. If it produces ANY rows then the artifact will be used.

Preconditions are also supported in sources, in addition to the artifact-level precondition.

See preconditions for further details of how this field works.

[ export ]

The export field allows you to specify a block of VQL which can be imported by other artifacts (using imports, described below).

VQL in this field is run prior to VQL in the sources section, and the results are made available to all sources. This means that such VQL can be used to define variables, custom functions, or modify parameter values prior to running each source.

See export & imports for further details of how this field works.

[ imports ]

The import field defines a list of artifacts from which to import their export sections.

The imported VQL is run after the VQL in the export section, and before the VQL in each source.

See export & imports for further details of how this field works.

[ resources ]

You can define default resource limits directly within the artifact’s YAML definition using the resources section. This allows tailoring resource control per artifact. These defaults are then populated in the GUI when a collection is created.

When you create a new collection or hunt, you can specify resource limits in the “Specify Resources” tab. Settings made in the GUI override the limits defined in the artifact itself.

If you define resources in your artifact, you only need to specify the subkeys relevant to the resources you want to limit. Default values will apply to any subkeys not specified and, as mentioned above, users still have the opportunity to override these limits in the GUI before collecting the artifact.

The following resource limit settings are currently available in artifact definitions:

• timeout
• ops_per_second
• cpu_limit
• iops_limit
• max_rows
• max_upload_bytes
• max_batch_wait
• max_batch_rows
• max_batch_rows_buffer

[ tools ]

A list of third-party tool definitions, which will be used by the artifact. These can be executables or any other file that the client will need when it runs the VQL in the artifact’s sources.

Tools can be defined within an artifact or, alternatively, by using the inventory_add VQL function.

The inventory service is responsible for managing tools within Velociraptor artifacts. The inventory stores information about the various third-party tools known to Velociraptor. You can view this tool information by running the following query in a notebook.

SELECT * FROM inventory()

A tool is uniquely identified by its name and version.

If the full tool definition is provided in another artifact, or has been defined via VQL, and therefore already known to the server, then you may only need to provide the tool’s name and optionally its version in subsequent artifact definitions.

A tool may be served by Velociraptor itself, or from an external URL. This decision is configured by the serve_url setting..

Previously used tools are cached on the client. Before using a cached tool, the client verifies that the hash is still as expected (as provided by the server). If the hash verification fails then the client will download a new copy, and again verify the hash.

These are the subfields available for defining each tool:

• name: The unique identifier for this tool
• version: Specify a version for the tool. This allows multiple versions of the same tool to be used.
• url: The URL to fetch the tool from when we download it the first time, or when we update it.
• serve_locally: If set, the tool will be served locally from the server - otherwise the endpoint will download the file by itself from the url above. The URL for the client to download the tool from is generated using the config setting Client.server_urls on the server. Currently only the first URL from server_urls is used, and tools are only served over HTTPS (not WSS).
• github_project: As an alternative to a url we allow scraping of GitHub releases using the github API. When this method is specified, the file will always be served locally.
• github_asset_regex: A regex to select a specific file from the available GitHub releases.
• expected_hash: Hex encoded sha256 hash of the expected hash of the file. When the server downloads the file it will check it against the expected hash and refuse to store or serve a file with an incorrect hash. This is a way to pin the dependency into the artifact definition to protect against supply side attacks.

Examples:

tools:
  - name: VelociraptorWindows
    url: https://github.com/Velocidex/velociraptor/releases/download/v0.74/velociraptor-v0.74.3-windows-amd64.exe
    serve_locally: true
    version: 0.74.3

Will download the specified binary, store it tagged with the specified version number, and serve it to clients from the Velociraptor server.

tools:
  - name: OSQueryWindows
    github_project: Velocidex/OSQuery-Releases
    github_asset_regex: windows-amd64.exe

Clients will download the binary matching the github_asset_regex directly from the GitHub repo, since serve_locally is not specified.

Usually tools are used together with the built-in Generic.Utils.FetchBinary helper artifact. This artifact ensures that the defined tools are downloaded to the endpoint, if required, and performs other housekeeping functions. While using this artifact is highly recommended, it is not mandatory. When an artifact contains tool definitions, the following variables are added to the scope for each tool, which allow you to perform your own tool selection logic, downloads (for example using http_client), and hash verification:

• Tool_<name>_HASH
• Tool_<name>_FILENAME
• Tool_<name>_URL

The Generic.Utils.FetchBinary artifact makes use of these variables when provisioning the tool on the client.

[ impersonate ]

For scenarios where you need to allow lower-privileged users to perform specific tasks that typically require higher permissions (like EXECVE for quarantine actions), the impersonate directive allows users with limited permissions (e.g., COLLECT_BASIC) to launch the artifact, which then executes the privileged actions under the impersonated user’s authority, effectively granting permission only for that specific artifact’s operation. This provides a way to safely delegate specific higher-privilege tasks without granting the launching user broad permissions like EXECVE which could provide full server shell access. You can also mark the artifact as “basic” using artifact_set_metadata() to allow users with COLLECT_BASIC permission to see and collect it.

This is similar to the Unix suid mechanism or the Windows impersonation mechanism in that it allows artifact writers to craft a curated set of powerful artifacts that can be run by low privileged users in a controlled way.

See Artifact Security for more information.

[ required_permissions ]

Specifies a list of permissions that a user must possess before the server will allow them to schedule or collect the artifact. This check is performed by the server when a user attempts to launch an individual collection or hunt that includes the artifact.

The purpose of required_permissions is to restrict access to artifacts that can perform sensitive or potentially dangerous operations. Artifact authors determine which artifacts require additional permissions and add this field accordingly. For instance, artifacts that allow running arbitrary commands on an endpoint often require the EXECVE permission. Users who lack the required permissions cannot launch the collection of that artifact. This helps in enforcing a least privilege model by preventing users with lower roles, such as Investigator, from running potentially harmful artifacts if they do not have the necessary permissions.

It’s important to note that the required_permissions check is only performed on the artifact being launched. It does not apply to any dependent artifacts that the launched artifact might call. This design is deliberate, allowing administrators to create “wrapper artifacts” or curated versions of dangerous artifacts that can be used safely by lower-privilege users.

A user with the ARTIFACT_WRITER permission can modify the artifact definition itself. This capability allows them to potentially bypass the required_permissions model by removing or changing the required permissions on the artifact.

For more information see the Artifact Security and Roles and Permissions sections.

[ implied_permissions ]

A list of permissions implied by this artifact. This is used by the artifact writer to declare what additional permissions the artifact provides on the client, which may be beyond the permissions which the user has on the server.

On the client, artifacts do not run with ACL enforced, therefore they can do anything, including actions which the user launching the artifact does not have permissions for. For example, the user may have the investigator role which does not have EXECVE. However, when launching this artifact on the client, the artifact will be able to run actions requiring the EXEVE permission (because there is no ACL enforcement on the client).

Therefore we say this artifact implies the user has EXECVE - this is safe if the artifact takes steps to ensure the user does not have arbitrary control over what to execute, for example, if the artifact launches a tool with restricted command line args.

This field is only used by the static analysis engine to ensure that the implied permission is properly controlled. It represents a promise by the artifact writer that this additional permission is safely handled within this artifact.

[ reports ]

Historically this artifact section contained templates that were used to produce HTML reports. Reports have been deprecated in favor of notebooks , however this is still used by some internal artifacts.
