Memory Analysis with Velociraptor - Part 2

In Memory Analysis with Velociraptor - Part 1 we looked at how to access the RAM with Velociraptor. In this post, we look at how to find fileless malware.

0. Abstract

Commonly, in an incident response scenario one has a live attacker in the network but does not know which systems are compromised. Networks can be quite large and include >10.000 systems. Additionally, attackers nowadays use Command and Control (C2) frameworks running in Random Access Memory (RAM).

Our approach finds the C2 frameworks without knowing where the attacker is, without dumping the RAM and scaling to >10.000 systems.

Our custom Velociraptor Query Language (VQL) artifact Windows.Memory.Mem2Disk compares the code in the .text segment of every process to the code of the executable on disk. Leveraging Velociraptor, we can execute this artifact on >10.000 systems simultaneously and we can analyze the RAM live without actually dumping it.

1. Introduction

The most difficult to detect cyber attacks nowadays are RAM-only attacks or fileless attacks. As most security tools focus on detections in persistent storage (hard disks), attackers avoid them by leveraging the RAM. Commonly, malicious code is injected into legitimate processes live in RAM.

We already detected fileless malware in a proof-of-concept implementation . Our goal is now to improve detection and to detect fileless instances of professional C2 frameworks live without dumping the RAM across a network of computers.

2. Background and Existing Techniques

2.1. Process injection

Process injection is a code injection technique used to execute arbitrary code within the address space of another, possibly legitimate process. The purpose is to evade process-based defenses and escalate privileges. There are many ways of achieving this, e.g.:

• Process hollowing is a sub-technique of process injection. It works by creating a process in a suspended state, unmapping its memory, and then replacing it with custom (malicious) code. The custom code is executed under the identity of the previously created process, hollowing it.

• Thread Execution Hijacking is comparable to process hollowing but instead of creating a new process, it controls a live thread in an existing process. To accomplish this, it is necessary to pause the running thread.

• Inline hooking is a method used to intercept calls to functions. The first few bytes of the target function in memory are overwritten with a jump instruction, redirecting the execution flow to a custom function.

• With DLL injection an adversary modifies an existing Dynamic-Link Library (DLL) or adds a new DLL to an existing process. An example for a DLL modification is DLL hollowing analogous to process hollowing while new libraries can e.g. be added by manipulating the Import Address Table (IAT) of the executable.

A full list of process injection techniques can be found at Mitre: Process injection .

2.2. Volatility & Malfind

One of the main existing tools to analyze the RAM is volatility . It requires creating an offline RAM dump first with other tools like WinPmem which takes considerable time. Afterwards, this dump can be analyzed with volatility.

Most commands of volatility require in-depth knowledge of the RAM and the operating system. An exception is malfind, which searches for memory pages that are writable and executable. The hypothesis is that memory pages are either writable or executable. If executable pages are writable again, it means an injection took place and the page is flagged.

2.3. Hollowshunter

Hollowshunter scans the RAM of one machine for various malware injection techniques. It uses PE-sieve , a tool to scan a single process.

2.4. MemProcFS

MemProcFS provides a filesystem-like view of the RAM. This way, files can easily be accessed. However, detection of malware is mostly left to the analyst.

3. Methodology

To test against C2 frameworks, we use the most common open source C2 frameworks and inject shellcode (e.g. an implant) into a legitimate process. The utilized C2 frameworks are Sliver , Havoc , and Mythic .

Our test setup consists of two virtual machines, a Kali machine (attacker) and a Windows 10 host (victim). Both machines can reach each other and the anti-virus (Windows Defender) is turned off. Anti-virus bypasses are not the focus in this article and were therefore excluded.

3.1. Sliver Setup

We create a Sliver HTTP agent and deploy it on the victim computer. Afterwards, we create a beacon and injected it using execute-assembly --ppid <ppid> --process <process.exe> ./beacon.exe.

3.2. Havoc Setup

After creating and executing the Havoc agent, we use shellcode inject x64 <pid> /path/to/shellcode.bin to inject into a process.

3.3. Mythic Setup

Similar to Sliver and Havoc, we create a Mythic agent and we deploy it. We use the Apollo agent and http C2 profile.

To inject into a process we use shinject -PID <pid> -File /path/to/shellcode.bin.

3.4. Shellcode

The shellcode used in the tests is created using the Python pwntools library with the following script.

from pwn import *

context.update(arch="amd64")
path = "C:\\Program Files\\example\\example.exe"
pay = (asm(shellcraft.amd64.windows.winexec(path)))

with open("shellcode.bin", "wb") as bf:
    bf.write(pay)

We simply start a random executable with the shellcode. Usually, an attacker would start a beacon or backdoor.

4. Technique

4.1. Velociraptor

Memory Analysis with Velociraptor - Part 1 already described in depth how to access the RAM with Velociraptor. This works live with the accessors of Velociraptor, so we do not need to dump the entire RAM. It scales up to thousands of computers, therefore, we can detect C2 frameworks in entire networks without previously knowing which machines are infected.

Our detection technique, Windows.Memory.Mem2Disk, compares the .text segment of running processes to the executable on disk. Any deviation indicates suspicious behaviour, i.e. mostly RAM injections.

4.2. BaseOfData and ASLR

While this detection sounds trivial, code in RAM and code on disk should not match. Address Space Layout Randomization (ASLR) and Relative Virtual Address (RVA) introduce offsets to the RAM.

Interestingly, in our experiments, most of the time code in RAM perfectly matched the code on disk. As it turns out, modern compilers and linkers nearly exclusively use relative jumps instead of absolute ones.

The only common exception we found in our experiments was the RVA BaseOfDate of 32-bit executables (see Microsoft and 0xrick for details).

In the first stage of our experiments, BaseOfData introduced changes to the .text segment of one byte. For example, in our analysis of firefox.exe process, we observed the differences shown in Table 1. Since BaseOfData is a relative address, the offset between code and memory content is always the same (as shown in the table). It actually represents Address Space Layout Randomization (ASLR) and, thus, while we only observed one byte offsets, it is actually a 32-bit offset. BaseOfData only exists for 32-bit programs, which is why we only observed these offsets for 32-bit binaries.

Table 1: 32-bit Firefox BaseOfData offsets

Thanks to Mike Cohen we were able to improve our VQL code, calculate the ASLR offset and ignore these false positives. Thus, eliminating false positives from ASLR as well as BaseOfData in one go.

Afterwards, none of the legitimate processes we analyzed were detected (see Table 2).

Table 2: Legitimate binaries with and without ignoring ASLR

5. Results

Additionally to legitimate binaries, we tested the (RAM-based) malware samples shown in Table 3.

Table 3: Tested malware samples and their detection

Injecting code into legitimate programs with all three tested C2 frameworks (Sliver, Havoc, and Mythic) is detected by Mem2Disk. Additionally, 21 further malware samples were successfully detected.

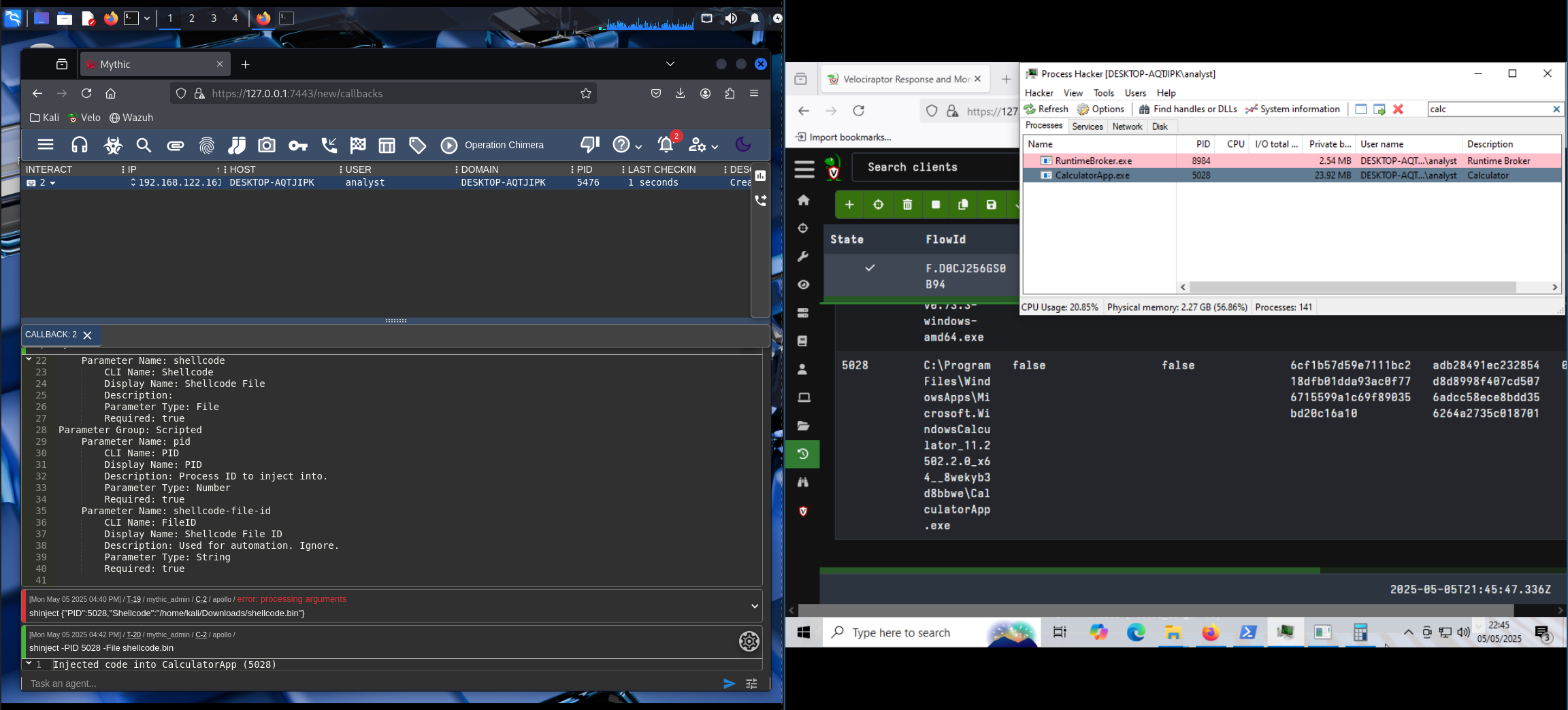

We usually injected into a running Calculator app. Figure 1 and 2 show screenshots of the detections for Havoc C2 and Mythic C2 respectively. The left side of the screen shows the attacker virtual machine while the right side shows the victim including the Velociraptor detection. Process Hacker was also displayed to show the PID of the Calculator app. As shown in the two screenshots, both times Velociraptor detects Calculator as compromised.

Figure 1: Havoc C2 Detection

Figure 2: Mythic C2 Detection

Table 4 shows our full evaluation. Numbers in brackets are the amount of samples in this category.

Table 4: Detection rates (numbers in brackets are amount of samples)

With these results, the true negatives (TN) are 35%, while the false positives (FP) are 0%. Also, the false negatives (FN) are 19%, and the true positives (TP) are 46%.

As shown in the equations below, the detection rate is 100.0%, while the sensitivity is 70.6%, and the accuracy is 80.8%.

$Detection\ rate = \frac{TP}{TP + FP} \times 100 = \frac{24}{24 + 0} \times 100 = 100.0$

$Sensitivity = \frac{TP}{TP + FN} \times 100 = \frac{24}{24 + 10} \times 100 = 70.6$

$Accuracy = \frac{TN + TP}{TN + TP + FN + FP} \times 100 = \frac{18 + 24}{18 + 24 + 10 + 0} \times 100 = 80.8$

Lastly, detections usually ran within 1-5 minutes, sometimes in under a minute depending on the system hardware. It scales to the maximum number of systems Velociraptor can handle in parallel (i.e. >10.000 machines).

6. Discussion

6.1. Evaluation

We tested Mem2Disk against available malware, own malware created using three well-known C2 frameworks, and benign software.

The results are quite promising and we were able to detect state-of-the-art open source C2 frameworks. When filtering out ASLR, Mem2Disk did not detect many false positives in our tests.

Our approach shows that it is possible to scale RAM analysis up to multiple systems without prior knowledge which systems might be affected.

Mem2Disk only detects RAM injections that are visible within the .text segment of a process or its libraries. Adding a new memory page or manipulating memory locations outside of the .text segment are not detected.

Thus, Portable Executable (PE) injections (T1055.002 ), threat execution hijacking (T1055.003 ), threat local storage (T1055.005 ), ptrace system calls (T1055.008 ), process hollowing (T1055.012 ), process doppelgänging (T1055.013 ), and ListPlanting (T1055.015 ) could be detected.

While Asynchronous Procedure Call (APC) injection (T1055.004 ), proc memory injections (T1055.009 ), extra windows memory injection (T1055.011 ), and Virtual Dynamic Shared Object (VDSO) hijacking (T1055.014 ) are currently not detected.

DLL injection (T1055.001 ) might be detected if program code or DLL code is changed (e.g. DLL hollowing) but is not detected if a DLL is loaded additionally (e.g. via Import Address Table (IAT)). IAT could be detected though, if the new code is added in memory to an existing library.

If malware removes itself from RAM temporarily or hooks the functions used by Velociraptor, it could still hide itself from Mem2Disk. We also observed that some of the false negatives ran pretty quickly, so we suspect that they were already finished when Velociraptor ran.

Lastly, there are legitimate tools - likely security tools - using similar functionalities, which would create false positives. We have not encountered them, since we do not have licenses for most of these tools, but analysts should be aware that security tools can trigger Mem2Disk detections.

6.2. Comparison to Other Tools

Volatility as the state-of-the-art memory forensics tool has a different focus to our implementation. Volatility aims to enable a forensic expert to deeply analyze one RAM dump. It does not scale to multiple RAMs and it relies mostly on the knowledge of the analyst. The most comparable plugin malfind searches for executable (and writable) memory pages like Mem2Disk however then analyzes those pages more thoroughly than Mem2Disk. So, Volatility is more capable than Mem2Disk but does not scale well.

MemProcFS per se is more of a RAM access tool than a RAM analysis tool. It enables the analyst to access the RAM through a browser but ultimately relies on the analyst to find malware with the exception of the findevil plugin. It is work in progress and currently only detects user-mode malware. It is comparable to Volatility, provides more options than Mem2Disk but cannot be executed on multiple machines easily.

Hollows Hunter and PE-sieve are the most comparable tools to Mem2Disk. They employ a variety of techniques to detect malware on one system and are more capable and in-depth than Mem2Disk. Hollows Hunter can also be executed via Velociraptor with the Windows.Memory.HollowsHunter plugin and scales to multiple machines.

In contrast to Windows.Memory.HollowsHunter, Mem2Disk is a Velociraptor-native plugin fully written in VQL and benefits from the parallelization of Velociraptor. No additional binary has to be uploaded to the client machines (unlike Windows.Memory.HollowsHunter), which also means Velociraptor can regulate the CPU load of Mem2Disk. As already mentioned, detections usually ran within 1-5 minutes, mostly in under a minute depending on the system hardware. Therefore, the performance overhead of Mem2Disk seems acceptable in a normal company network. Anti-virus scans in comparison would take considerable more time and are generally accepted.

In summary, Mem2Disk is useful for breadth search. For example when not knowing if or where fileless malware hides within a full network of more than a few machines. When analyzing known-compromised machines or only a few suspicious machines, the other mentioned tools give more details than Mem2Disk and should be preferred.

7. Conclusion

All in all, the blue team just stepped up. We are able to detect injected implants of common C2 frameworks live in RAM and scalable to thousands of machines in nearly real-time.

We also recommend memory forensics experts to think about scalability of their tools. Velociraptor enables memory forensics on multiple machines without dumping the RAM.

Happy detecting!

8. Acknowledgement

We would like to express our gratitude to Prof. Nicolas Wolovick for supporting this publication with advice and guidance and to Mike Cohen for improving our VQL code, giving feedback on the blog post as well as helping us understand the connection between RVA, BaseOfData and ASLR.
