Adaptive Collections with Velociraptor

I recently joined the great folk at Cyber Triage on a webinar to explore the new CyberTriage Velociraptor artifact . I was excited to be talking with them since I heard great things about Cyber Triage and really wanted to learn more about it.

One of the interesting features they presented was the concept of Adaptive Collection which I thought was quite neat.

In this blog post I will describe what Adaptive Collection means and how this really improves the state of the art in DFIR triage. I will also show how this is now implemented in Velociraptor and how you can use it today to improve your triage and investigation.

What is Triage collection anyway?

DFIR is all about trying to quickly determine what happened. In the distant past we used to acquire full disk images of systems so we can perform digital forensics on them. However, these days this is not possible:

• Storage sizes are very large - disks are just too large.
• In modern network intrusions we need to examine a large number of endpoints.

Today’s best practice is to actively hunt the network with a tool like Velociraptor to quickly gather specific, well targeted artifacts across a large number of endpoints.

Once the number of systems of interest is reduced, we may then perform Triage Acquisition for Preservation Purposes . We often need to delegate the Triage Acquisition step itself to others who have access to the system (for example Help Desk employees or system administrators).

Triage Acquisition has a number of goals:

1. To acquire as much relevant information to be able to determine what happened on the system. In many cases we only get one chance to perform triage acquisition, before the system is rebuilt and destroyed.

2. To perform this collection as quickly as possible. Some critical servers can not tolerate prolonged outages or heavy activity.

3. Triage collection should be as automated as possible. Ideally the person initiating the collection should not need to provide any input to the collection process. They may not be skilled in DFIR or have to make critical decisions under pressure.

These goals call for a high level of automation. Velociraptor’s offline collector is specifically designed to be fully automated - the operator simply needs to run it and a triage collection is made. The collection can be uploaded to the cloud or returned to the investigation some other way.

The main takeaway from this diagram is that it is difficult to iterate over the collection with the offline process. Initiating a new collection required repeating the entire process again with potential manual intervention.

Therefore it is desirable to collect as much as possible in the first place to minimize the need to go back and re-collect more data.

While it would be nice to collect as much as possible, we need to be speedy in our collection. Therefore we need to make some tradeoffs:

• The more files we collect the longer it takes and larger the collection gets. This makes it harder to handle more systems and transfer more data across the network.

• However, once the collection is done it is not always possible to go back and get more files. Sometimes systems are re-imaged and destroyed after the preservation step.

Current state of the art

One of the more popular artifacts to use with the offline collector is the Windows.KapeFiles.Targets artifact. This artifact uses target definitions from the KapeFiles project to collect files from the system. The project defines targets which are essentially search globs finding particular files on the system.

For example, the Windows Event logs are usually stored in C:\Windows\System32\winevt\logs\*.evtx. During a preservation triage acquisition, one would usually collect all those files.

Meta-Targets can also be defined so that when the user chooses to collect the BasicCollection target, Velociraptor will automatically collect the Event logs, Registry, MFT etc.

There are many KapeFiles targets collecting files related to many products and applications, however they are all essentially static globs. The Windows.KapeFiles.Targets artifact looks for files on disk from this static list of pre-determined globs.

Why is this not enough?

While this is artifact is a great start, it is usually not enough. Many of the forensic artifacts collected may point to other files that may be found on disk, and those files are not usually collected.

For example, consider the prefetch artifact in which Windows stores paths to previously run executables. While the location of the prefetch files themselves is well known (i.e. C:\Windows\Prefetch\*.pf), when an analyst examines these files, they may discover that they point at an executable potentially located anywhere on the disk.

During the analysis stage there is no way to know if the executable they point to is malicious or not. With the standard KapeFiles collections, the investigator needs to go back to the original system to get those files.

Another example is the Scheduled tasks XML files, normally located in C:\Windows\System32\Tasks\**. These files may launch executables periodically anywhere on the disk.

What is Adaptive Collection?

The idea of adaptive collection is that the collector itself performs the initial parsing phase and then decides itself to collect relevant files automatically.

In the example above, the user would collect the prefetch files, but the collector would parse each prefetch file automatically and check if the target file exists in the target location. For each target, if it is present, the collector will also collect it.

This way, when the analyst later examines the prefetch files, they can immediately determine what the binary executed was, without needing to go back to the original system.

Of course in the case of prefetch, it is possible that the target executable was deleted before the acquisition. In this case the adaptive collector can not find it. But this is also an important piece of information as the analyst knows that the executable is actually missing and there is no point trying to fetch it again.

The point of adaptive collection is to include files which may be relevant once the basic artifacts are parsed. This avoids needing to go back and re-collect additional files once the analysis is performed.

A useful side effect of this approach is that forensic artifacts are already parsed and analyzed, so there is no need for further post processing of bulk collected files. This simplifies the post-processing pipeline and speeds up analysis from a large number of systems.

The Windows.Triage.Targets artifact

The Windows.Triage.Targets artifact is compiled from many separate rules. Each rule specifies one or more targets - basically a single type of forensic artifact to acquire.

You can download the Windows.Triage.Targets artifact from https://triage.velocidex.com/docs/windows.triage.targets/ or simply use the built in Server.Import.Extras artifact to automatically download and import the latest version.

The artifact contains many adaptive rules, for example some of these are:

1. AdaptiveScheduledTasks: enumerates all scheduled tasks and attempts to acquire the commands run by them.
2. LnkTargets: Search for lnk files and attempt to download their targets. lnk files are common infection vectors.
3. PrefetchBinaries: enumerates all prefetch files and captures the executables.
4. PsList: enumerates all running processes and captures their respective binaries.
5. Services: enumerates all installed services and captures their binaries.

All of the adaptive rules are triggered by the meta-target _Live . So all a user needs to do is to select the _Live target and collect the artifact (Usually the _Live target is selected in addition to more traditional targets like _SansTriage or _BasicCollection).

Adaptive rules may substantially increase the number of files collected. However, we rarely care about legitimate binaries which are often signed. The way we choose if a file is to be collected is termed the Collection Policy.

There are a few choices:

1. ExcludeSigned: This is the default policy. We collect all adaptive targets, except if they are a trusted signed binary. Most of the time, signed binaries are trusted already and there is no benefit in collecting them. In practice this reduces the collection size substantially.

2. HashOnly is used to simply take the hash of the file but not to collect the file itself. This setting is useful when the client is connected and available so interesting files may be fetched at a later stage. The hashes and file stats are enough to indicate if the target files are still present on the system.

3. AllFiles Just collect all files. This is not recommended for adaptive collections as it will also collect system files and signed/trusted binaries.

Let’s look at the result of collecting the PrefetchBinaries target:

Collecting the PrefetchBinaries target will execute the standard Velociraptor Windows.Forensics.Prefetch and capture all the usual fields that artifact returns (such as run times and other prefetch related fields). Additionally, Velociraptor will attempt to acquire each target if possible (if the file still exists on disk at that location).

The Windows.Triage.Targets artifact automatically captures metadata such as modified timestamps, hashes and authenticode status for executables.

In addition to collecting the prefetch binary targets, we also receive all the usual output from collecting the Windows.Forensics.Prefetch artifact, saving us from re-collecting it later.

Another example is collecting the LnkTargets rule. This rule analyzes Lnk files (shortcuts) to extract their targets.

Lnk files are often created when the user edits them on the desktop, so capturing the targets of Lnk shortcuts can capture strong evidence of user activity. In this case we see a number of files that were edited with Notepad and were captured (if they are still present).

The Registry hunter

Registry analysis is a powerful and critical tool in the Digital Forensics arsenal. The Windows registry contains a wealth of information about system state, while many persistence techniques leave traces in the registry.

Traditionally, registry analysis is performed on the raw registry hives (collected using for example the KapeFiles artifact). These files are analysed using tools such as Reg Ripper or Registry Explorer . These tools operate on collected registry hives and contain rules designed to extract specific pieces of information from various registry keys.

Recently, The Velociraptor team has started the Registry Hunter project. This project aims to develop a fully featured rule based registry parser, and contains a large (and growing) number of rules . Many of the rules in the registry hunter also attempt to uncover evidence of persistence through various registry artifacts.

While the registry hunter can operate on collected hive files, it can also operate on the live system using a mixture of API based registry access and raw hive parsing. Therefore, the registry hunter running on a live system is ideally positioned to perform Adaptive Collection as described above.

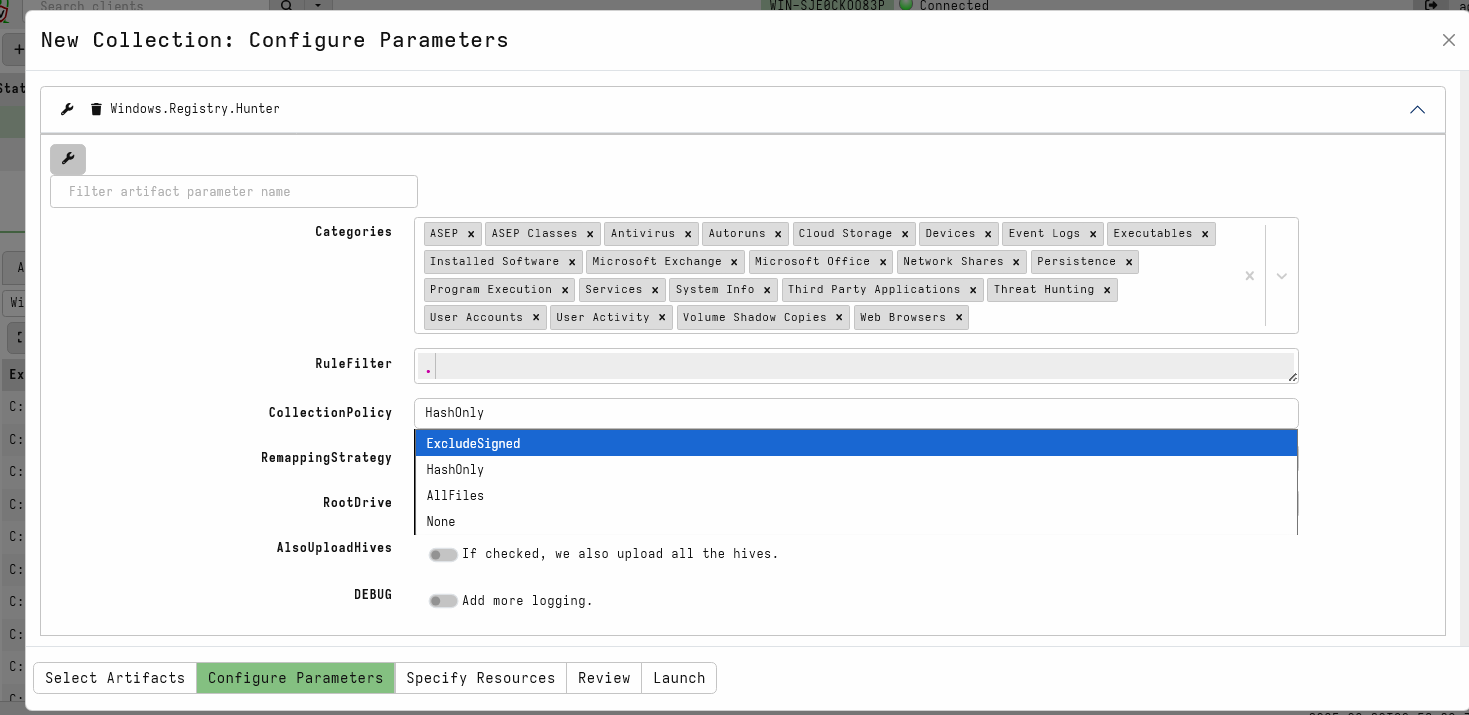

The Registry Hunter now has a CollectionPolicy parameter for rules that implement adaptive rules. By default these rules simply hash the binaries uncovered in the registry, but they can collect them as well.

For example, consider the Scheduled Tasks (TaskCache) rule from the Registry hunter. This rule analyses the registry to extract the scheduled tasks (as opposed to analysing the XML files in the Windows/System32/Tasks directory).

When the task action launches a binary, the Registry Hunter is able to inspect the disk to check on the launched binary.

For an offline collector, it is recommended to use both the Registry Hunter and the Triage Targets artifacts together.

Optimizations

Adaptive collection is more expensive than simple file collection, as it requires Velociraptor to parse forensic artifacts on the endpoint and attempt to locate the files referred by them on disk.

While parsing the forensic artifacts on the endpoint is usually very quick due to Velociraptor’s optimized VQL engine, the act of hashing and collecting all the additional files can increase the time and storage requirements to collect the triage artifact.

Most of the time, adaptive collection helps us to answer the following questions:

1. Were the target files present on the endpoint at collection time?

   This information is important as many forensic artifacts record evidence of execution for files that were already deleted. In this case, it won’t help us to go back to the endpoint and re-collect the target file - it is deleted already!

2. What were those files?

   Some of the files that were indicated by the forensic artifacts may be significant for further investigation - for example, malware payloads may need to be collected etc.

   However not all files are unique to the investigation. For example, most files that are executed on the endpoint are legitimate binaries. We rarely need to collect those, and even if we need them later, legitimate binaries can usually be acquired in other ways (for example Virus Total).

Adaptive collections need to strike a balance between collecting everything and collecting the most useful files.

Guidelines for using adaptive collections

For offline collections, it is usually not possible to go back to the endpoint to perform a second collection. In this case it might be better to err on the side of collecting more than less.

1. Use ExcludeSigned Collection Policy
2. Consider using the TrustedPathRegex to eliminate system files.
3. Set conservative values for MaxFileSize to avoid capturing very large adaptively, such as very large executables.
4. If you are concerned about endpoint resource load, consider imposing CPU limits

For live connected clients, it is useful to run an adaptive collection with HashOnly collection policy:

1. Bulk adaptive targets are not collected so this reduces needed storage and bandwidth, as well as speeding the collection significantly.
2. The artifact will still attempt to locate and hash the targets which tells us if the files are still present on the endpoint. We can always issue a new collection for important files.
3. If you dont use the hashes, considering setting MaxHashSize to a small number. This will speed up the artifact and still record if the file itself is present (and its timestamps).

Conclusions

The idea behind Adaptive Collection is to automate the analysis as much as possible, and make collection decisions based on this automated initial analysis pass. We need to weigh up how likely it is that the discovered files be useful for further analysis.

It not 100% reliable - sometimes there will be interesting binaries present inside the Windows directory which the artifact will skip. This might necessitate the investigator to go back and retrieve it.

You can think of forensic acquisition as a spectrum: at one extreme a bit-for-bit copy of disk and memory, will surely capture most of the data we are interested in. However, this is not usually practical due to large systems, storage and network bandwidth.

At the other extreme, a triage collection just captures some critical files, like event logs. This is usually insufficient to complete a full analysis of a case.

The Adaptive Collection is a middle ground - not as complete as a bit-for-bit copy, but a lot better than just collecting files blindly. By reducing the analyse/collect feedback loop, Velociraptor is able to speed up investigations and strike a better balance along the acquisition spectrum.

If you like to try these new artifacts, take Velociraptor for a spin ! It is available on GitHub under an open source license. As always please file issues on the bug tracker or ask questions on our mailing list velociraptor-discuss@googlegroups.com . You can also chat with us directly on discord https://www.velocidex.com/discord .
