I am very excited to announce that the latest Velociraptor release 0.75 is now available for testing.
In this post I will discuss some of the new features introduced by this release.
This release improves a number of GUI features.
Previously it was only possible to delete flows, clients, artifacts or hunts one at the time. However, in this release it is now possible to highlight a set of items by clicking the first item in the range, then pressing SHIFT, then clicking the last in the range.
This allows deleting many items at once from the GUI. The same process works for deleting multiple clients, multiple artifacts in the artifacts viewer, multiple notebooks, and multiple collections from a client.
As Velociraptor is used by more and more people, we are seeing many public artifact sources becoming widely available for users to add to their server. While this is great to see, it is sometimes overwhelming to see so many custom artifacts in the artifacts viewer mixed up into the same view.
Previously, we used a prefix to import artifacts so their names would
be distinct. For example, all artifacts coming from the artifact
exchange were given the Exchange prefix. This proved problematic in
practice because it made it difficult for artifacts to import other
artifacts by their name, when the name could depend on the way the
user imported the artifacts.
In this release, Velociraptor introduces the concept of a Tag on the
artifact. Tags are kept separately from the artifact itself, and can
be considered part of the artifact metadata.
You can add tags using the artifact_set_metadata VQL function, which is used in certain import artifacts. This allows grouping of similar artifacts.
The GUI will add a new search category for each tag to allow the user to easily see all artifacts that have the same tag.
In the above example, the artifacts imported through the
Server.Import.Extras artifact are tagged with the Extras tag. They
can all be seen together and deleted at once if needed (using the
multi-select method described above).
Velociraptor presents a lot of information in tabular form. This release adds keyboard navigation to all tables to make it easier to preview a lot of information quickly:
n, p page table forward and backwards.j, k move selection focus up or downhome, end page table to first or last page.Velociraptor is often used to collect large quantities of data from endpoints. This data appears in the form of either bulk data (e.g. file contents) or JSON data (e.g. the results of VQL queries).
This data can be quite large and new users often run out of disk space when starting to collect from large networks. In previous versions of Velociraptor, the server would store the data uncompressed on disk. This has some advantages such as being able to post process the data using an external script or program because the data is simply stored as flat files on the server.
However, this advantage comes at a massive cost in storage needs. It would be much better to store the data compressed on the server and only decompress the data as needed.
Because the Velociraptor server is light weight and needs to support a large number of endpoints, it is not practical to have the server itself compress the data as it arrives from the endpoints. Therefore in this release, the Velociraptor client is asked to compress data into chunks as it is transmitting the data in the first place. The server only needs to write the chunks down into storage without needing to decompress the data at all.
This new scheme actually makes the server faster, as it needs to write less data to storage (reduced IO costs), and does not require the server to perform expensive compression/decompression cycles. The client does not actually have to do additional work (as it always needs to compress data for network transmission anyway), so this scheme is an overall improvement in performance.
The above example shows a typical Windows.Triage.Targets collection
with the KapeFiles target on a test system collecting just under 2Gb
of data (mostly bulk files in this case). However, the actual storage
used on disk is around 300Mb representing a 85% storage saving.
Even higher compression ratios were observed with artifacts that
produce a lot of JSON output, like Windows.NTFS.MFT, since JSON data
is highly compressible.
The downside of this change is that the files on the server storage are no longer readable by external tools, and so any post processing artifacts that use the file_store() to obtain the underlying file are unlikely to work. If you need to get the uncompressed data you may use the copy() function to copy the file to a temporary file thereby uncompressing it.
Since the new compression scheme requires client support it will only work with 0.75 clients. If you do not want to enable compression you may change the configuration setting to “none”.
Velociraptor places a reasonable timeout on collections in order to avoid accidentally collecting too many files. This is necessary because often we do not really know what is on the endpoint before collection. For example, say we wanted to collect all browser artifacts from an endpoint. Sometimes, a single server may have hundreds or even thousands of users (e.g. a Terminal Server) and this artifact will end up collecting vast quantities of data, likely not targeted to the investigation.
For this reason, Velociraptor always places a timeout on collections, as well as an upload limit. The idea is to catch such accidents early.
Previously when a collection would reach its limits, the collection would be cancelled and the user would be faced with two choices: either refine the artifact to be more targeted and collect less data, or repeat the collection with larger timeout or upload limits.
If the user chose to repeat the collection, then all the previous data would need to be collected again (since it is a brand new collection).
In this release, Velociraptor offers Resumable Collections. This
feature is enabled by default for many artifacts that primarily
collect files (such as the Windows.Triage.Targets artifact).
In the above example the Windows.Triage.Targets artifact timed out
but it is reporting that there are 928 upload transactions remaining
(i.e. incomplete uploads that can be resumed). Clicking the Resume Uploads button will restart those uploads and set the collection back
into the running state.
Note that this may not always be safe. If the filesystem has changed
since the upload transaction started, the resumed file may not match
with the initial file. For example, supposed that the original
artifact searched for C:\Windows\*.exe and found 50 executable files
to upload, but when the collection was resumed, 10 of the previous
executables were removed and 10 more were added. The resumed
collection will not detect the new files and will fail to upload the
older files.
If you wish to use resumable uploads in your custom artifact, set the
UPLOAD_IS_RESUMABLE parameter to TRUE. This changes the upload()
function to become asynchronous and just queue an upload transaction
instead of waiting for the upload to complete.
Velociraptor allows users to run arbitrary VQL queries in notebooks. These queries run directly on the server and so may allow users to view any files or run any commands on the server itself.
In many higher security deployments there is a need to restrict access
to the server itself from Velociraptor users. Velociraptor already
offers an extensive user permission model, with users needing the
FILESYSTEM_READ permission to be able to read files on the server
filesystem.
Often it is necessary to provide users with this permission (for example to allow them to post process data using an external tool), but we still do not want to allow users to be able to read the entire server filesystem.
In this release it is possible to restrict the directories that VQL is allowed to read on the server using a configuration option .
The Lnk parser is used in many artifacts like
Windows.Forensics.Shellbags, Windows.Forensics.Lnk, and
Windows.Forensics.JumpLists.
The artifact is now more complete with support for many shellbag types.
The new notepad available in Windows 11 provides a lot of valuable forensic information. This is now implemented in Velociraptor based on research by ogmini .
Over time Velociraptor has spawned many sub-projects for curating and managing certain larger, more complex artifacts. As some artifacts became more complex and powerful, we moved them into separate projects so that they could be developed and managed independently of the main Velociraptor project. Splitting these off allows for independent release cycles, thus facilitating more rapid development and innovation.

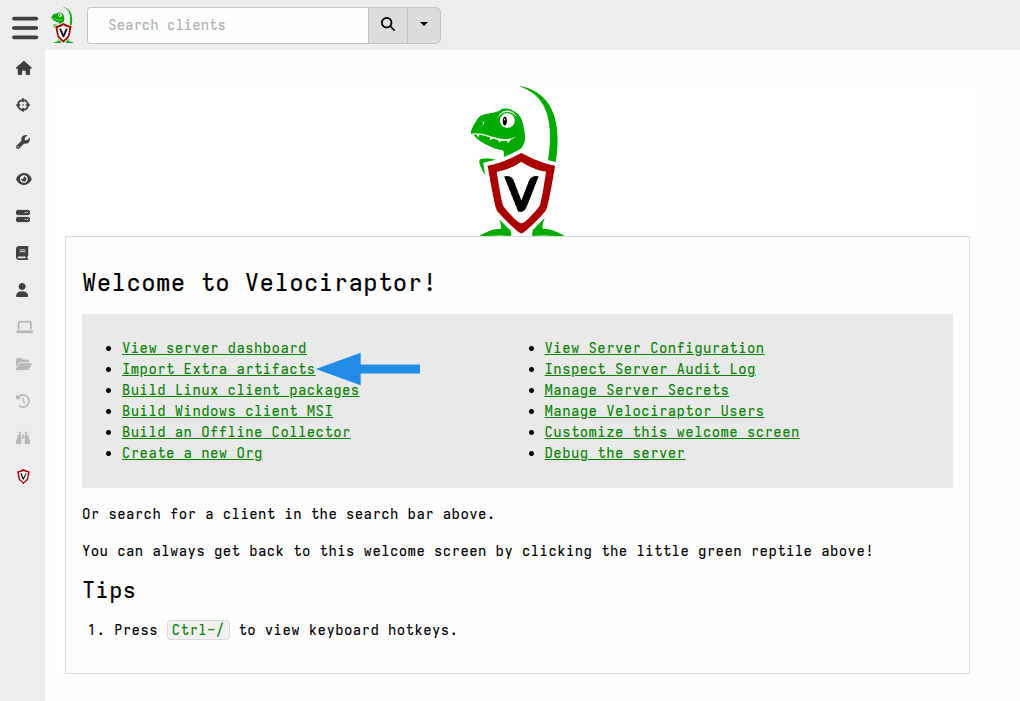

The following artifacts were removed from the built-in set, and are now
available to download using the Server.Import.Extras server artifact:
The Windows.KapeFiles.Targets artifact is now managed as part of
the Velociraptor Triage Project
.
This project intends to develop a set of rules that are used for specifying the collection of files from the endpoint.
Building on from the KapeFiles repository, this project now
contains the Windows.Triage.Targets artifact based on the old
KapeFiles project, and the Linux.Triage.UAC artifact based on
the UAC project.
The Generic.Forensic.SQLiteHunter artifact is now managed under the
Velociraptor SQLite Hunter Project
This aims to be a one-stop shop for all SQLite, ESE and many other
database-oriented forensic artifacts.
Velociraptor Sigma Project is the home of our artifacts that implement rapid Sigma-based triage and monitoring rules.
Velociraptor Registry Hunter Project is our project to develop sophisticated registry analysis modules.
The Velociraptor Artifact Exchange is our repository of community-contributed artifacts.
There are many more new features and bug fixes in the latest release. Please download the release candidate and give it a test and provide feedback.
If you like the new features, take Velociraptor for a spin ! It is available on GitHub under an open source license. As always please file issues on the bug tracker or ask questions on our mailing list velociraptor-discuss@googlegroups.com . You can also chat with us directly on discord https://www.velocidex.com/discord .
